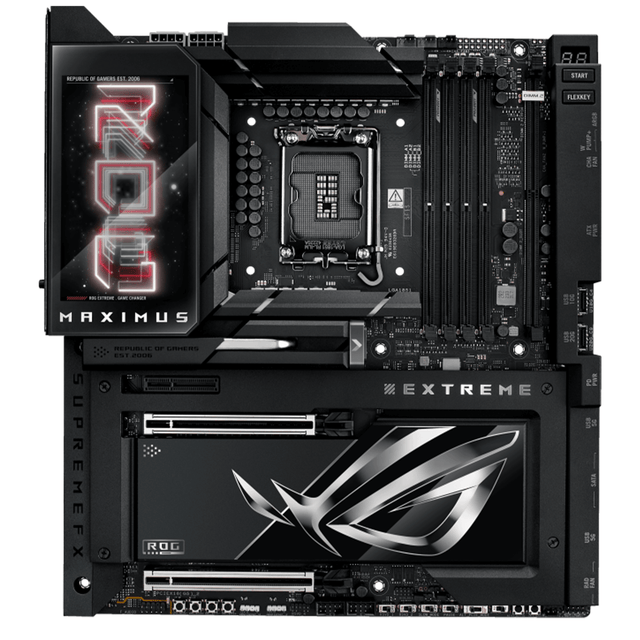

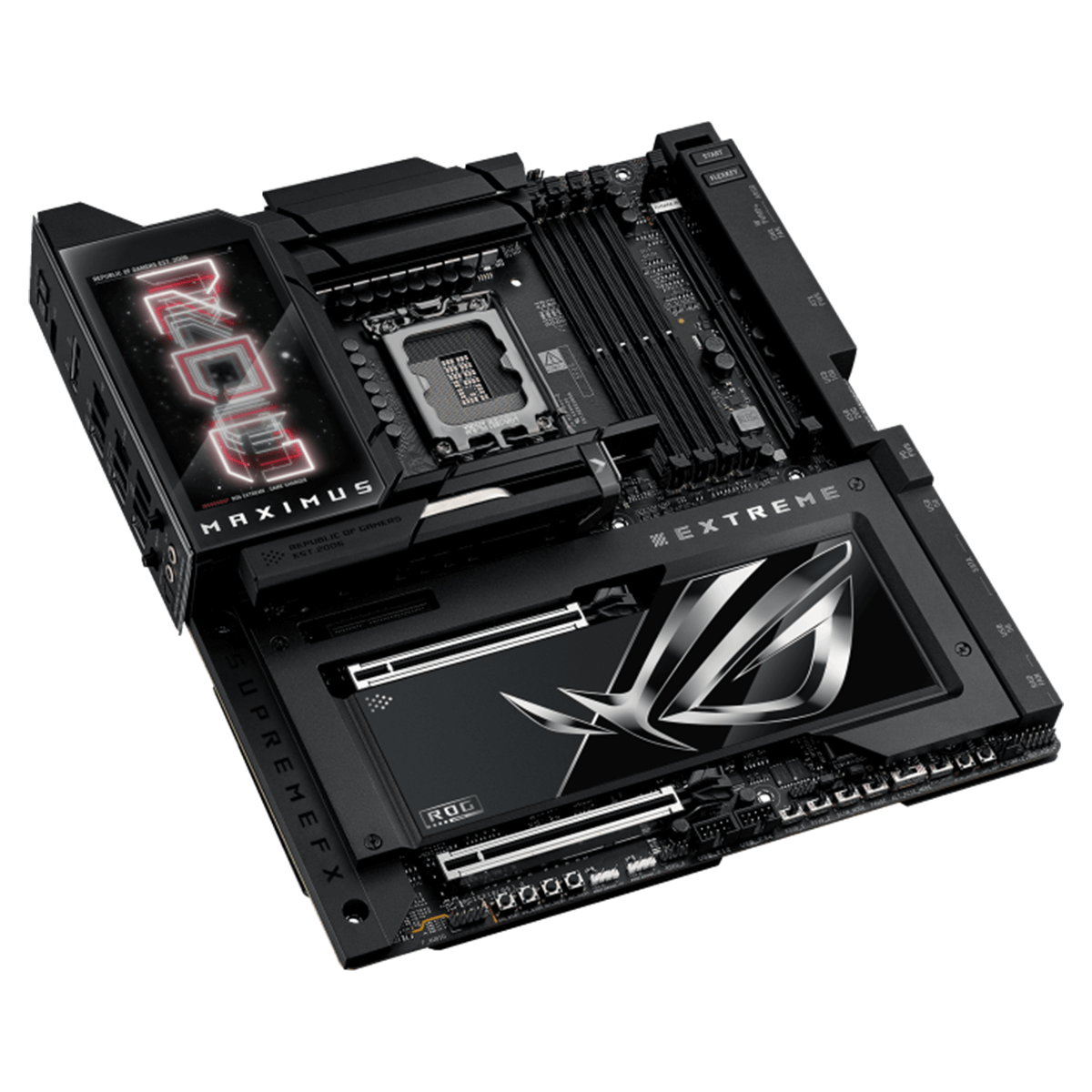

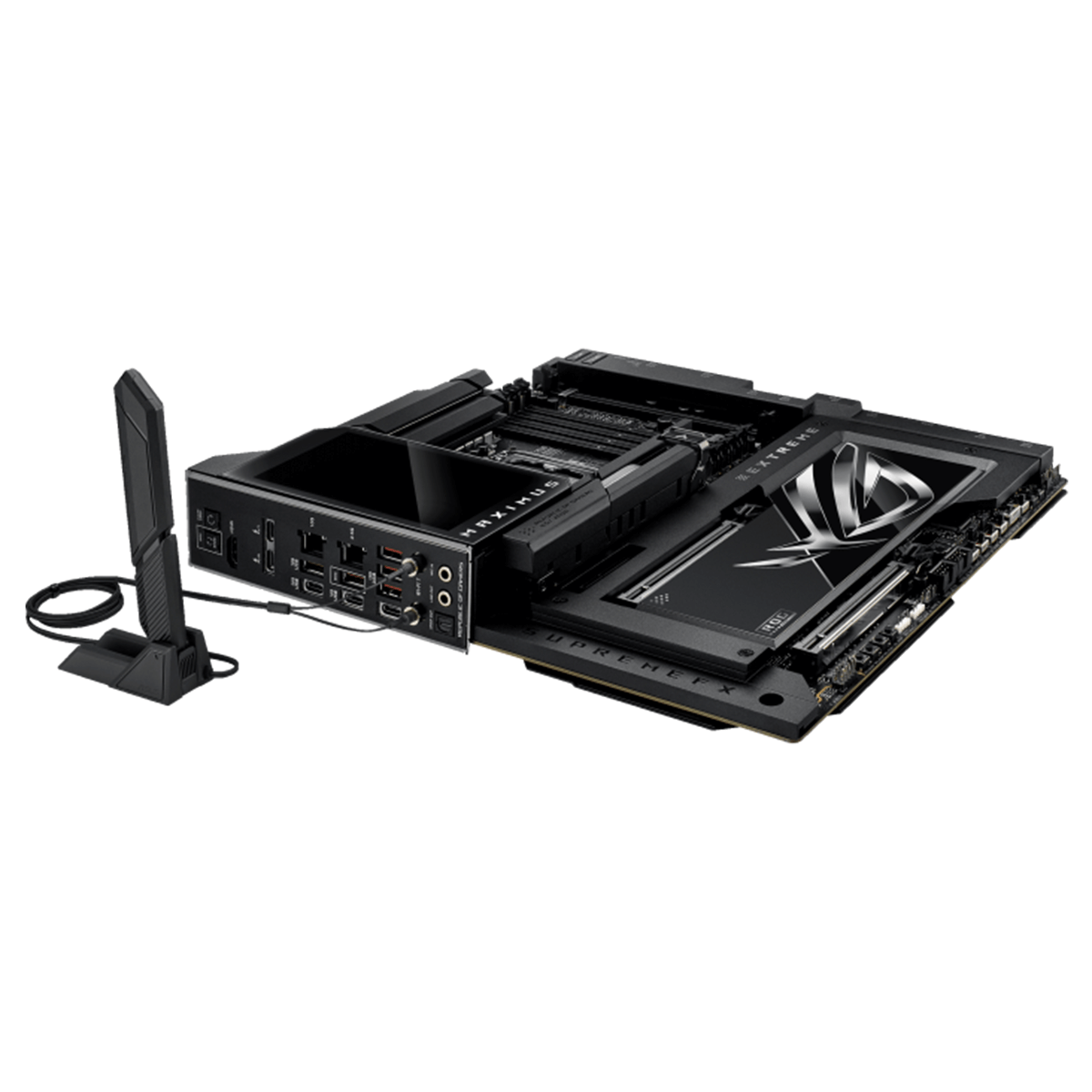

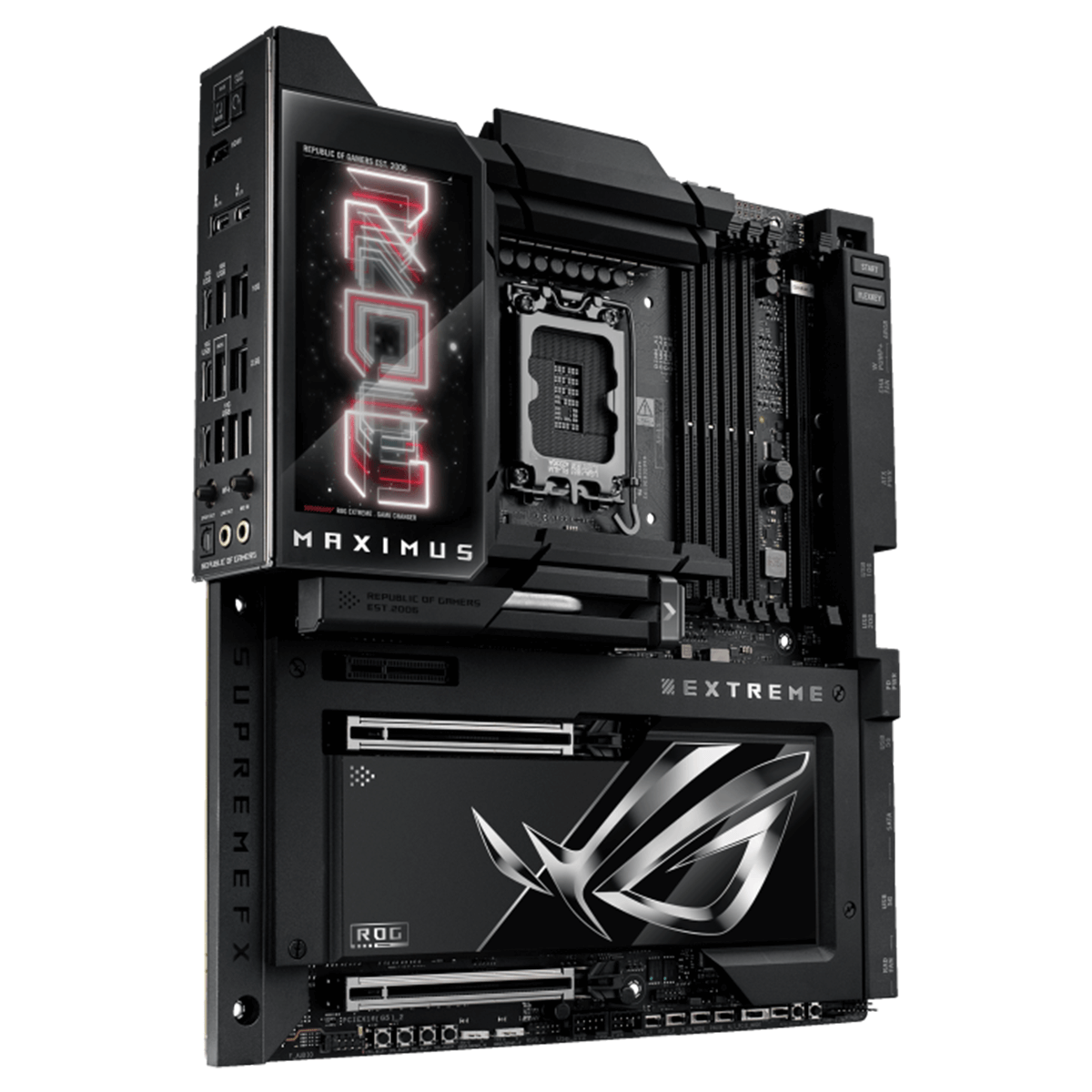

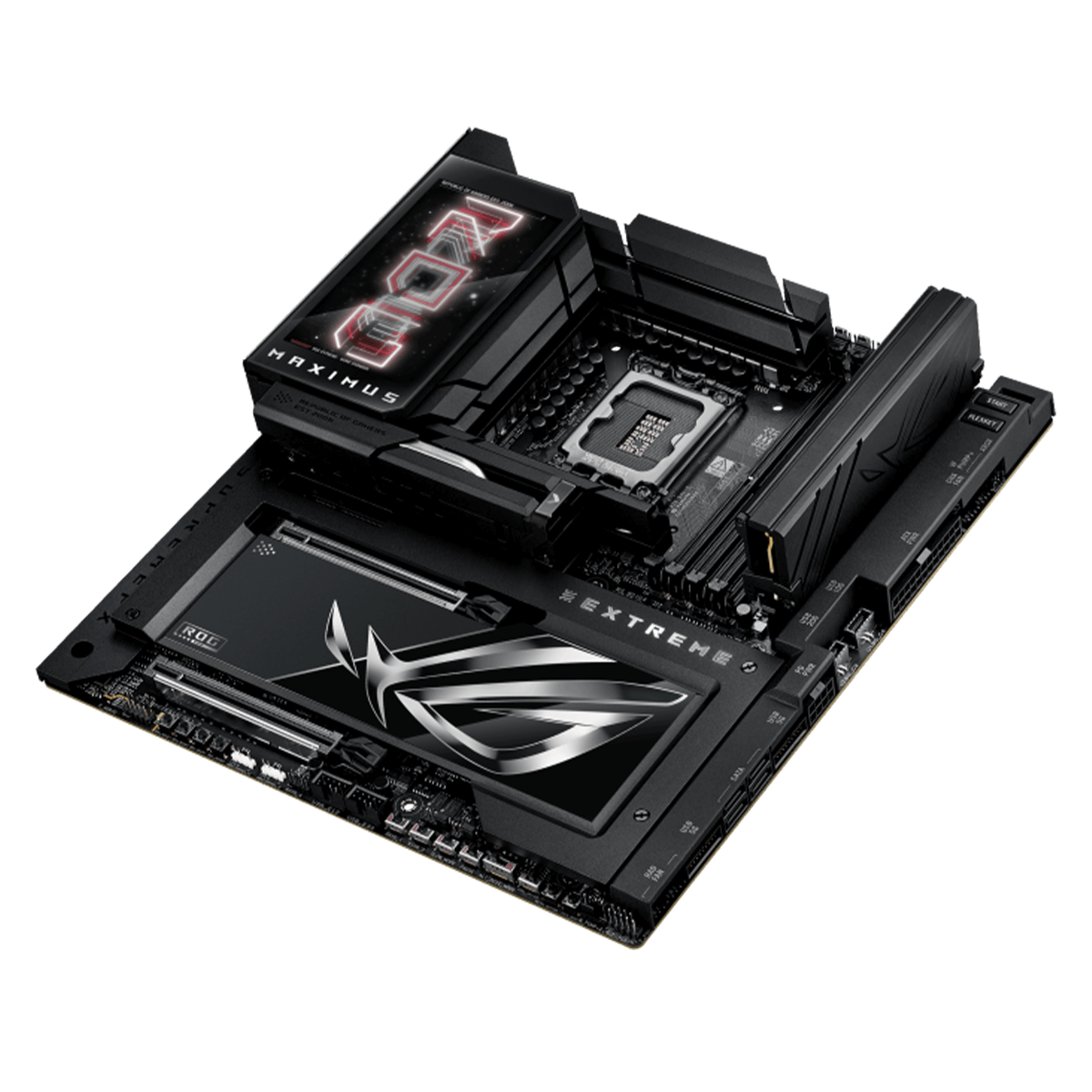

ASUS ROG MAXIMUS Z890 EXTREME Motherboard

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality, and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.

ASUS AI INTELLIGENCE

• AI NETWORKING II: AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
• AI COOLING II: Balance the thermals and acoustics of any build with a single click.

Performance OVERCLOCKING

• NPU BOOST: The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
• DIFFERENTIAL SENSING: Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

Performance MEMORY

• NitroPath DRAM Technology:
  NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinforced DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
• DIMM FIT:
  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
• DIMM FLEX:
  DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.
• AEMP III:
  ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

ROG Ultimate Power Solution

• 24(110A)+1(90A)+2(90A)+2(80A) Power Stages:
• 8 + 8-pin ProCool II power connectors: Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
• 10K black metallic capacitors:
  Input and output filtering is provided by solid-polymer capacitors rated for high operating temperatures.
• MicroFine alloy chokes:
  Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cooling

• VRM and aluminum I/O heatsink:
  A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
• High-conductivity thermal pads:
  Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
• 3D VC M.2 Heatsink:
  The 3D vapor chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalization plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.
• M.2 heatsinks and backplates:
  Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four onboard M.2 slots have dedicated backplates for additional heat dissipation.
• Chipset heatsink:
  A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

FOUR Onboard M.2 Slots

The ROG Maximus Z890 Extreme features four onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the other offers still-impressive 8 GB/s over PCIe 4.0 interfaces.

ROG M.2 POWERBOOST:
ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all four onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.

PCIe 5.0 EXPANSION SLOT:
Both of the x16 expansion slots offer incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and both slots can be released easily with PCIe Slot Q-Release Slim.

WIFI 7:
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6, thanks to tech like 320MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.

2.5Gb ETHERNET:
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5Gbps Ethernet.

10Gb ETHERNET:
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Marvell® Aqtion 10Gbps Ethernet.

TWO THUNDERBOLT™ 5 TYPE-C® PORTS:
Thunderbolt™ 5 supports up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. External display support reaches up to 8K resolution with DSC. Please see specifications for more details.

ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL CONNECTORS:
The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W.

SupremeFX:
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.

UEFI BIOS:
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
