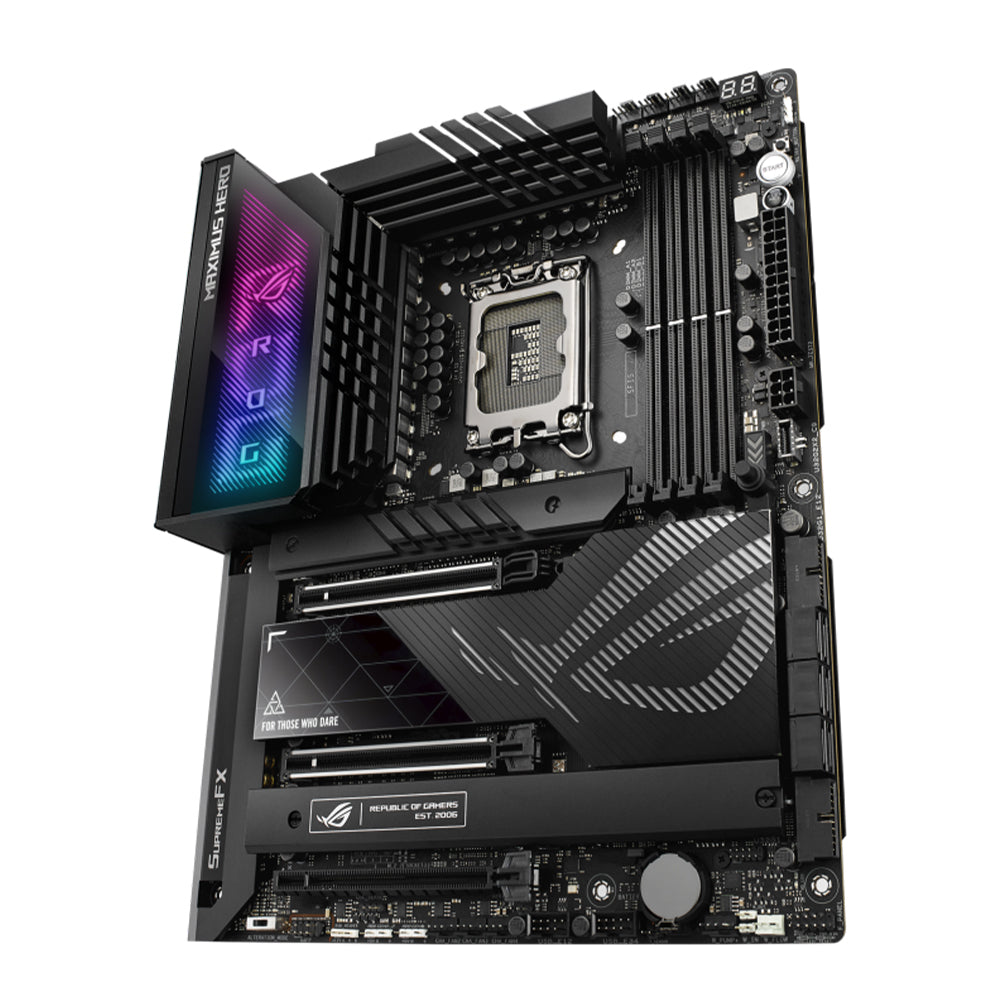

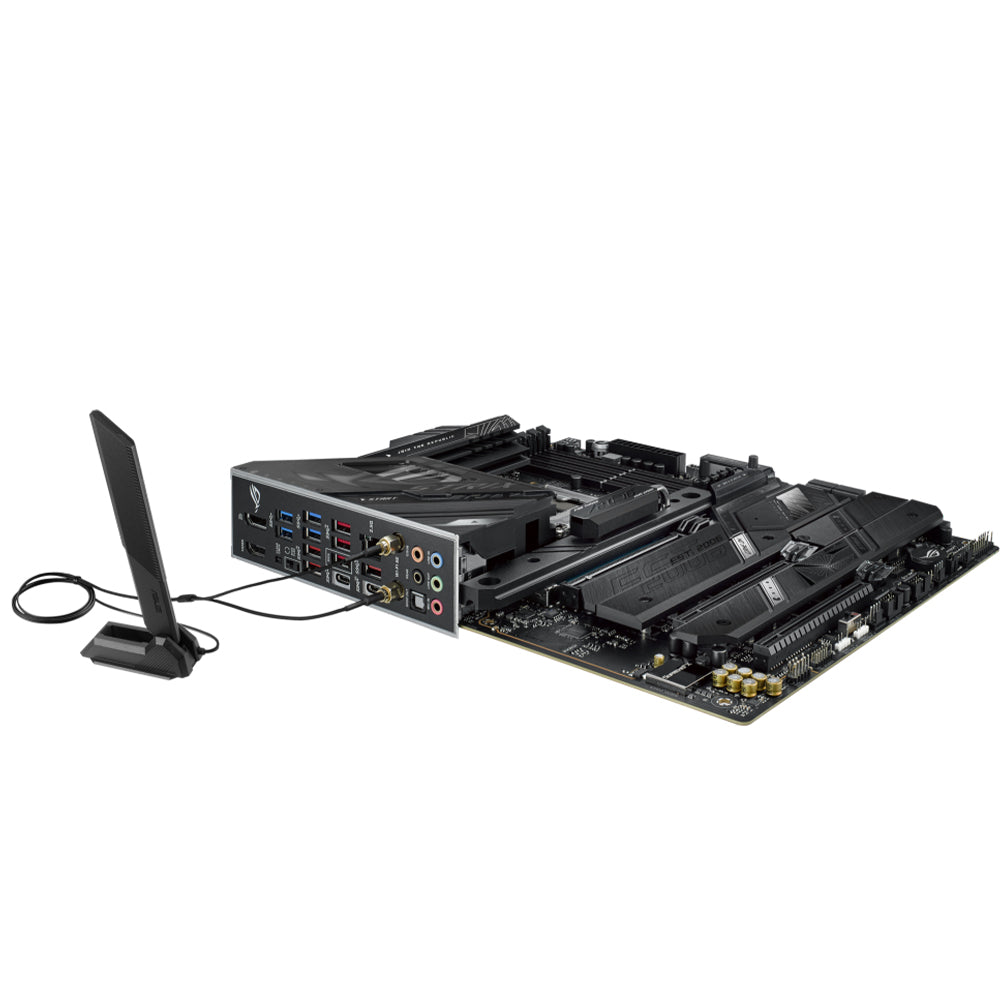

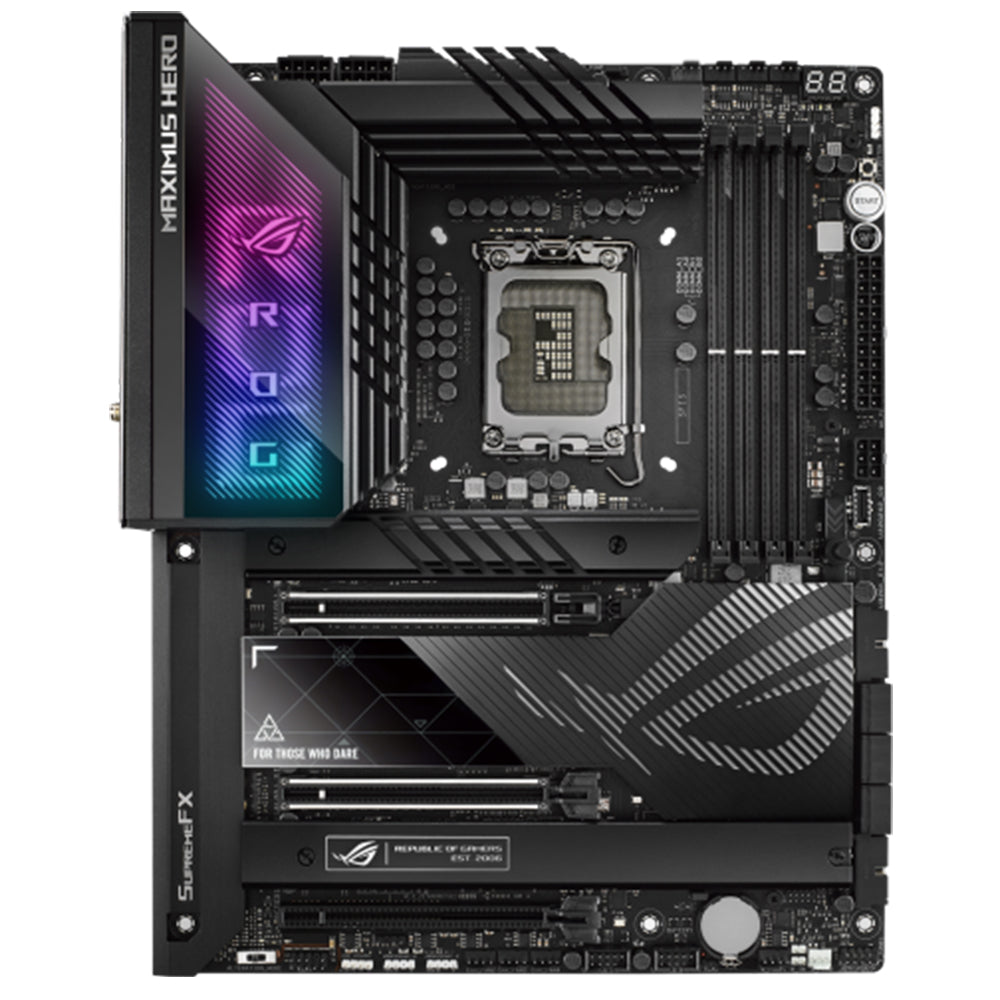

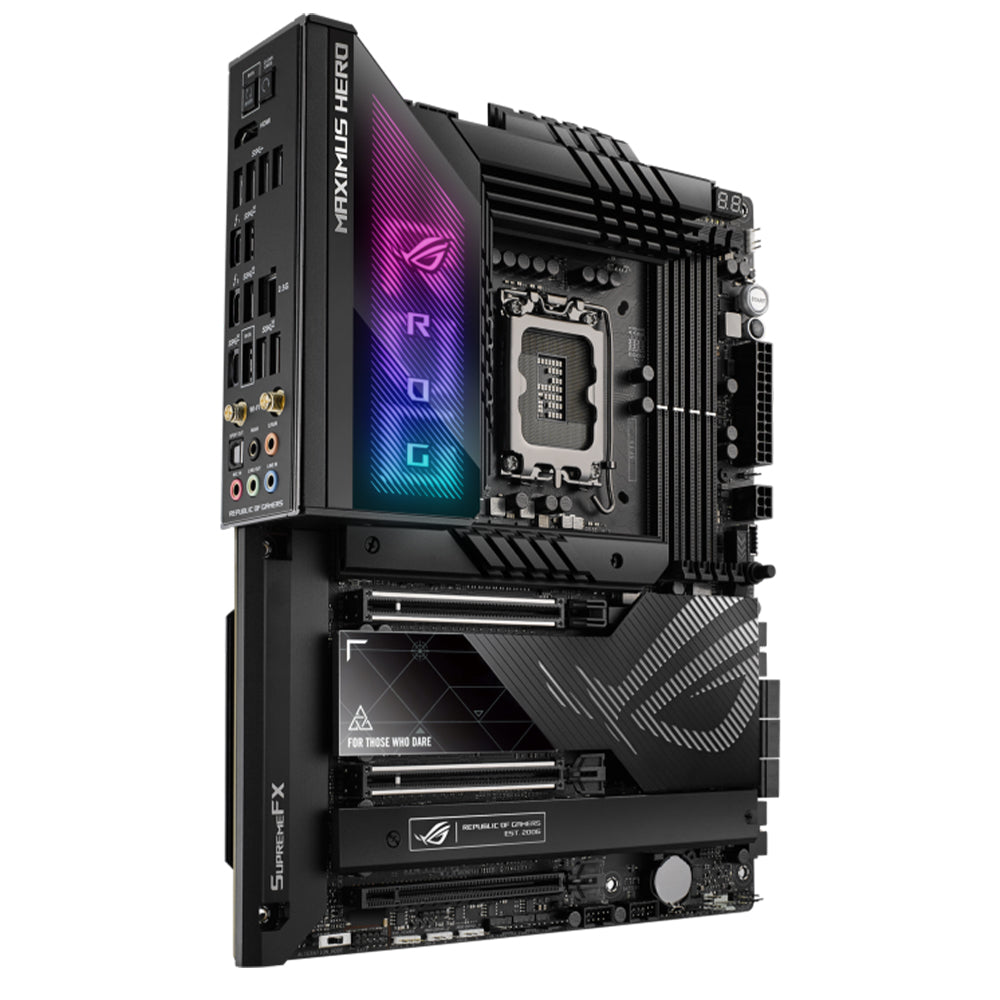

ASUS ROG MAXIMUS Z790 HERO DDR5 Gaming Motherboard Intel LGA1700

ROG MAXIMUS Z790 HERO

Buffed and ready with more power, robust cooling, and flexible I/O to scale up your rig at will. The ROG Maximus Z790 Hero puts it all at your disposal together with an arsenal of features and utilities to truly express the PC builder, overclocker, and gaming hero in you.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

DIFFERENTIAL SENSING

Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z790 Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

TEAMED POWER ARCHITECTURE

Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance

DDR5 DOMINATION

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Maximus Z790 Hero, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

AEMP II

ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Maximus Z790 Hero to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.

ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.

PCIE 5.0

Fully embracing the new standard, the ROG Maximus Z790 Hero offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

TWO THUNDERBOLT 4 TYPE-C® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.

USB 3.2 GEN 2X2 TYPE-C® FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+

USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60W*.

GROW YOUR GAMING WORLD WITH AURA SYNC

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

2.5G ETHERNET

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

SUPREMEFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an integrated ESS® ES9218 QUAD DAC capable of reaching -115dB THD+N for superior front-panel output. The combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.

THERMAL MANAGEMENT

An extensive array of headers line the ROG Maximus Z790 Hero for precise cooling control and monitoring.

Multiple temperature sources

Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.

4-pin fan headers

In addition to the pair of CPU fan headers, the Maximus Z790 Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.

AIO pump header

An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setup

VRM and aluminum I/O heatsink

A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

M.2 heatsink and backplates

Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard slots has a dedicated backplate for additional heat dissipation.

High-conductivity thermal pads

Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.

Solid steel backplate

A plate of electro-galvanized steel strengthens the spine of the ROG Maximus Z790 Hero to prevent bending.

Chipset heatsink

A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
