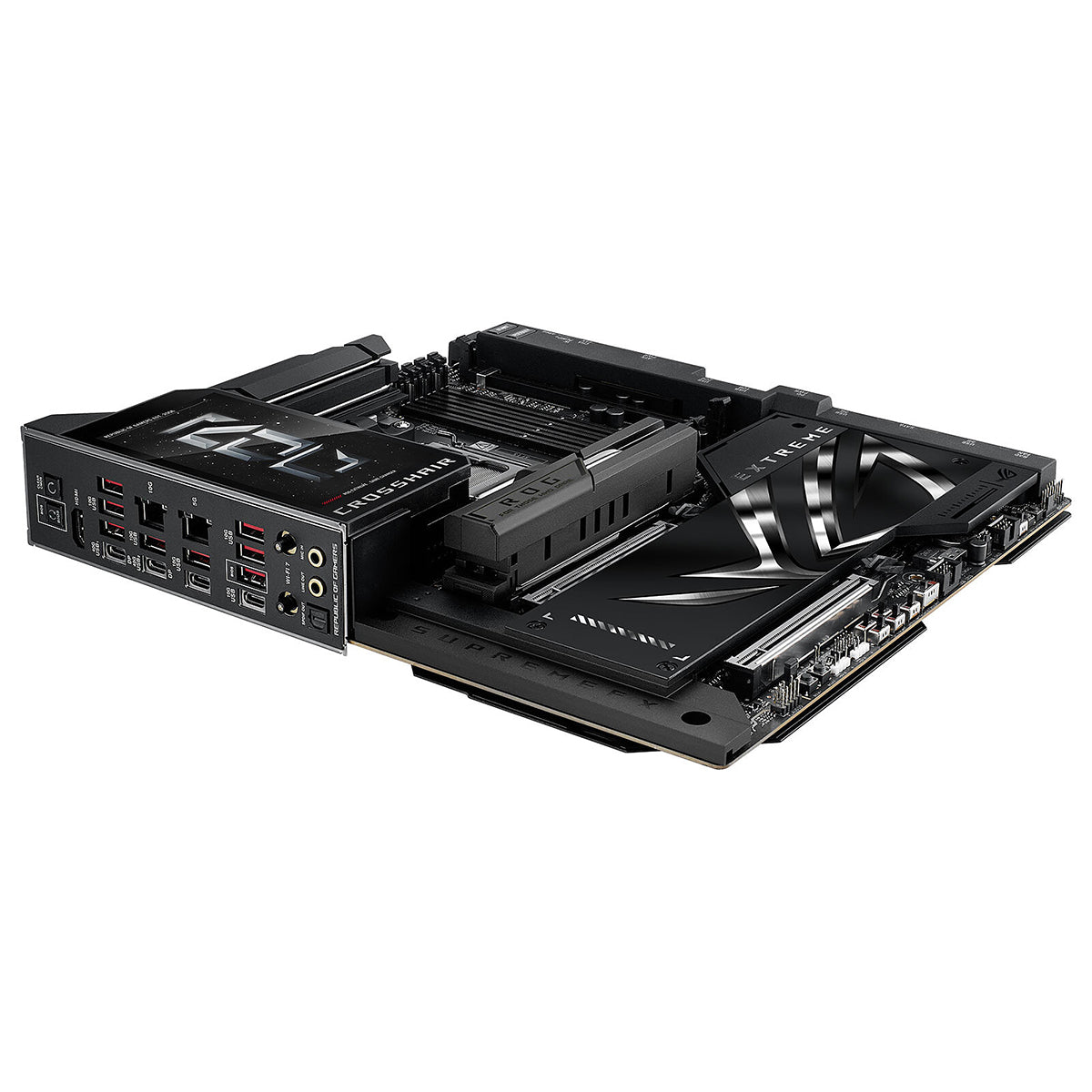

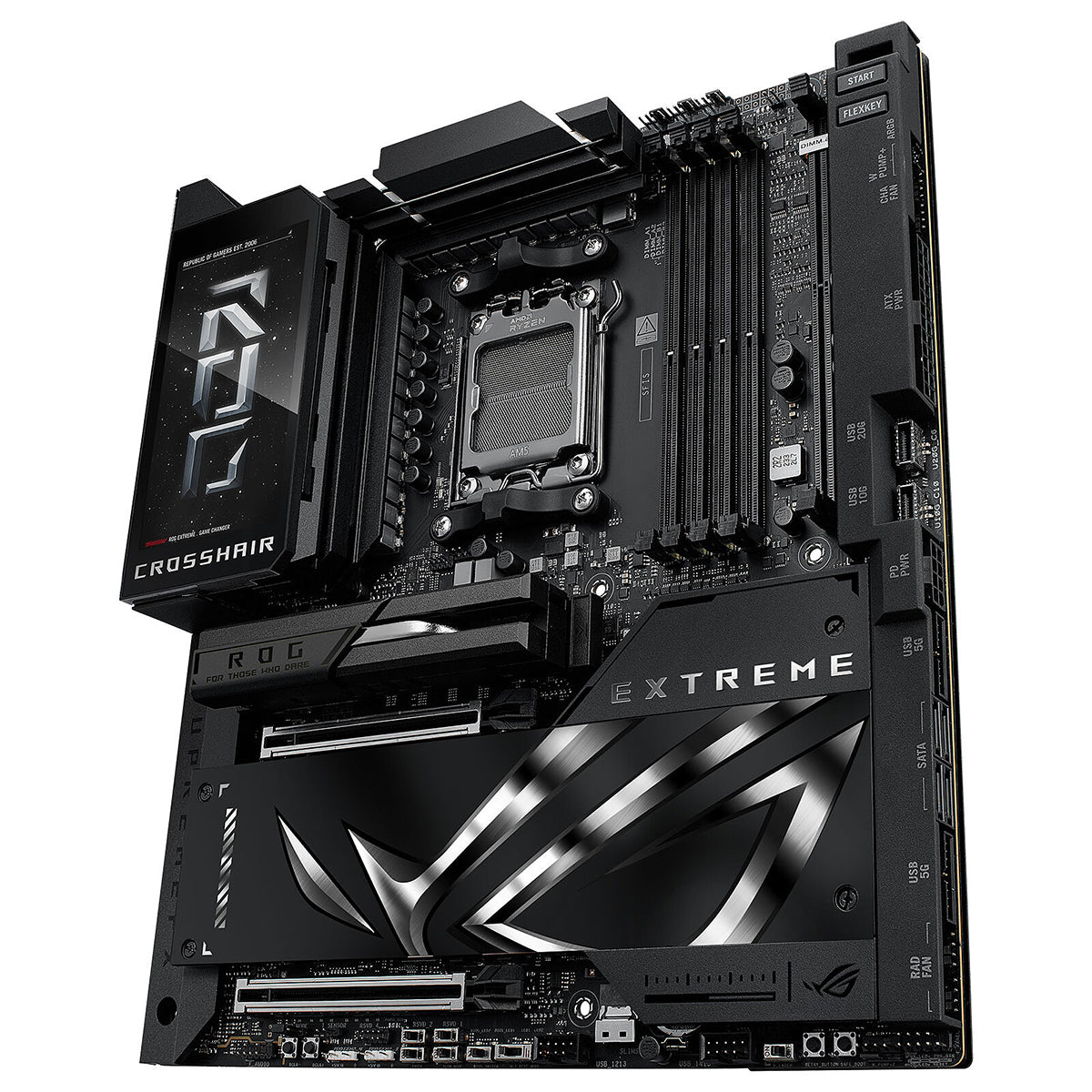

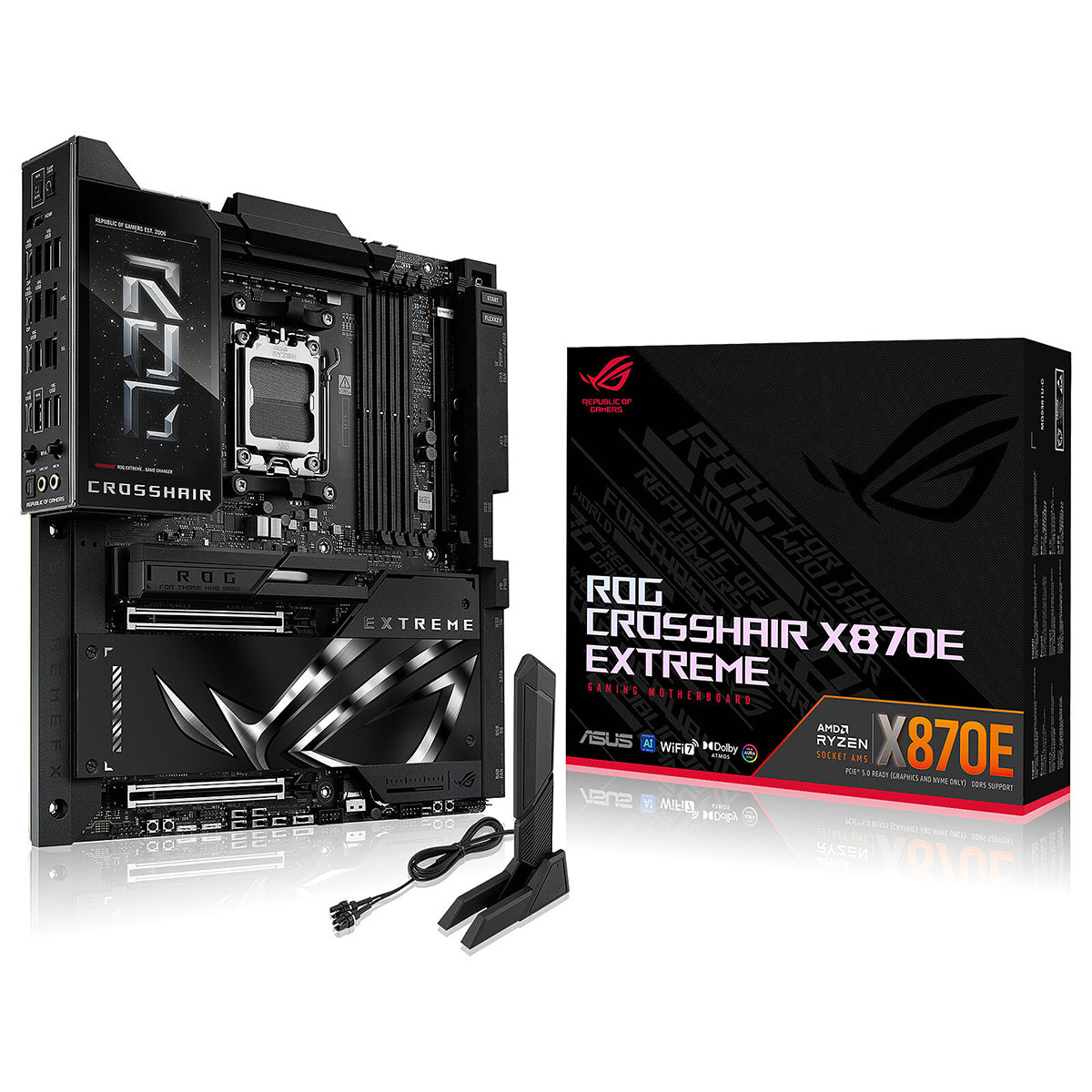

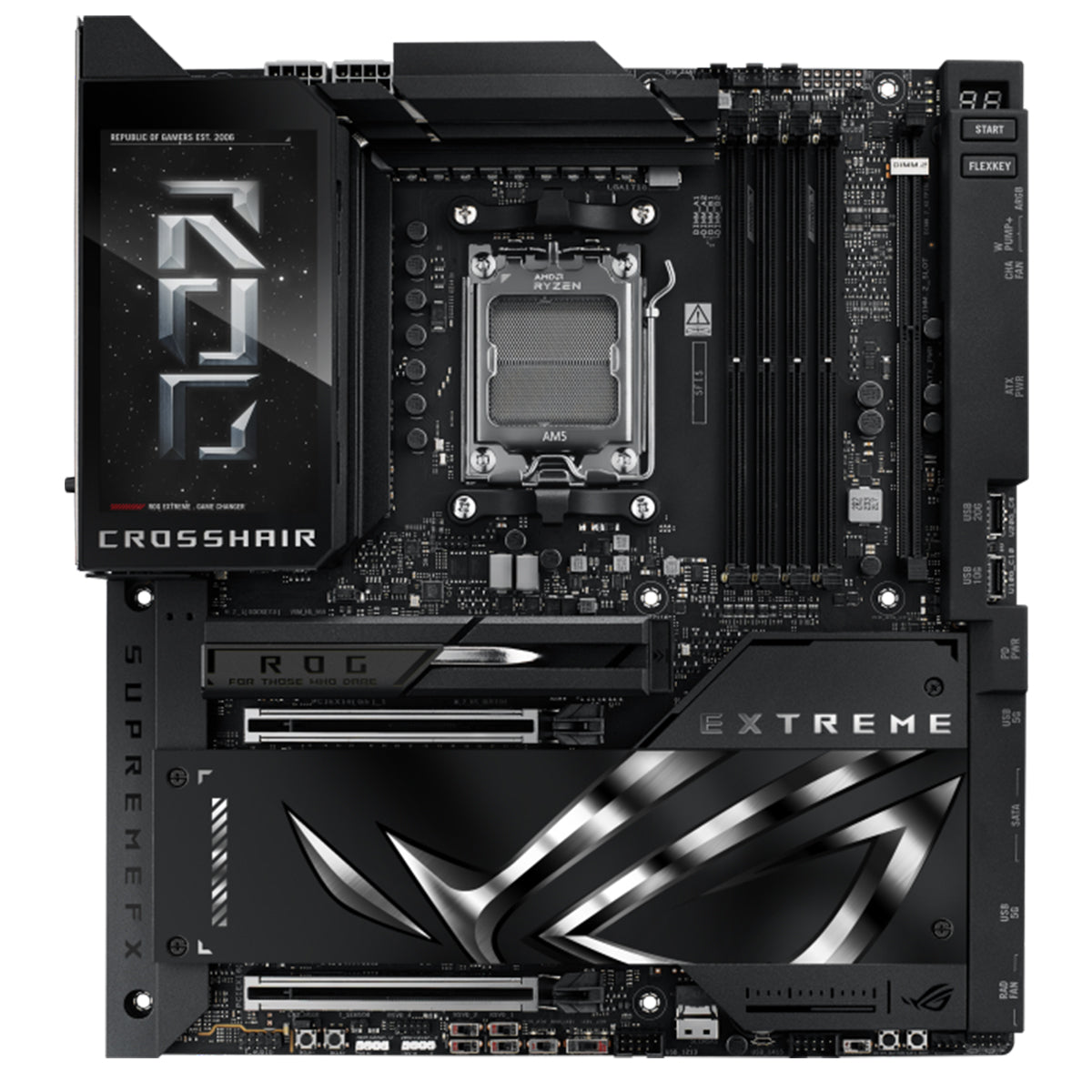

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
Specifications
Specifications
| Model | ROG CROSSHAIR X870E EXTREME |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* *Refer to ASUS support site for CPU support list |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max 256GB DDR5 Supports 8200+MT/s (Ryzen™ 9000), 9000+MT/s (Ryzen™ 8000), 8000+MT/s (Ryzen™ 7000) ECC and Non-ECC, Un-buffered DIMM Dual Channel Architecture Supports AMD EXPO™, ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology |
| Graphics | 1 x HDMI 2.1 port (4K@60Hz) 2 x USB4® (40Gbps) Type-C® ports with DisplayPort 1.4a support (max 4K@60Hz) *Graphics specifications may vary by CPU |
| Expansion Slots | 2 x PCIe 5.0 x16 slots (Ryzen™ 9000 & 7000), supports x16 / x8x8 / x8x4x4 modes 2 x PCIe 4.0 x16 slots (Ryzen™ 8700/8600/8400) 2 x PCIe 4.0 x16 slots (Ryzen™ 8500/8300) *Refer to ASUS PCIe bifurcation table for detailed slot modes |
| Storage | Up to 5 x M.2 slots + 1 x SlimSAS connector + 4 x SATA 6Gb/s M.2_1~3 support PCIe 5.0 x4 (Ryzen™ 9000/7000), PCIe 4.0 x4 (Ryzen™ 8000) DIMM.2_1 & DIMM.2_2 via ROG Q-DIMM.2, PCIe 4.0 x4 SlimSAS connector supports PCIe 4.0 x4 via SFF-8654 adapter (sold separately) |
| RAID Support | AMD RAIDXpert2 Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
| Ethernet | 1 x Realtek 5GbE 1 x Marvell AQtion 10GbE ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 2x2 (802.11be), 2.4/5/6GHz, up to 6.5Gbps Bluetooth v5.4 *Wi-Fi 7 requires Windows 11 24H2 or later |
| USB | Rear: 2 x USB4 Type-C (40Gbps), 10 x USB 10Gbps (8 Type-A + 2 Type-C) Front: 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-C, 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports) USB Type-C PD max 5V/3A (up to 60W with PCIe cable installed) |
| Audio | ROG SupremeFX 7.1 Surround Audio (ALC4082) Supports 32-bit/384kHz playback front panel ESS ES9219 QUAD DAC, LED-illuminated jacks, Rear Optical S/PDIF out High SNR: 120dB playback, 110dB recording |

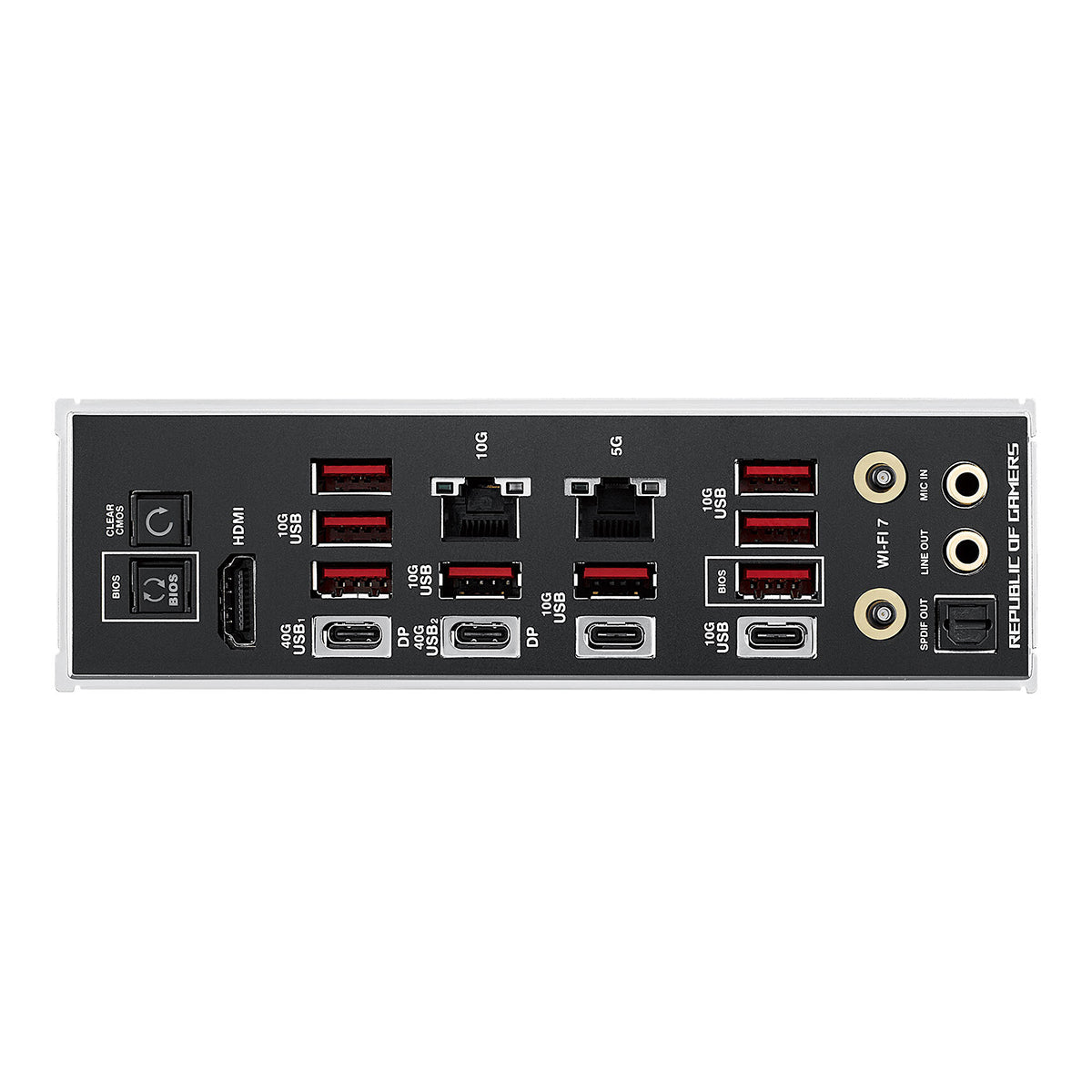

| Back Panel I/O | 2 x USB4 Type-C, 10 x USB 10Gbps (8 Type-A + 2 Type-C), 1 x HDMI, 1 x Wi-Fi module 1 x Realtek 5GbE, 1 x Marvell 10GbE 2 x LED audio jacks, 1 x Optical S/PDIF out, BIOS FlashBack™ button, Clear CMOS button |
| Internal I/O Connectors | CPU & Chassis Fans: 1 x CPU, 1 x CPU OPT, 2 x Chassis, 2 x Radiator, 2 x W_PUMP+, 1 x VRM Fan Power: 1 x 24-pin, 2 x 8-pin +12V CPU, 1 x 8-pin PCIe Storage: 3 x M.2 slots, 1 x DIMM.2 (2 x M.2), 1 x SlimSAS, 4 x SATA USB: 1 x USB 20Gbps, 1 x USB 10Gbps, 2 x USB 5Gbps headers, 2 x USB 2.0 headers |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Dual BIOS, Full Color 5" LCD Display, Front Panel USB 20Gbps w/ QC4+, Software Suite (ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert 4, GameFirst, AI Advisor, HWiNFO, Turbo Vcore, GlideX) |
| BIOS | 2 x 256Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey, FlexKey |
| Accessories | Cables, ROG Q-DIMM.2 w/ Heatsink, M.2 pad, Cooling Kits, ARGB headers, ROG Wi-Fi Q-Antenna, Q-connector, ROG logo plate, stickers, screwdriver, VIP card, M.2 Q-Slide, backplate rubbers, ROG Bottle Opener, USB drive with utilities, Quick start guide |
| Operating System | Windows® 11 |
| Form Factor | E-ATX, 12" x 10.9" (30.5 cm x 27.7 cm) |
