Built for Professional Creators
The ProArt Z890-CREATOR WIFI motherboard is designed to maximize the performance of the latest Intel® Core™ Ultra Processors (Series 2). Featuring a robust 16+1+2+2 power stage design, DDR5 memory support, PCIe® 5.0, dual Thunderbolt™ 5 ports, dual Ethernet, and WiFi 7, it delivers exceptional performance for content creation, professional workloads, and AI-powered computing.
Ultra-Fast Thunderbolt™ 5 Connectivity
Equipped with two Thunderbolt™ 5 Type-C® ports and one USB4®/Thunderbolt™ port, the motherboard provides up to 120Gbps bandwidth with Bandwidth Boost. It supports one 8K or dual 4K displays, daisy-chaining of up to five devices, and seamless connectivity for high-performance creative workflows.
Advanced Networking
Experience reliable, high-speed networking with built-in 10Gb Ethernet, 2.5Gb Ethernet, and the latest WiFi 7 technology. This combination ensures fast file transfers, low-latency networking, and stable wireless performance for demanding workloads.
Powerful Power Delivery
The motherboard features a 16+1+2+2 power stage design with premium components, including ProCool II connectors, Digi+ VRM control, superior chokes, and durable capacitors. Combined with an eight-layer PCB, it delivers stable power, improved efficiency, and enhanced thermal performance for high-core-count processors.
AI Performance Optimization
Exclusive ASUS AI technologies include AI Overclocking, AI Cooling II, AI Networking II, AI Advisor, and NPU Boost. These intelligent features automatically optimize CPU performance, cooling, network traffic, and AI processing to maximize system efficiency.
High-Speed DDR5 Memory Support
Designed for next-generation DDR5 memory, the motherboard supports ASUS-exclusive DIMM Fit, DIMM Fit Pro, and AEMP III technologies. These features optimize memory compatibility, stability, and overclocking performance for both entry-level and high-speed memory modules.
PCIe® 5.0 Expansion
Full PCIe® 5.0 support ensures compatibility with the latest graphics cards and high-speed storage devices, providing maximum bandwidth for gaming, professional rendering, and AI applications.
Easy PC DIY Features
Building and upgrading your system is easier with PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, and WiFi Q-Antenna. These convenient features simplify installation, maintenance, and component upgrades.
ProArt Creator Hub
The ProArt Creator Hub software provides centralized control for system monitoring, fan profiles, performance modes, and workflow optimization. It also includes professional color management tools such as Screen Color Picker, Image Color Extractor, and customizable Color Palette features.
Enhanced Productivity Features
Thunderbolt™ Share allows seamless dual-PC collaboration by sharing displays, keyboards, mice, storage devices, and files between two computers with ultra-fast Thunderbolt™ connectivity.
Comprehensive Connectivity
The motherboard includes multiple USB 20Gbps, USB 10Gbps, USB 5Gbps, HDMI® 2.1, DisplayPort™ In, SATA 6Gb/s ports, front-panel USB headers, BIOS Flashback™, and high-quality audio connectivity to support a wide range of professional peripherals.
Professional Design
Featuring a premium black finish with metallic gold accents, the ProArt Z890-CREATOR WIFI delivers a clean, elegant appearance that complements professional workstation builds while maintaining excellent functionality.
Reliable Performance
Engineered for long-term stability, the motherboard undergoes extensive reliability and durability testing to ensure dependable performance for creators, professionals, and workstation users.
Specifications
Specifications
| Model | ProArt Z890-CREATOR WIFI |
| CPU | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) DIMM Fit * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in. *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in. *** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) * 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z890 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled. |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 10 ports) 2 x Thunderbolt™ 5 ports (2 x USB Type-C®) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 port (1 x Type-A ) Front USB (Total 5 ports) 1 x USB 20Gbps (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*Audio Features - Gold-plated audio jacks- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

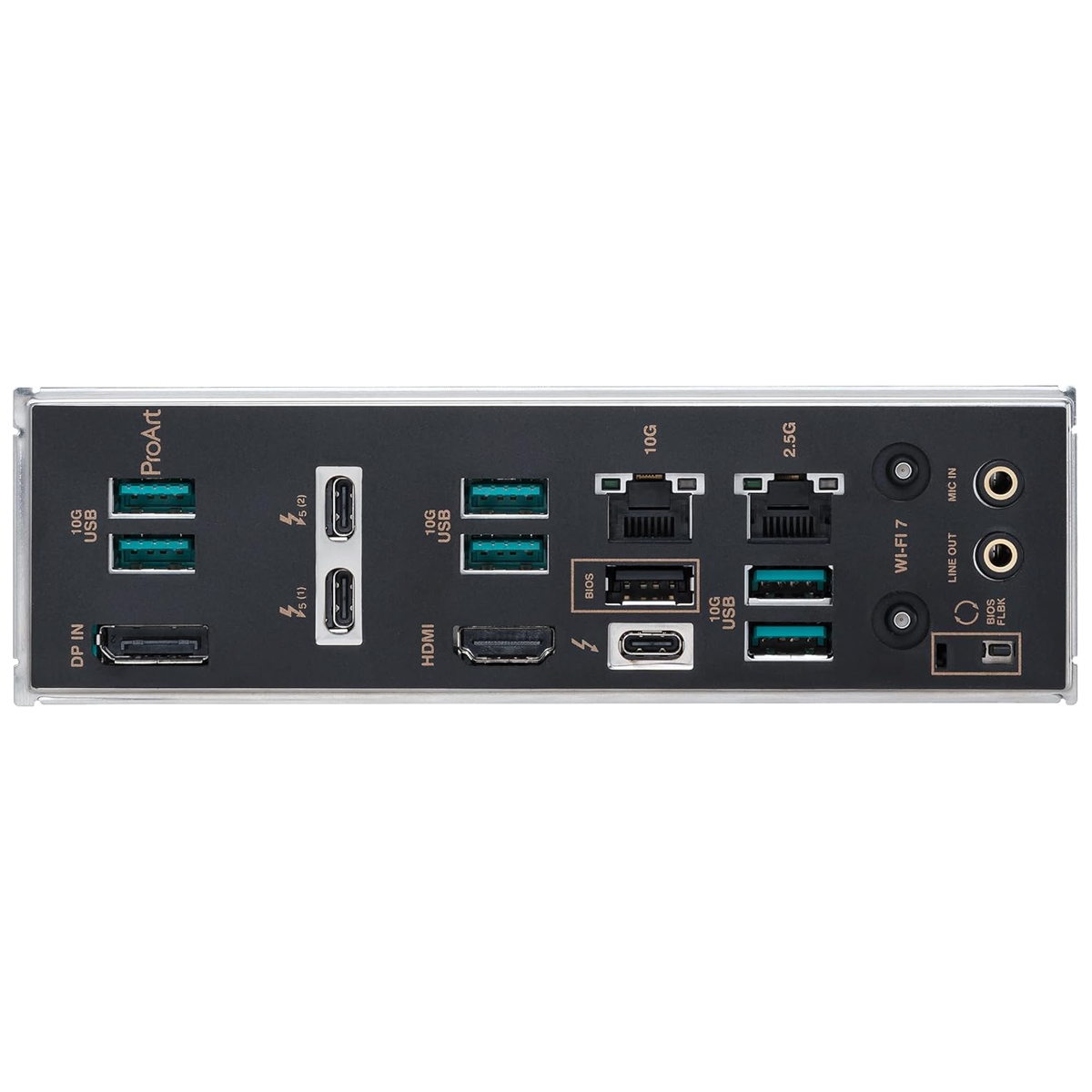

| Back Panel I/O Ports | 2 x Thunderbolt™ 5 USB Type-C® ports 1 x Thunderbolt™ 4 USB Type-C® port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x RTC Battery header 1 x Thermal Sensor header |
| Special Features | ASUS 5X PROTECTION III / - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/OASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink designASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box headers - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeDIMMAura Sync - Addressable Gen2 headersBespoke Motherboard Design & Business Focused Features - 24/7 reliability- Overcurrent protection |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator- Aura Sync - Fan Xpert 4ASUS Driver Hub ASUS GlideX ASUS CPU-Z CreatonFirst ProArt Creator Hub TurboV Core Thunderbolt™ Share USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkeyMemTest86 NPU BoostRemote Management Features IT Management software supported - ASUS Control Center Express(ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

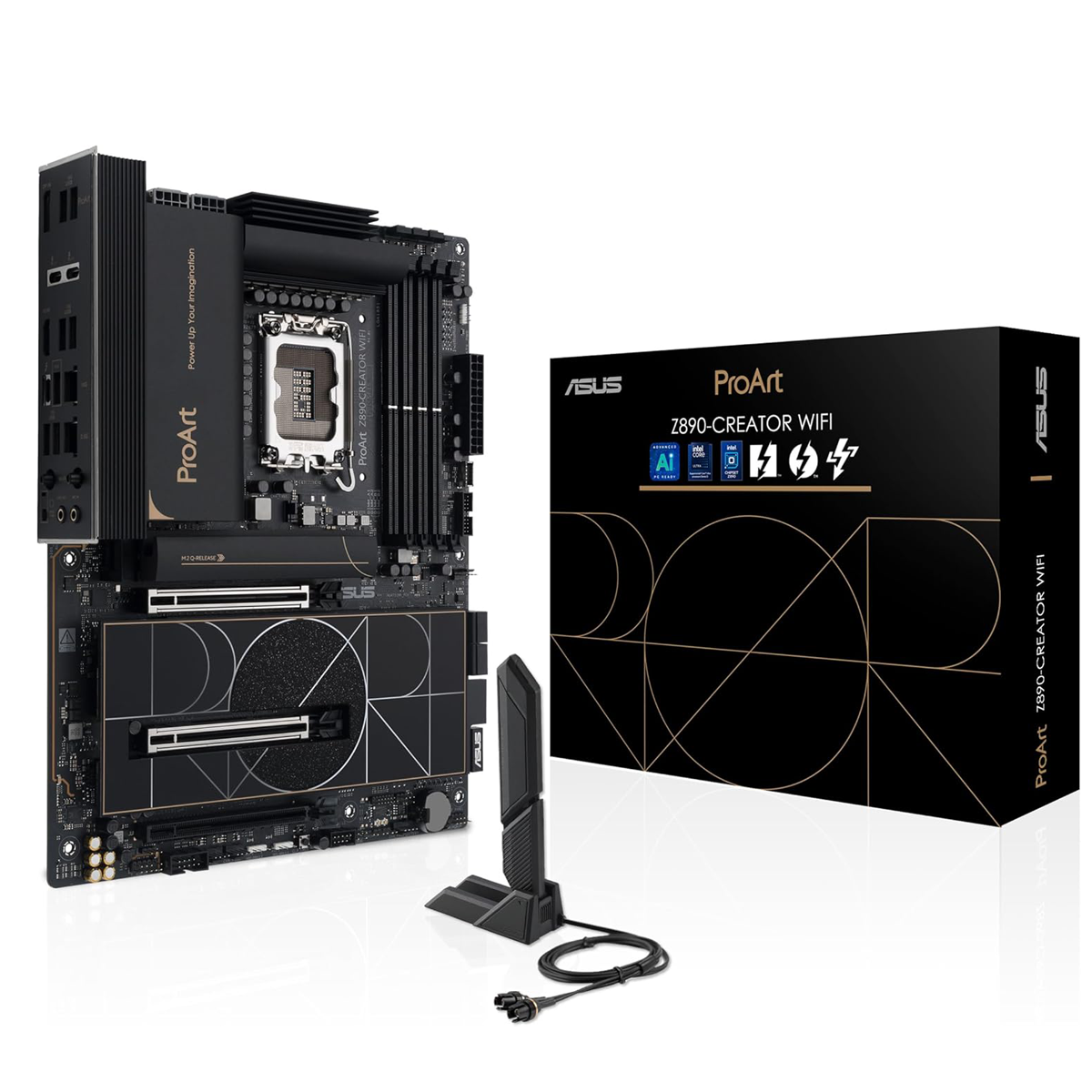

| Accessories | Cables 2 x SATA 6Gb/s cablesMiscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch packages 2 x M.2 rubber packages 1 x ProArt accessory bagDocumentation 1 x ACC Express activation key card 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
