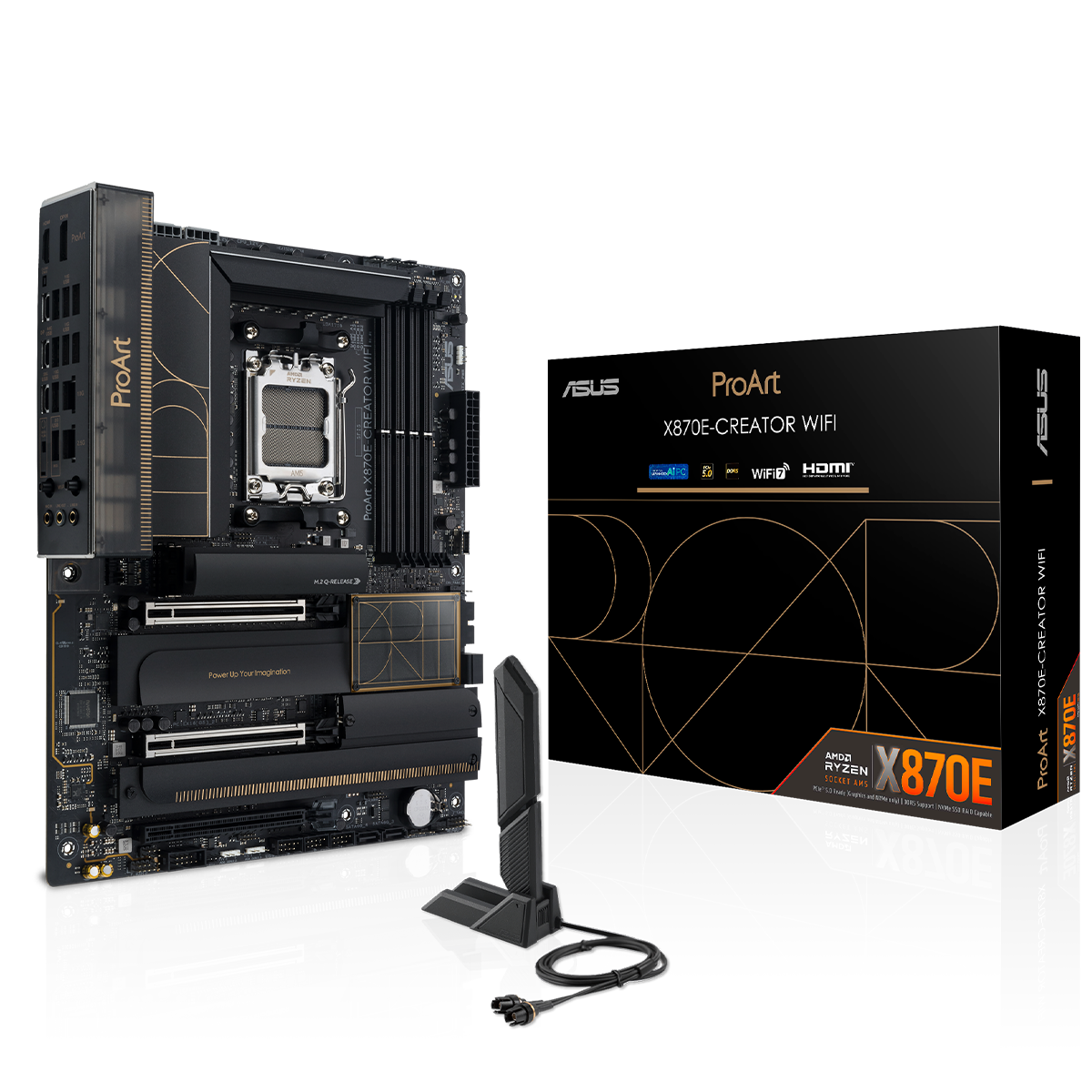

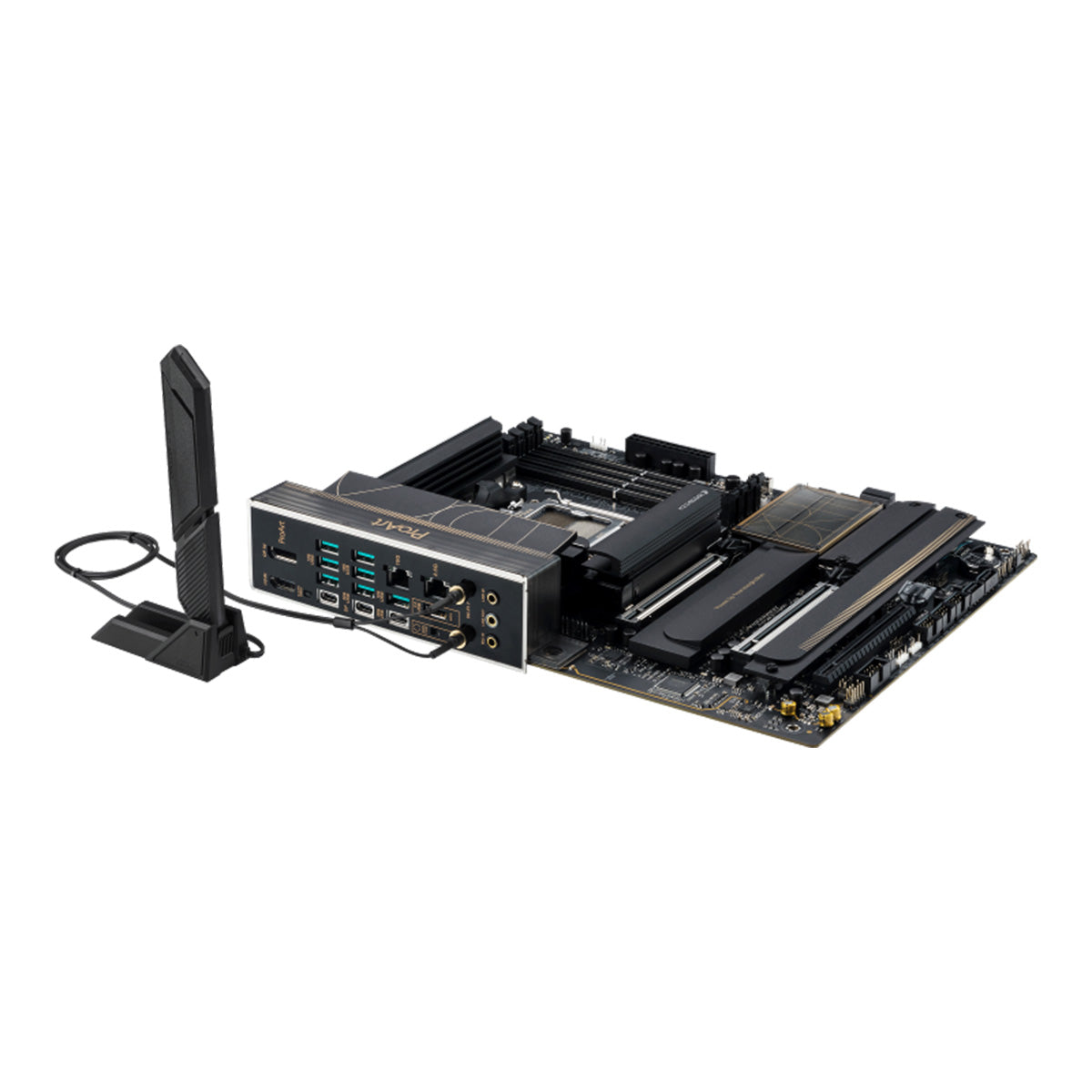

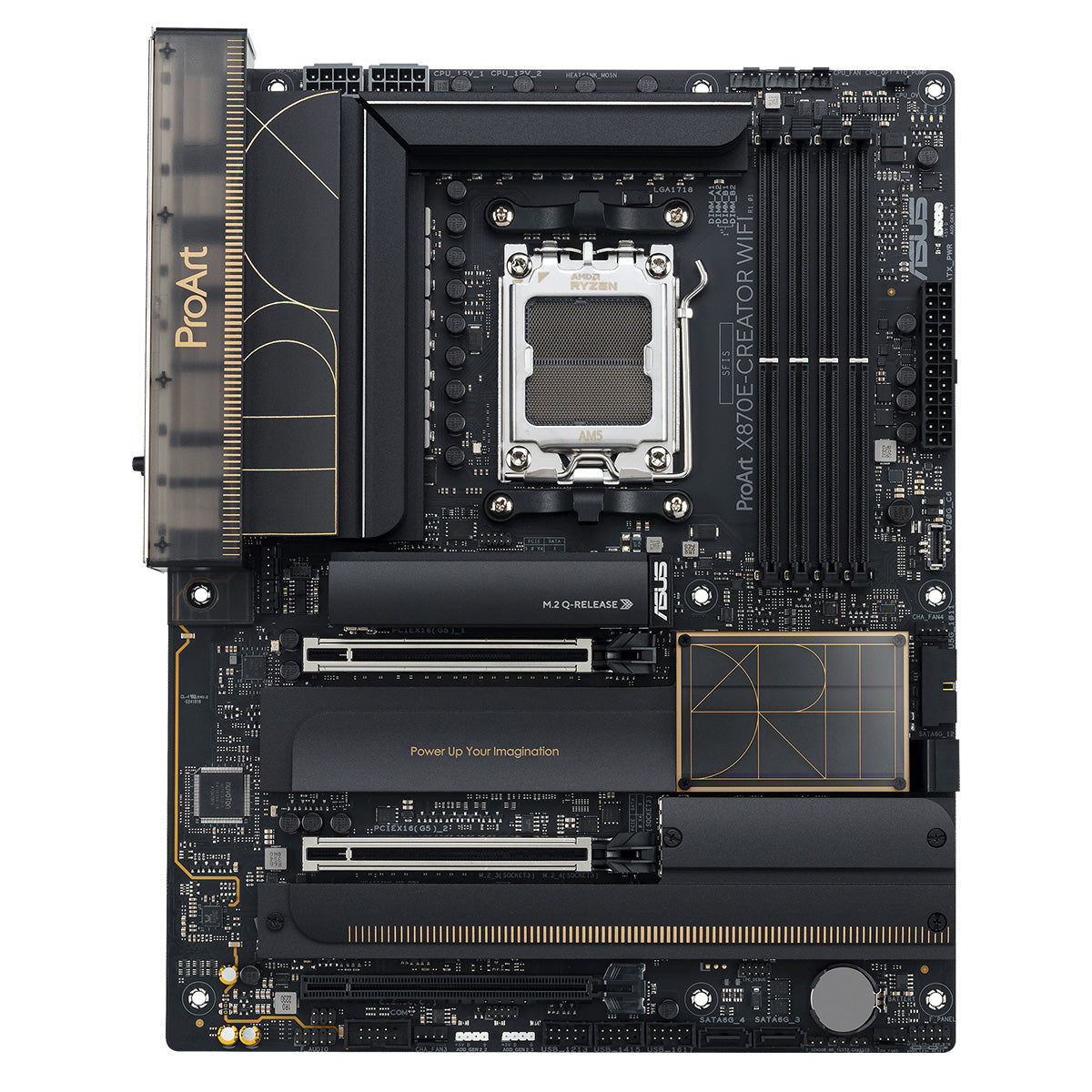

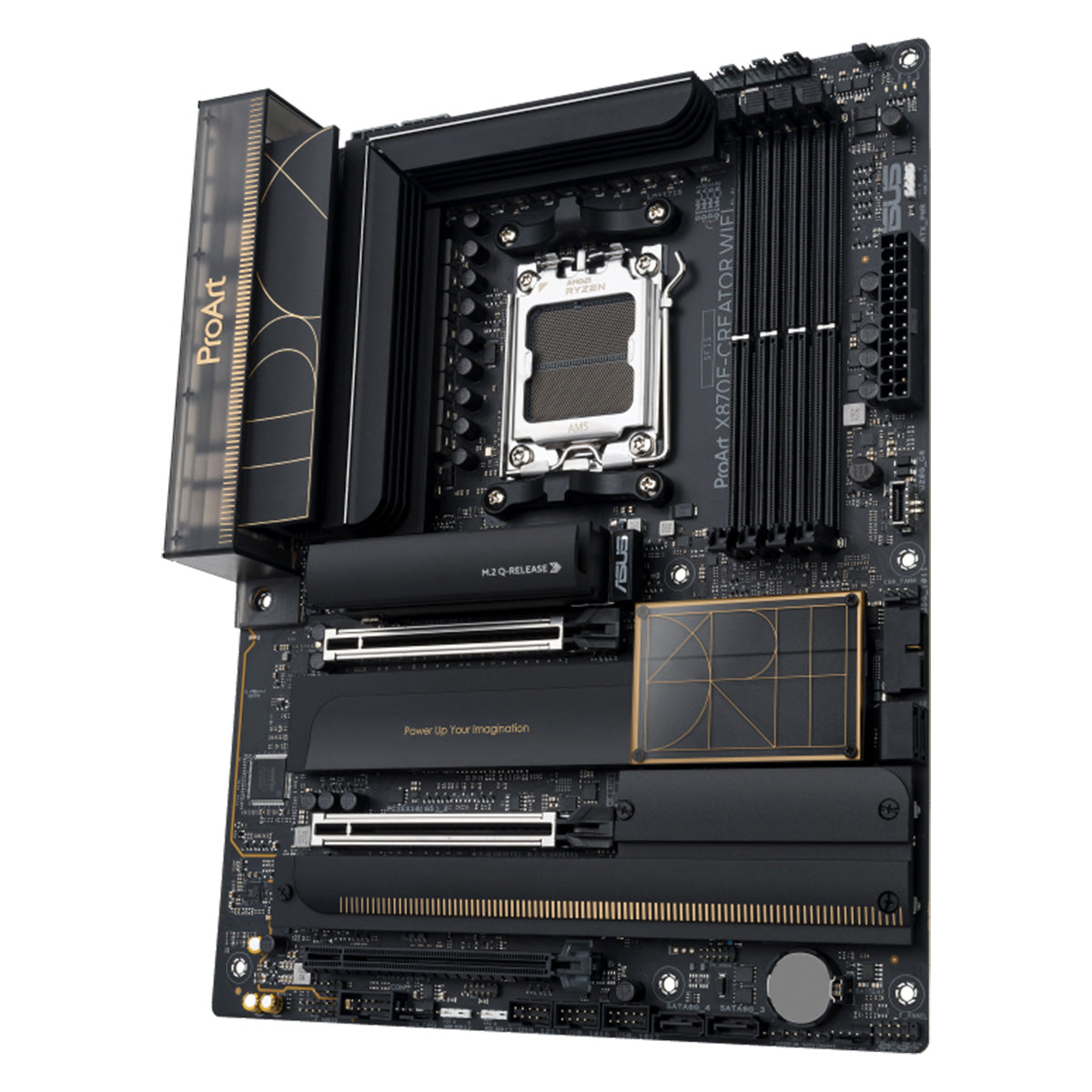

ASUS PROART X870E-CREATOR WIFI Motherboard

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

All You Need for Maximum Productivity

Dual USB4® Connectivity

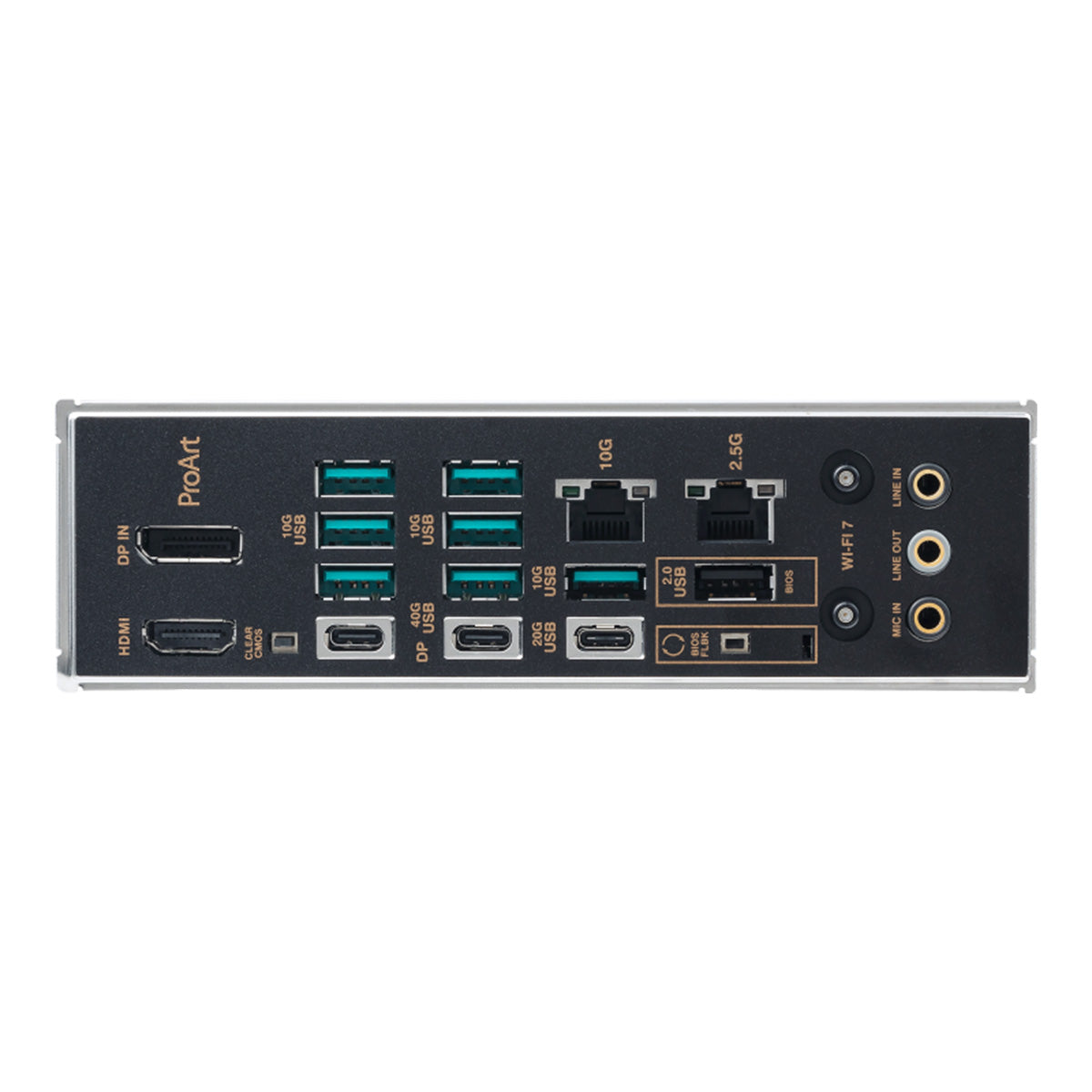

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.

Up to 40Gbps Bi-directional bandwidth
DisplayPort 1.4 Supports one 8K or dual 4K displays
Daisy-Chaining For up to five devices
Up to 15W Charging

Ultrafast Networking

10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.​
**Specifications vary by model.

Wireless Signal Reception Improvement
Versus previous-generation antenna
Up to +6% @ 6GHz
Up to +18% @ 5/2.4GHz

Disclaimer: The availability of WiFi 7 160 MHz varies according to regional regulations.

PCIe 5.0 Support
Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots
ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Quick-charging Your USB Devices
USB 20Gbps Type-C front-panel connector with Quick Charge 4+
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.

The Core of Your Powerful Workstation

Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

16 Vcore Power (80A, SPS)
2 SOC Power (80A, SPS)
2 Misc Power (80A, DrMOS)

Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.

ProCool II Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

Intelligent AI Solutions

AI Overclocking
Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II
Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

Performance Boost

Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.

PBO Enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning PBO parameters, this AMD algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.​

Memory

DDR5 Strength
For those who want to fly past stock DDR5 speeds*, the ProArt X870E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

ASUS Enhanced Memory Profile (AEMP)
This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.​
