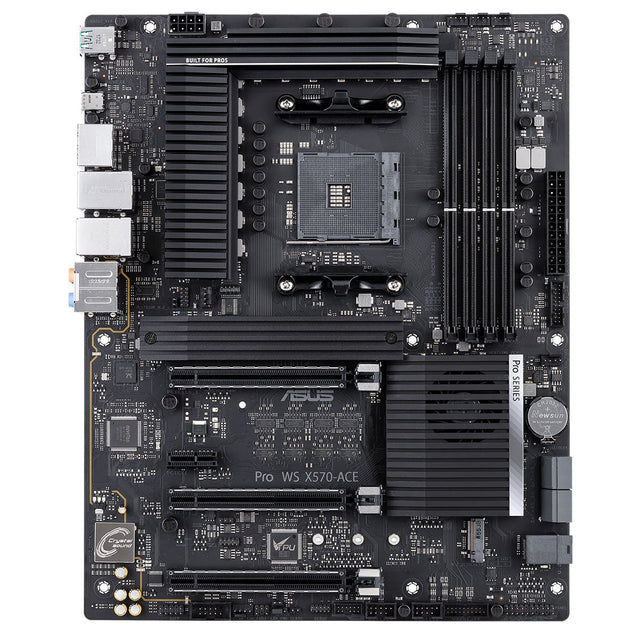

ASUS Pro WS X570-ACE Workstation Motherboard

ProCool II power connector

The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.

Power stages with IR3555 design

The CPU VRM on Pro WS X570-ACE employs a 12+2 power stage design with IR3555, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.

Alloy chokes

The Pro WS X570-ACE series uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the processors.

Durable capacitors

Durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Active PCH Heatsink

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Pro WS X570-ACE features an actively cooled heatsink to prevent throttling during sustained transfers.

Ultra-efficient VRM Heatsink

Pro WS X570-ACE ensures optimal cooling and system stability for the latest AMD Ryzen® processors. Higher power requirements are balanced by carefully designed heatsinks that carefully balance mass and surface area to maximize thermal dissipation. In addition to the VRM-heatsink array and the heatpipe that's positioned to provide maximum airflow within the chassis, a dedicated fan and heatsink also help to efficiently dissipate heat from the PCH.

M.2 Heatsink

Pro WS X570-ACE features an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 22°C for optimal storage performance and improved SSD longevity.

24/7 Dependability

Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

Multi-GPU support

Fully loaded takes on new meaning when you have up to 24 PCI Express® lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.

ASUS 2-WAY VGA holder

The Pro WS X570-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.

SafeSlot

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Make your memory faster and reliable

Error-Correcting-Code (ECC) support offers a potent foundation for your build and enables Pro WS X570-ACE to automatically detect and repair single-bit memory errors, ensuring reliable and responsive performance in mission-critical environments.

ASUS OptiMem

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

Speed up with onboard M.2 & U.2

With x4 PCI Express® 4.0 bandwidth, Pro WS X570-ACE features up to 64Gbps M.2 and U.2 for faster data-transfer speeds — ideal for an operating system or application drive.

USB 3.2 Gen 2 back-panel connectors

The back panel of the Pro WS X570-ACE features five USB 3.2 Gen 2 connectors, including one reversible Type-C™ and four backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

PRO WORKSTATION MOTHERBOARD

ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.

ASUS Control Center Express

ASUS Control Center Express is centralized server-grade software that works in conjunction with a GbE LAN controller which also serves as a management controller to reduce IT operational costs and improves efficiency. Its out-of-band management enables hardware-level control such as remote hardware reset, BIOS setting and update, and operating system installation across multiple clients, and remotely troubleshoot crashes or unexpected shutdowns.

8-layer PCB design

Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.

CPU performance boost

The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

All-round energy efficiency

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls for air or liquid

With Pro WS X570-ACE you have comprehensive control over fans via Fan Expert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

Precise digital power control

Digi+ delivers real-time control over voltage droop, switching frequency and power -efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Armoury Crate

The new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates and bug patches.

5-Way Optimization

ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of your system to provide overclocking and cooling profiles that are tailored for your rig.

Crystal Sound 3

Flawless, immersive audio for entertainment

• Audio shielding - Separates analog/digital signal domains, significantly reducing multilateral interference.
• Separate layer for left and right tracks - Ensures minimal crosstalk between audio paths.
• Integrated amplifier - Capable of driving high-impedance headphones, without rolling-off high or low frequencies.
• Premium Japanese-made audio capacitors - Premium parts provide an immersive sound signature, with exceptional fidelity.

AMD X570 chipset

The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.

AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
