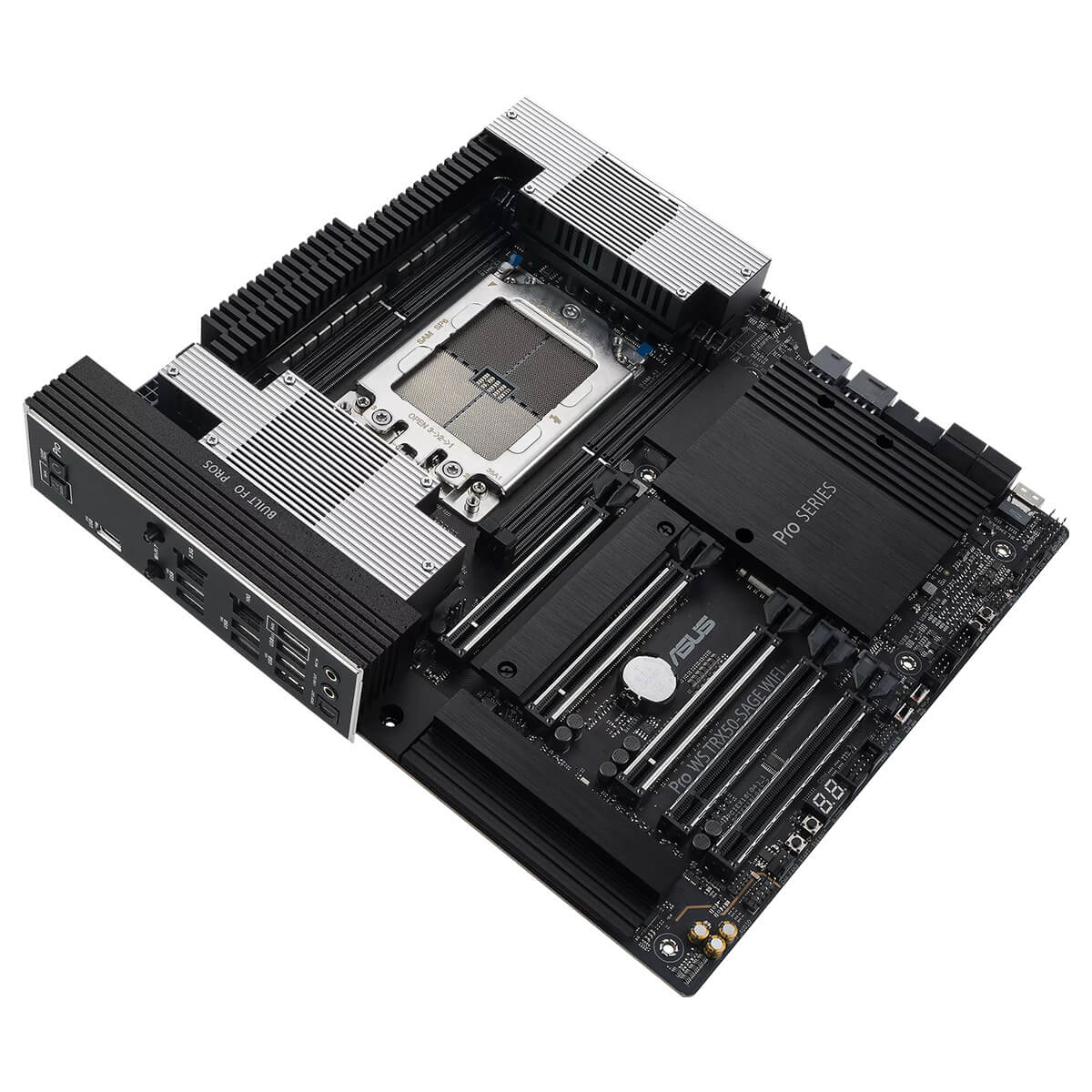

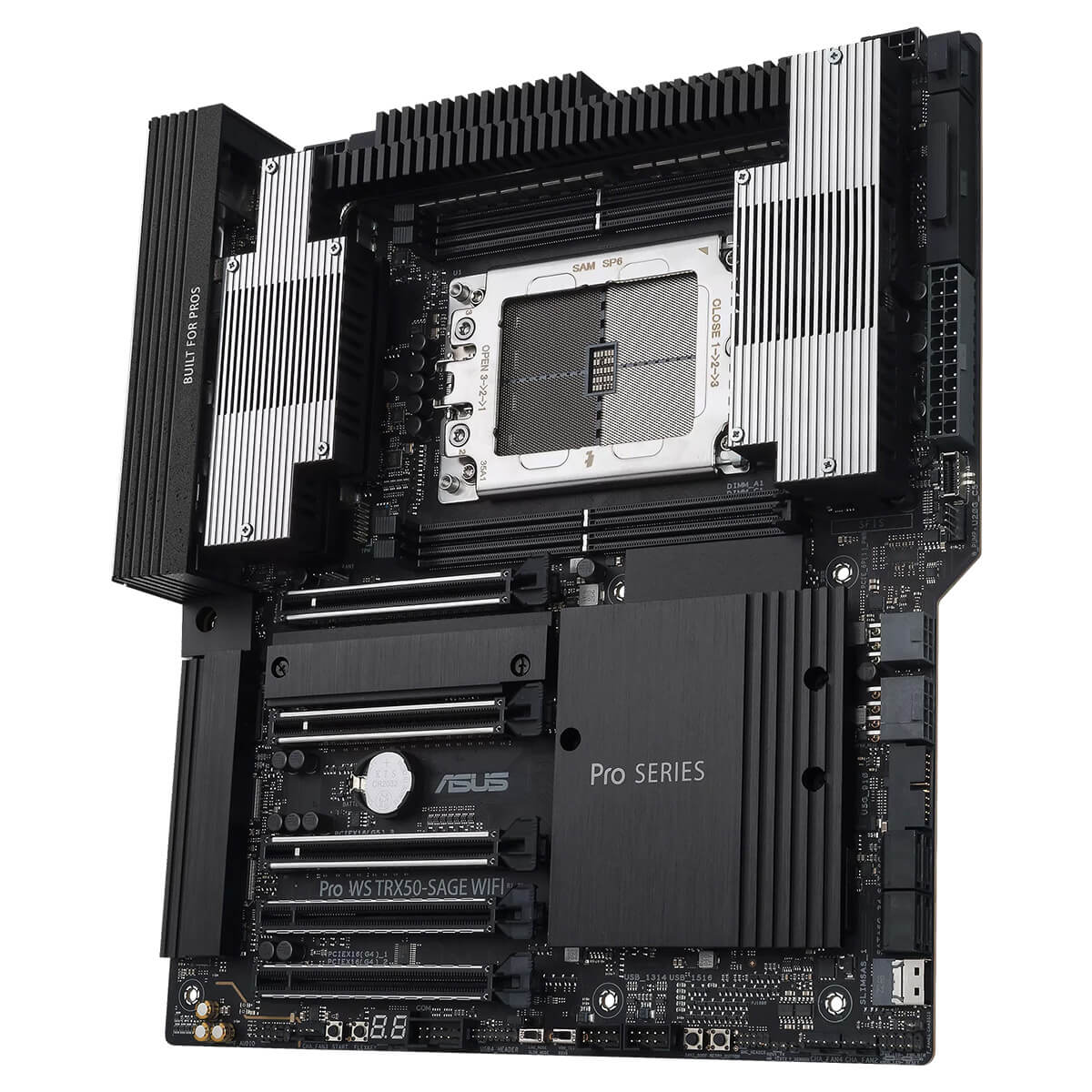

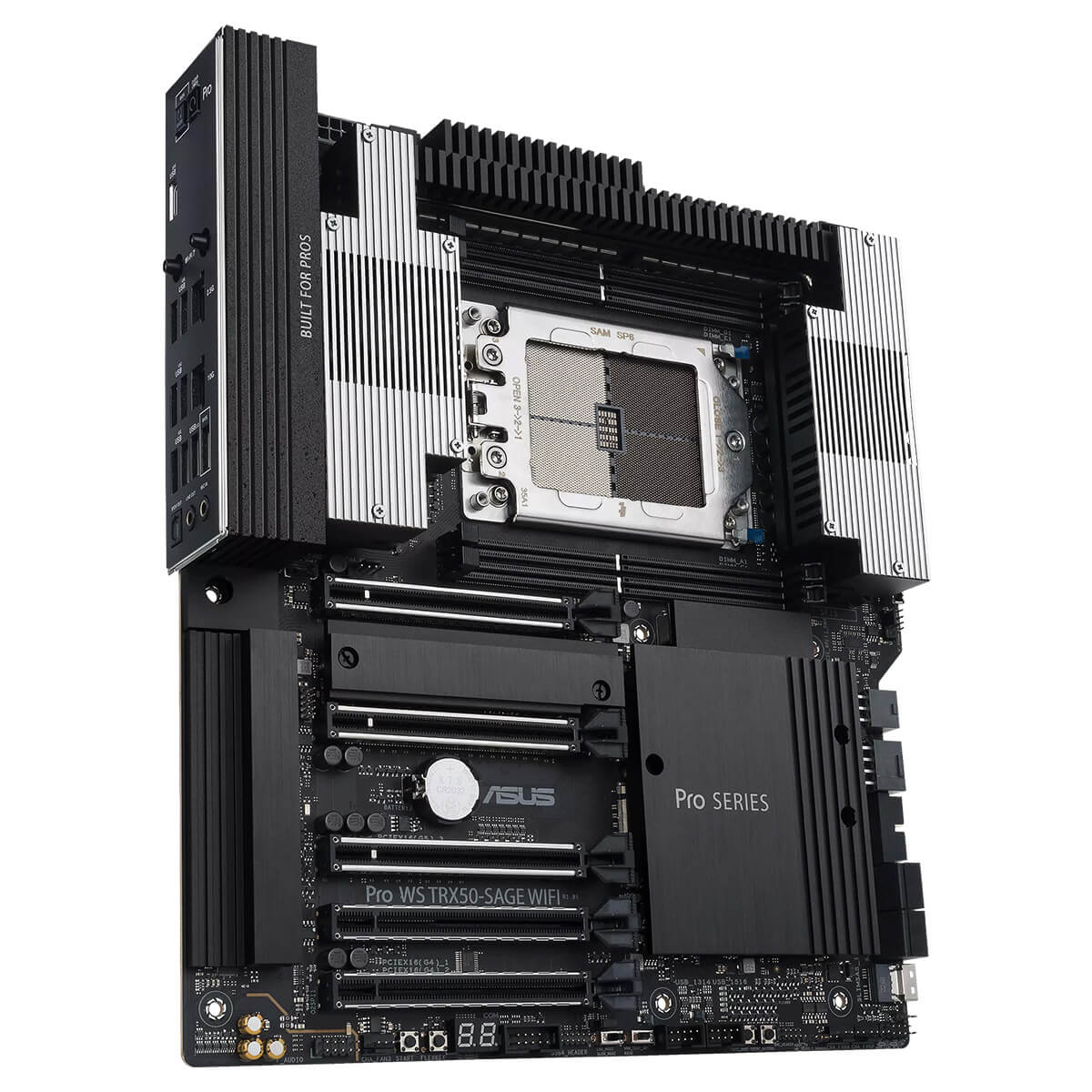

ASUS PRO WS TRX50-SAGE WIFI Workstation Motherboard (WIFI 7)

ASUS  |  SKU 55399  |  MPN PRO WS TRX50-SAGE WIFI
$1,799.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

A WORKSTATION WONDERLAND

The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.

With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.


CPU AND MEMORY OVERCLOCKING READY

For AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.


INNOVATIVE COOLING AND ROBUST PERFORMANCE

  • Power Stages in VRM Area: The Pro WS TRX50-SAGE WIFI’s voltage regulator module setup is comprised of (18*2)+3+4+4 power stages, delivering the power and efficiency that the latest AMD Ryzen™ processors demand and stability for extreme overclocking.
  • Active VRM Cooling Solutions: The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency, while fins and hidden heat pipes also significantly improve heat dissipation.
  • ProCool II Connectors: ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

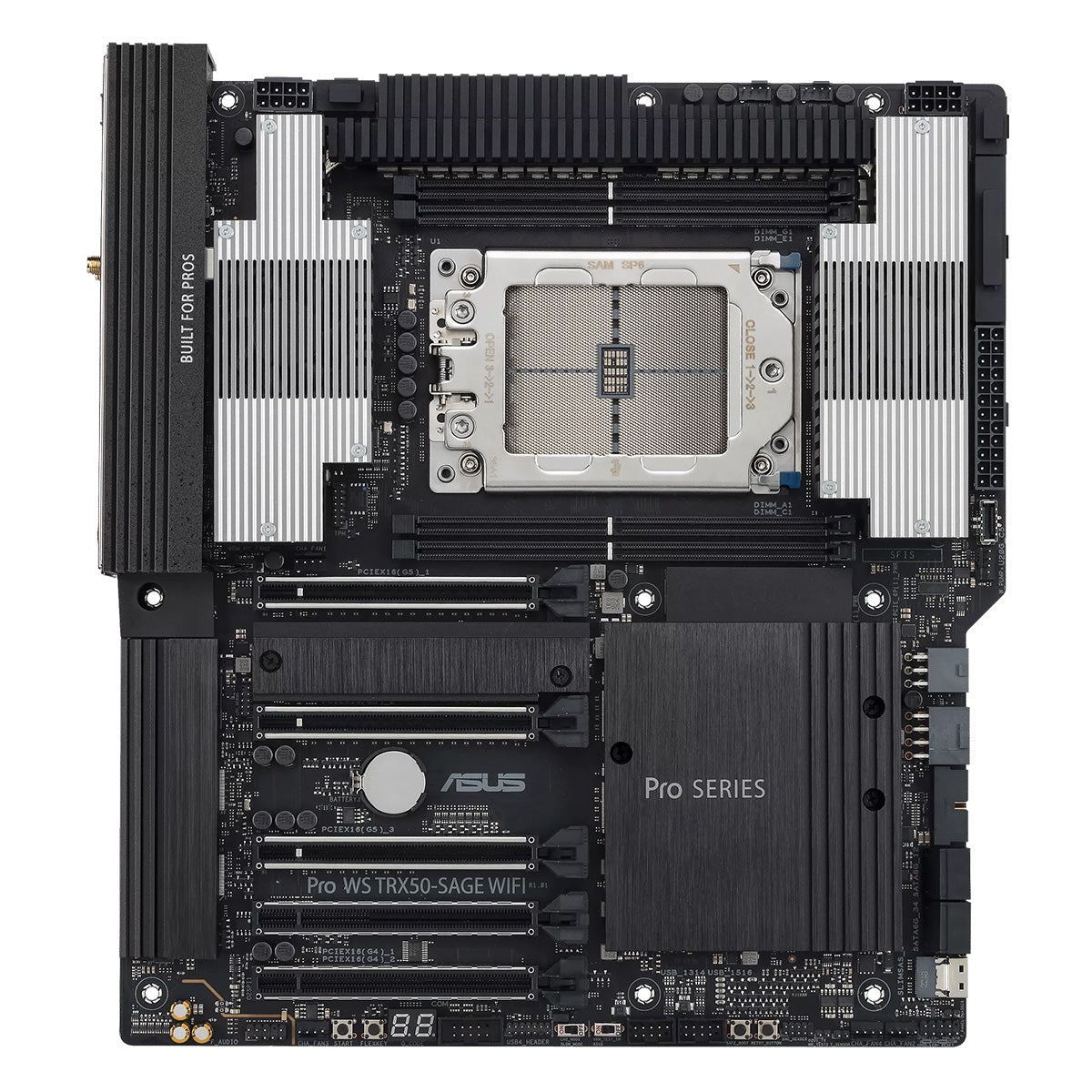

  • Onboard PCIe Power Connectors: This is a top-down view of the motherboard. The PCIe cable connectors are located on the right-hand edge of the motherboard.

ECC R-DIMM Memory Support

The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.


ULTRAFAST CONNECTIVITY

The Pro WS TRX50-SAGE WIFI motherboard features several PCIe® 5.0/4.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.
  • WIFI 7: Next-gen WiFi 7 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT. Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
  • Marvell® AQtion 10 Gbp Ethernet: With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.
  • Intel® 2.5 Gb Ethernet: Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.
  • USB 20Gbps with Quick Charge 4+: Front panel connector offers a transfer rate of up to 20 Gbps Supports Quick Charge 4+ up to 27 watts, to charge devices faster than previous types of USB ports.

  • Embrace Next-Generation USB4®: Faster than ever and future-proof; once connected to this motherboard’s onboard USB4 header, the USB4 expansion card will enable bi-directional speeds of up to 40 Gbps and provide ample power to fast-charge devices.
  • M.2 PCIe 5.0/4.0 slots: The Pro WS TRX50-SAGE WIFI motherboard also offers three M.2 slots—two PCIe 5.0 and one PCIe 4.0—to enhance storage flexibility and performance. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.

  • SlimSAS slot: The Pro WS TRX50-SAGE WIFI motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.

REMOTE CONTROL SOLUTIONS

  • ASUS IPMI Expansion Card: The Pro WS TRX50-SAGE WIFI is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as firmware update or power cycling a system.
  • ASUS Control Center Express: The Pro WS TRX50-SAGE WIFI comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.


THOROUGH THERMAL DESIGN

  • Chipset Cooling: A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
  • 10 Gb LAN Cooling: An ideally located and extended heatsink on the 10 Gb Ethernet controller ensures the stable performance of high-speed networking anytime, anywhere.
  • M.2 Cooling: All three M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.


INNOVATIVE DIY DESIGN AND ROBUST RELIABILITY

  • SafeSlot & SafeDIMM: PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.
  • Q-Latch: The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
  • 24/7 Reliability: Optimized for 24/7 operation, the Pro WS TRX50-SAGE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.

Specifications

ModelPro WS TRX50-SAGE WIFI
CPUAMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors *
ChipsetAMD TRX50 Chipset
Memory4 x DIMM slots, DDR5, ECC Registered Memory*.
4 Channel Memory Architecture.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion SlotsAMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors:
2 x PCIe 5.0 x16 slots.
1 x PCIe 5.0 x16 slot (x8 mode).
1 x PCIe 4.0 x16 slot.
1 x PCIe 4.0 x16 slot (x4 mode).
* Please check the PCIe bifurcation table on the support site: https://www.asus.com/support/FAQ/1037507/.
StorageTotal supports 3 x M.2 slots, 4 x SATA 6Gb/s ports.
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode).
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode).
AMD TRX50 Chipset:
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode).
4 x SATA 6Gb/s ports.
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device.
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet1 x Marvell® AQtion 10Gb Ethernet.
1 x Intel® I226-LM 2.5Gb Ethernet.
Wireless & BluetoothWi-Fi 7*.
2x2 Wi-Fi 7 (802.11be).
Supports 2.4/5/6GHz frequency band**.
Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***.
* Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available; refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USBRear USB (Total 9 ports):
1 x USB 20Gbps port (1 x USB Type-C®).
6 x USB 10Gbps ports (6 x Type-A).
2 x USB 2.0 ports (2 x Type-A).
Front USB (Total 7 ports):
1 x USB 20Gbps connector (supports USB Type-C® with up to 27W PD/QC4+).
1 x USB 5Gbps header supports 2 additional USB 5G ports.
2 x USB 2.0 headers support additional 4 USB 2.0 ports.
AudioRealtek ALC1220P Surround Sound High Definition Audio CODEC*:
- Impedance sense for front and rear headphone outputs.
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers.
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking.
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in).
- Supports up to 32-Bit/192 kHz playback.

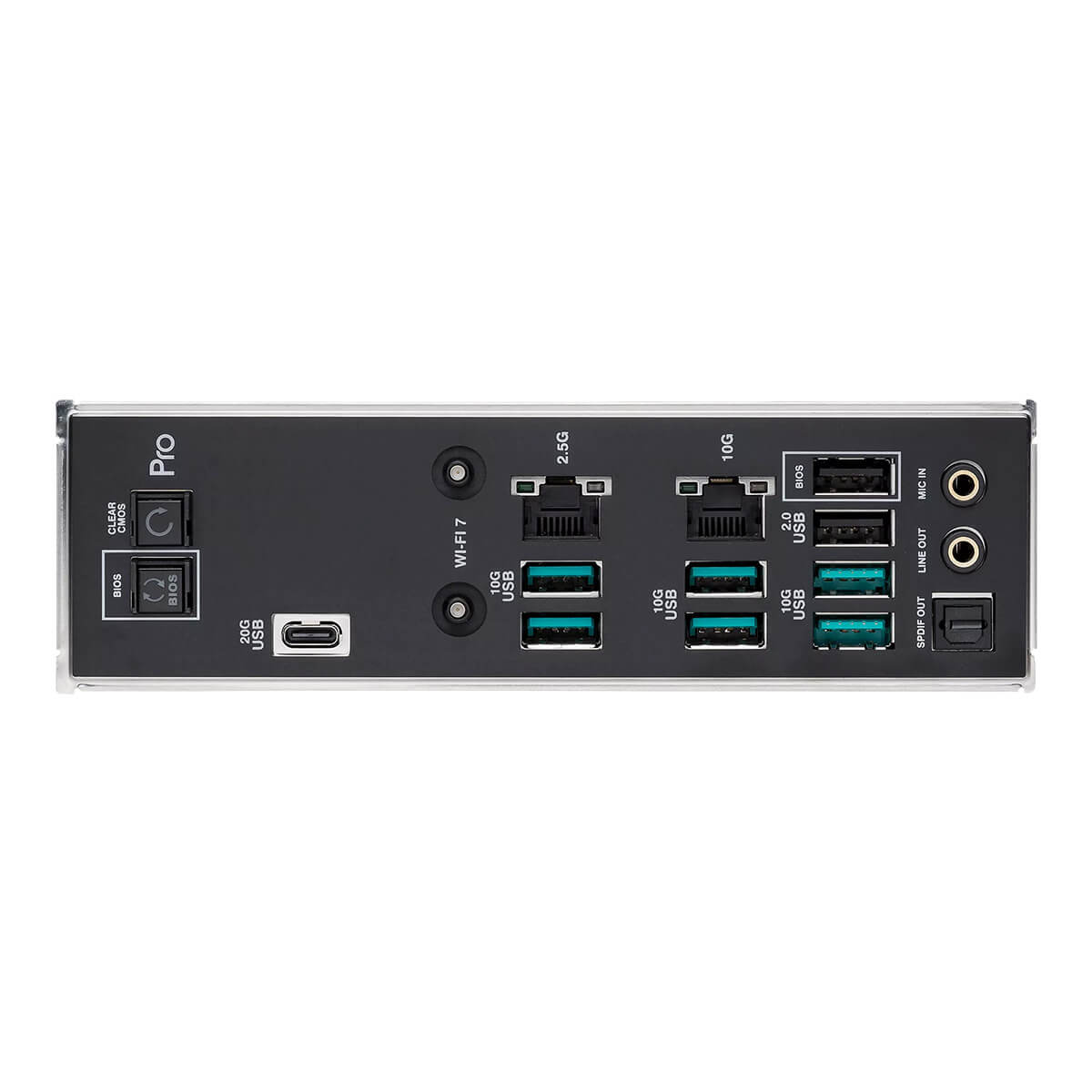

Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C®).
6 x USB 10Gbps ports (6 x Type-A).
2 x USB 2.0 ports (2 x Type-A).
1 x Wi-Fi Module.
1 x Marvell® AQtion 10Gb Ethernet port.
1 x Intel® 2.5Gb Ethernet port.
2 x Audio jacks.
1 x Optical S/PDIF out port.
1 x BIOS FlashBack™ button.
1 x Clear CMOS button.
Internal I/O ConnectorsFan and Cooling related:
1 x 4-pin CPU Fan header.
1 x 4-pin CPU OPT Fan header.
1 x W_PUMP+ header.
4 x 4-pin Chassis Fan headers.
2 x 4-pin VRM Fan headers (with VRM FAN onboard).
Power related:
2 x 24-pin Main Power connectors.
2 x 8-pin +12V Power connectors.
2 x 8-pin PCIe to CPU power connectors.
1 x 6-pin PCIe Power connector.
1 x 8-pin PCIe Power connector.
Storage related:
3 x M.2 slots (Key M).
4 x SATA 6Gb/s ports.
1 x SlimSAS port.
USB:
1 x USB 20Gbps connector (supports USB Type-C®).
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports.
2 x USB 2.0 headers support additional 4 USB 2.0 ports.
Miscellaneous:
1 x BMC header.
1 x COM Port header.
1 x USB4 header.
1 x FlexKey button.
1 x Front panel audio header (F_AUDIO).
1 x Start button.
1 x Safe boot button.
1 x ReTry button.
1 x LN2 mode jumper.
1 x Slow mode switch.
1 x SPI TPM header (14-1pin).
1 x 10-1 pin system panel header.
1 x Chassis intrusion header.
1 x Thermal Sensor header.
Special FeaturesASUS Q-Design:
- Q-Code.
- M.2 Q-Latch.
- Q-Connector.
- Q-DIMM.
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]).
- Q-Slot.
ASUS Thermal Solution:
- M.2 heatsink and onboard thermal pads.
- VRM heatsink design with active fans.
ASUS EZ DIY:
- BIOS FlashBack™ button.
- BIOS FlashBack™ LED.
- Clear CMOS button.
- ProCool II.
- Pre-mounted I/O shield.
- SafeSlot.
- SafeDIMM.
Bespoke Motherboard Design & Business Focused Features:
- 24/7 Reliability.
- Overcurrent Protection.
Software FeaturesASUS Exclusive Software:
- Armoury Crate.
- Fan Xpert 4.
- ASUS CPU-Z.
IT Management software supported:
- ASUS Control Center Express(ACCE).
- Adobe Creative Cloud (Free Trial).
- Norton 360 Deluxe (60 Days Free Trial).
- WinRAR (40 Days Free Trial).
UEFI BIOS:
- ASUS CrashFree BIOS 3.
- ASUSTeK EzFlash Utility.
- FlexKey.
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE (UEFI mode)
AccessoriesCables:
- 2 x SATA 6Gb/s cables.
- 1 x CPU 8-pin to PCIe 8-pin adapter cable package.
- 1 x Thermistor cable pack.
Miscellaneous:
- 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas.
- 1 x M.2 Q-Latch package (2 in 1).
- 2 x M.2 Rubber Packages.
- 1 x Q-connector.
Documentation:
- 1 x ACC Express Activation Key Card.
- 1 x QSG.
Operating SystemWindows® 11 64-bit
Form FactorCEB Form Factor, 12 inch x 11 inch (30.5 cm x 28.3 cm)
