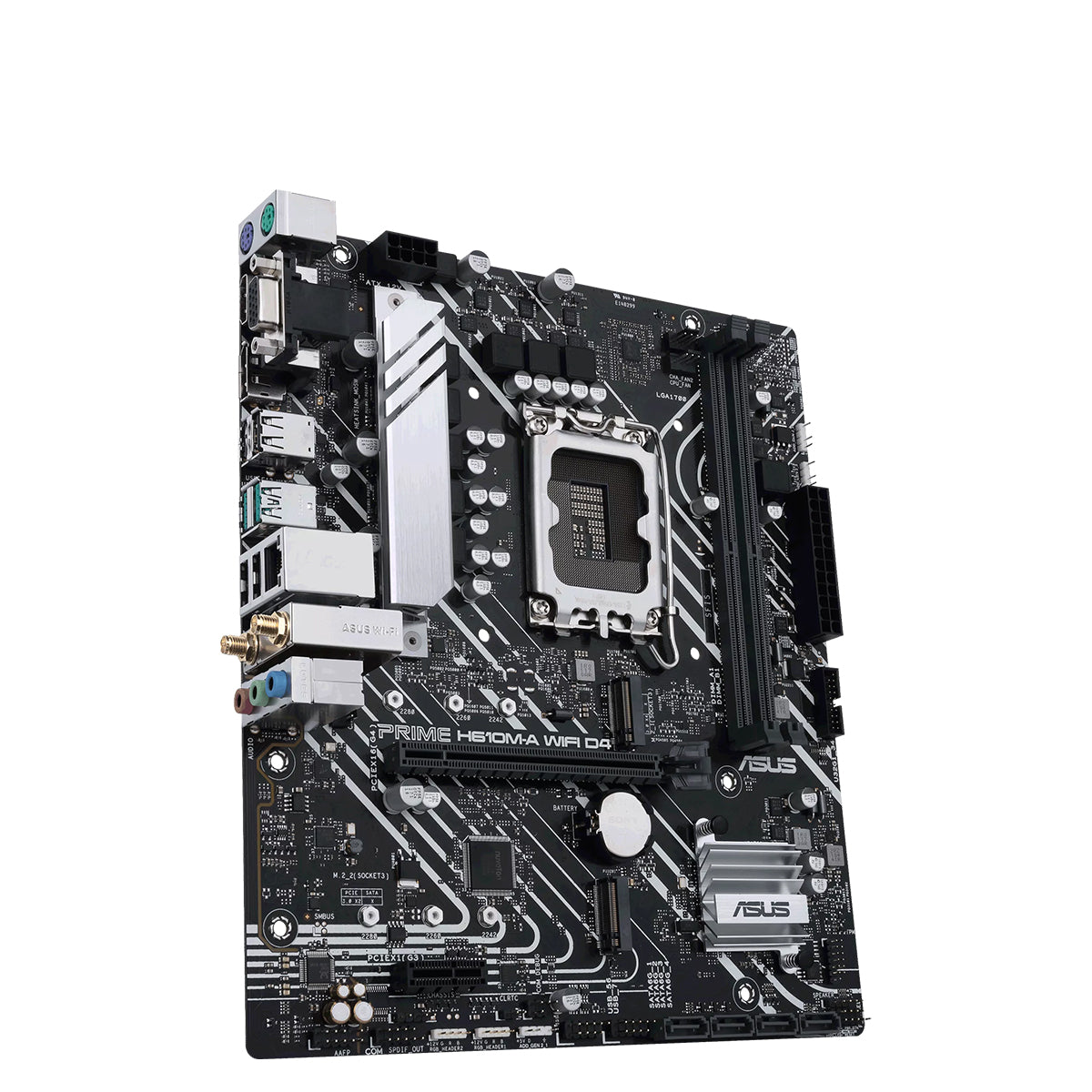

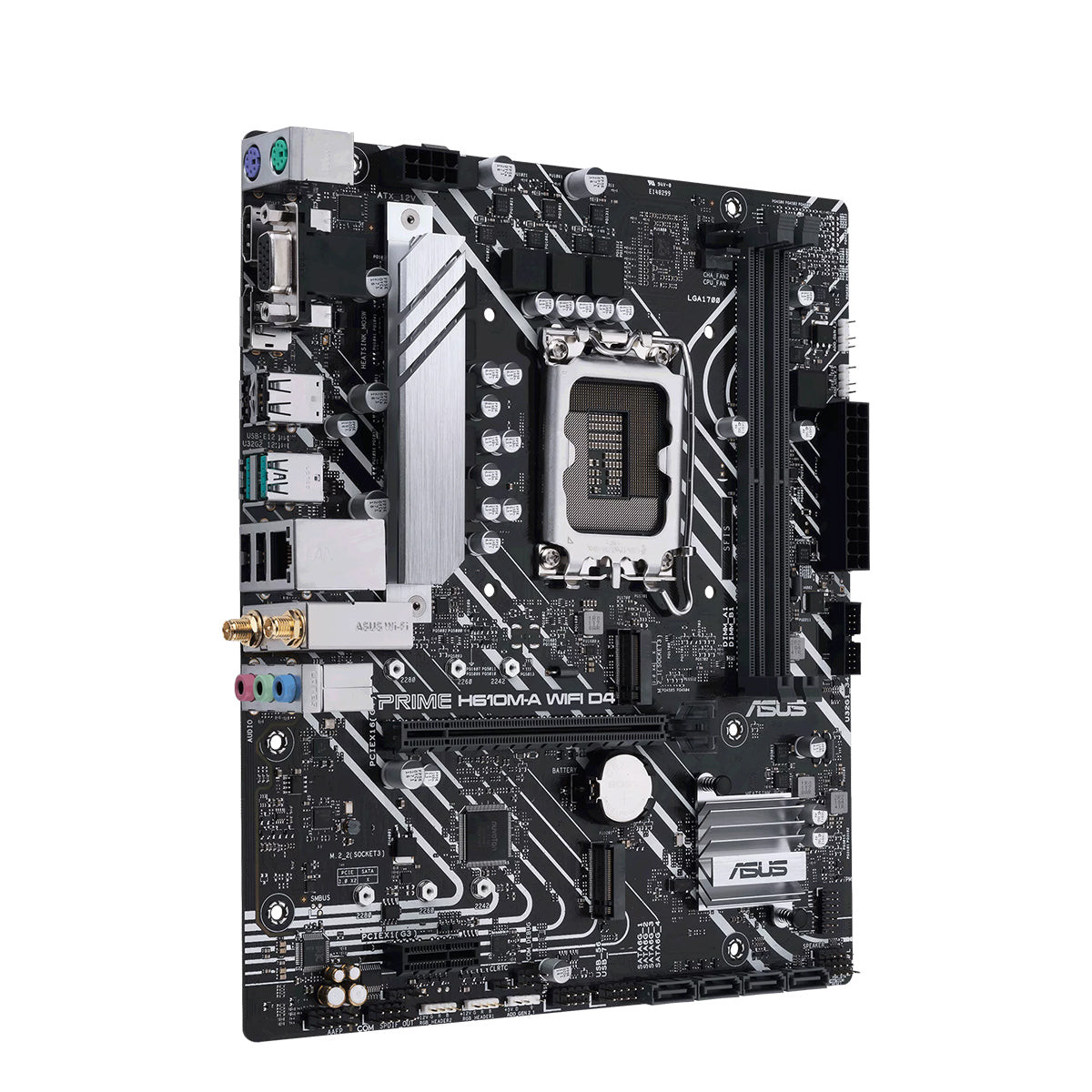

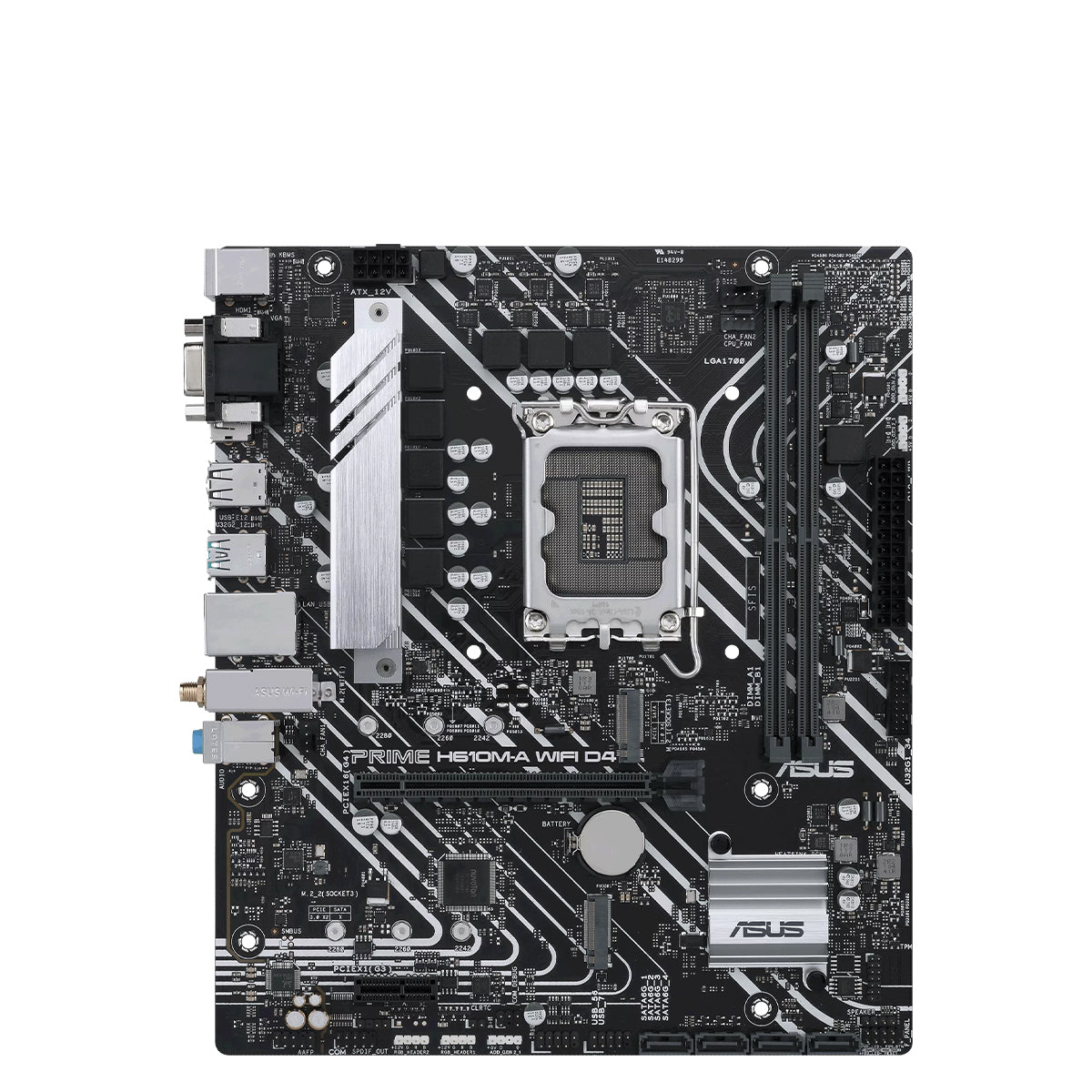

ASUS PRIME H610M-A WIFI DDR4 mATX Motherboard
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Intel® H610 (LGA 1700) Motherboard
Micro-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync.
Intel® LGA 1700 Socket
Ready for 14th, 13th & 12th Gen Intel® processors.
Comprehensive Cooling
VRM heatsink, PCH heatsink, and Fan Xpert 2+ provide advanced thermal management.
Ultrafast Connectivity
32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5, and USB 3.2 Gen 2 ports for high-speed data transfer.
Aura Sync RGB
Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode, shutting down unused I/O controllers for extreme energy-saving scenarios.
Flexible Cooling Controls
Prime 600 Series motherboards offer comprehensive control over system fans via Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It allows fine-tuning of your CPU for ultimate stability and performance.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode in the UEFI lets you take complete control. A built-in search feature simplifies finding options, while advanced functions allow nuanced adjustments to dial in performance.
Cooler by Design
Prime H610 series features comprehensive cooling controls configurable via Fan Xpert 2+ software or UEFI BIOS.
Dual M.2 Slots (up to 32 Gbps)
Two M.2 slots support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling faster boot-up and application load times.
PCIe® 4.0
Designed for 14th, 13th & 12th Gen Intel® Core™ CPUs with PCIe® 4.0 connectivity for the latest GPUs, providing wide bandwidth and fast transmission for feature-rich builds.
USB 3.2 Gen 2 Ports
Rear-panel USB Type-A ports support high-speed 10 Gbps transmission, perfect for rigs loaded with peripherals.
Addressable Gen 2 Headers
Three headers detect the number of LEDs on second-gen addressable RGB devices, automatically tailoring lighting effects. They also maintain backward compatibility with existing Aura RGB devices.
Specifications
Specifications
| Model | PRIME H610M-A WIFI D4 |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *Actual memory data rate depends on the CPU types and DRAM modules. |
| Graphics | 1 x DisplayPort**, 1 x D-Sub port, 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 slot Chipset: 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x4) M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x2) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 1Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 5 (802.11 a/b/g/n/ac), 2.4/5GHz frequency band, Bluetooth v5.0 |
| USB | Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A Front USB: 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 3 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC - Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking - Up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers *Requires HD audio front panel module for 7.1 output |

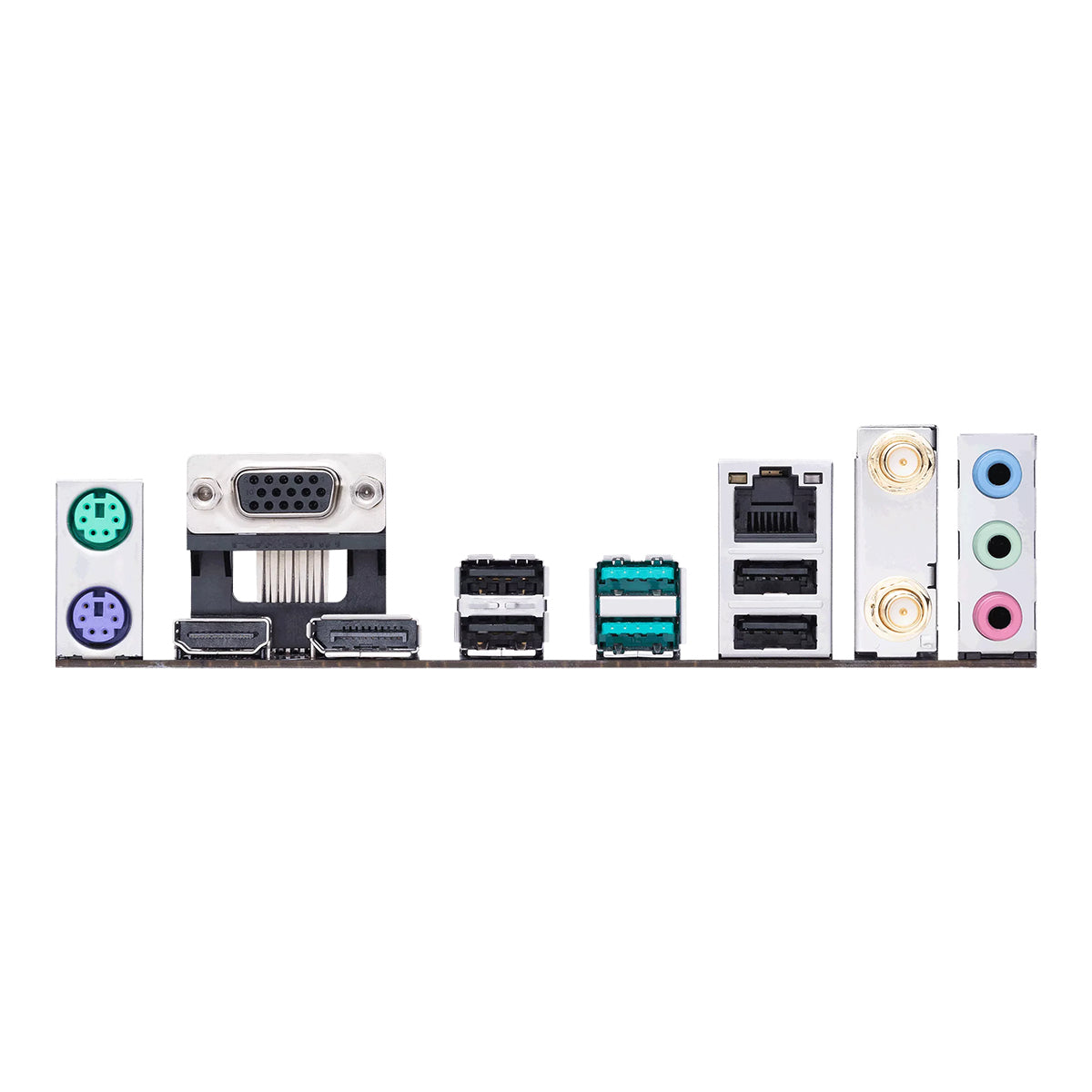

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2, 4 x USB 2.0, 1 x DisplayPort, 1 x HDMI, 1 x D-Sub, 1 x Wi-Fi Module, 1 x Intel 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard, 1 x PS/2 Mouse |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V Power, 2 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-Slot) ASUS Thermal Solution (VRM heatsink design) AURA Sync (AURA RGB headers, Addressable Gen 2 headers) |
| Software Features | Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+), AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, ASUS CPU-Z, MyASUS, Norton Anti-virus (Trial), WinRAR, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

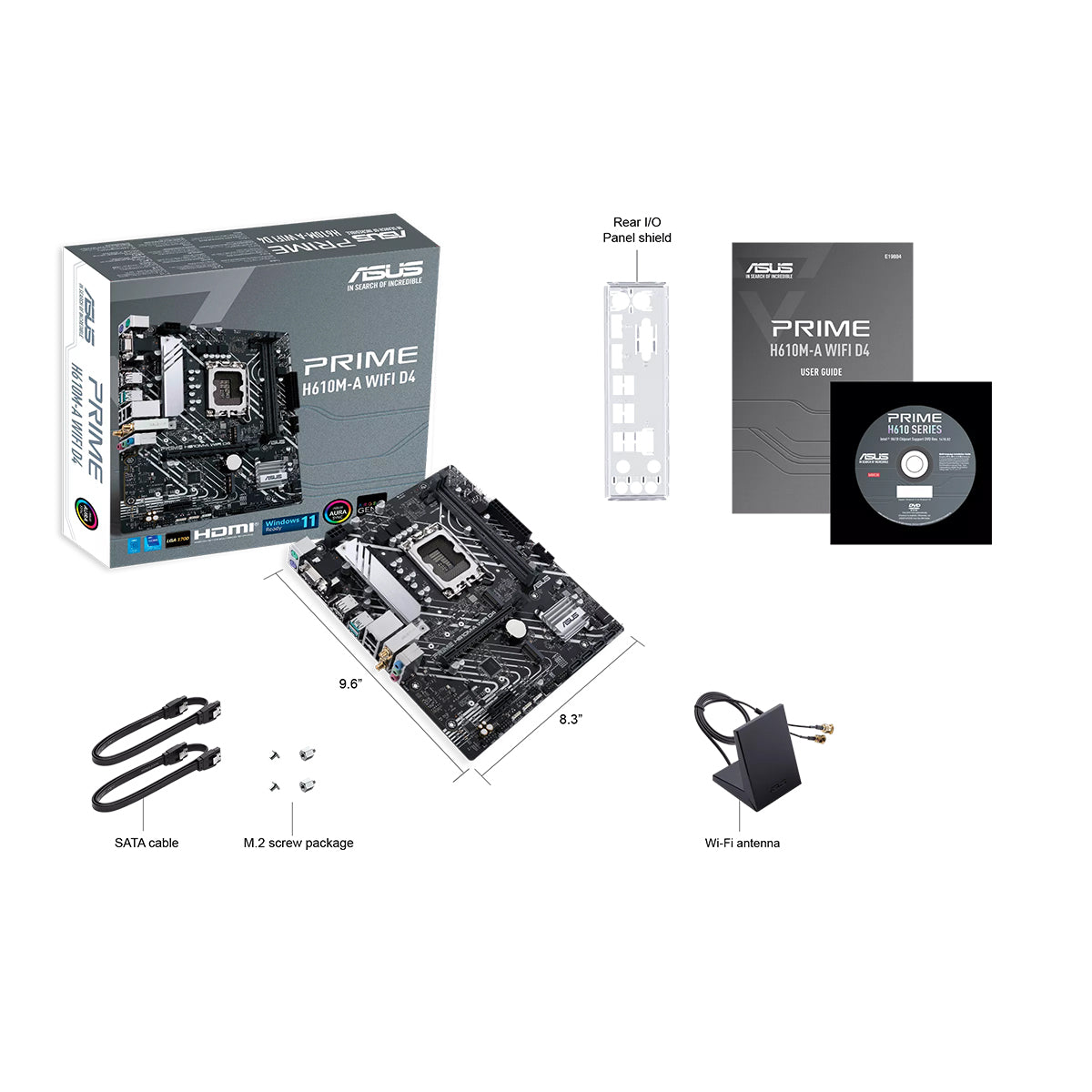

| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi antenna, 1 x I/O Shield, 1 x M.2 SSD screw package, 1 x Support DVD, 1 x User guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX Form Factor; 24.4 cm x 21.1 cm (9.6 in x 8.3 in) |
