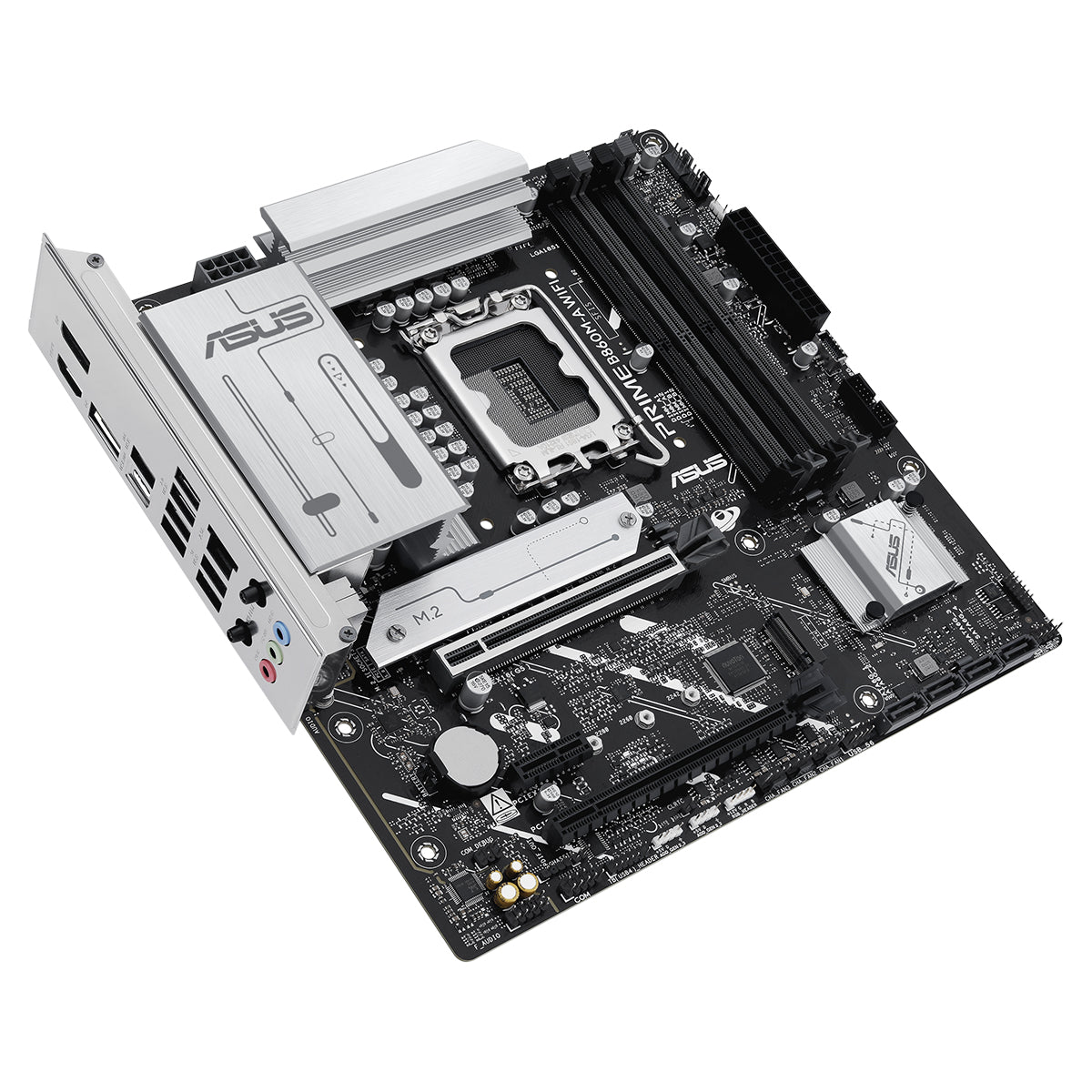

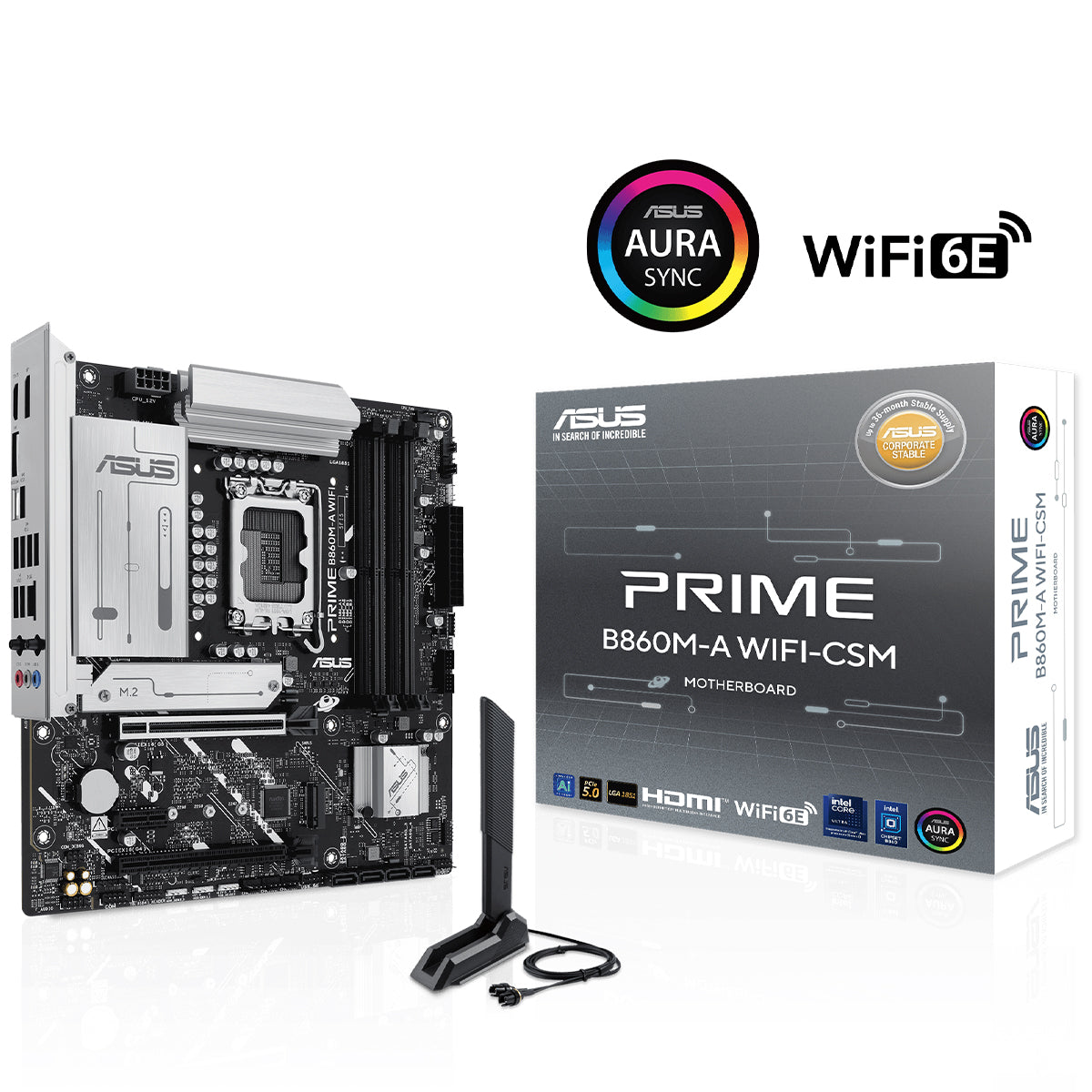

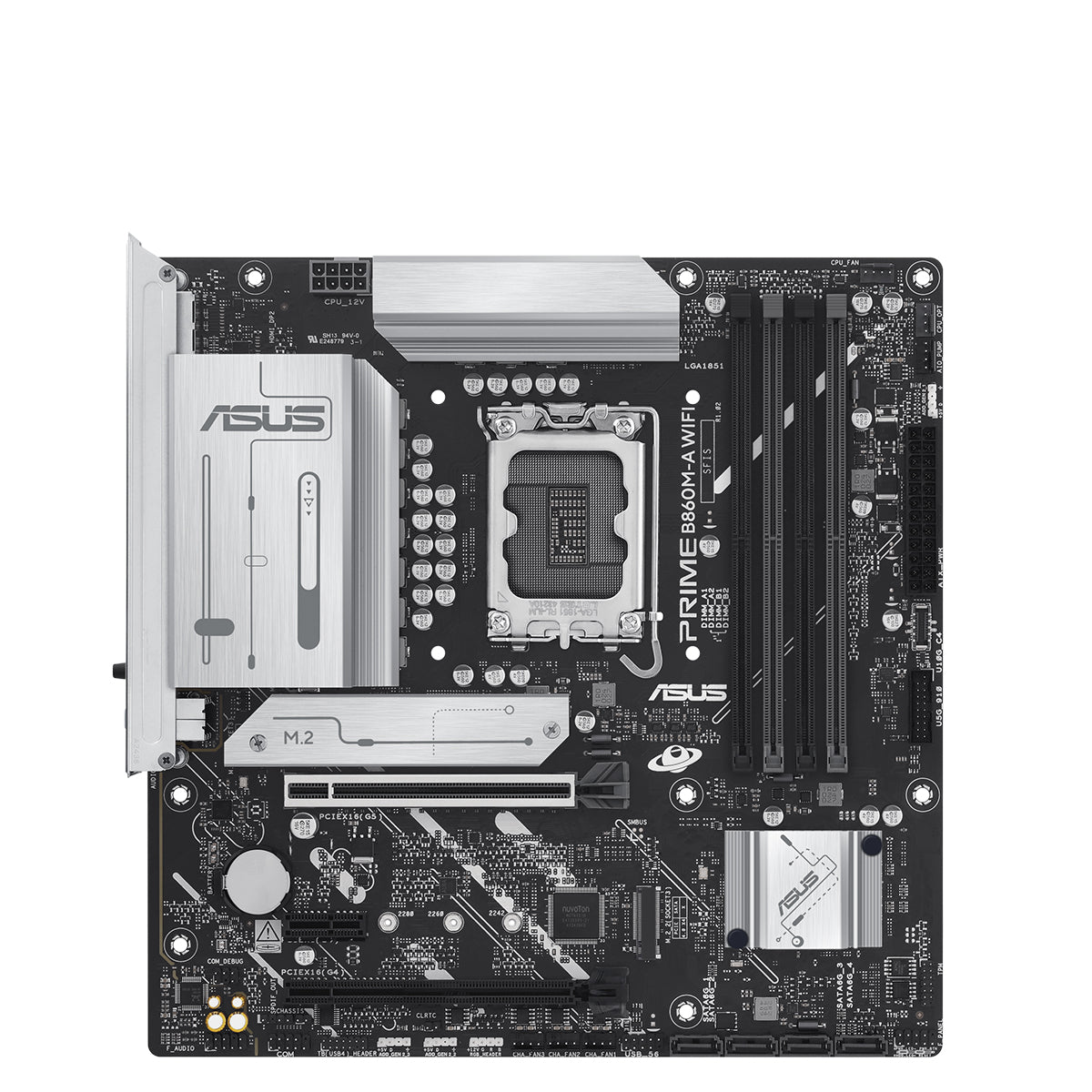

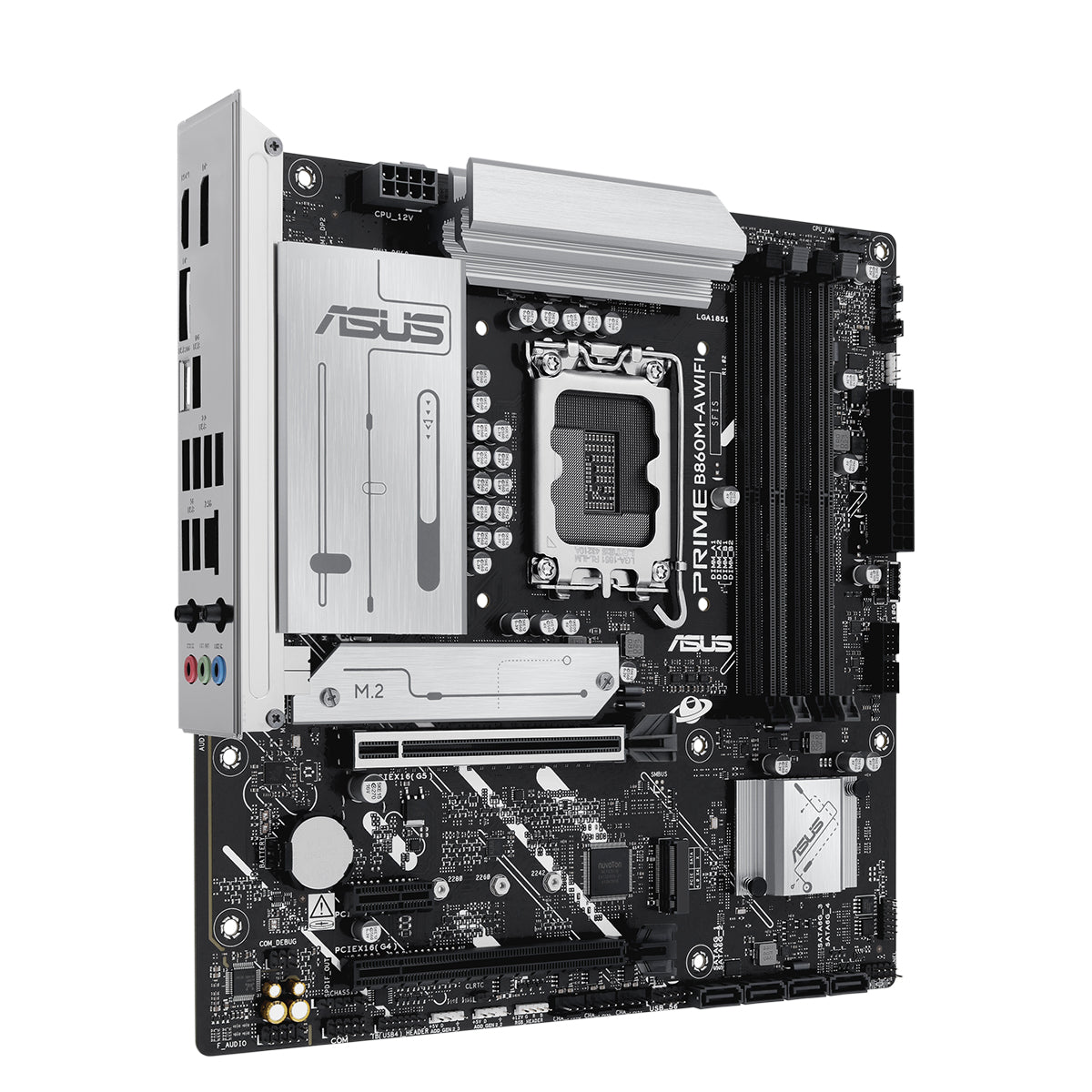

ASUS PRIME B860M-A WIFI-CSM mATX Motherboard

ASUS  |  SKU 71860  |  MPN PRIME B860M-A WIFI-CSM
$499.00

Order now and it ships in 2-3 working days.

In-stock at Supplier

Pickup available at Computer Lounge

Usually ready in 2-3 working days.

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

ASUS PRIME series motherboards

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations, and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

Robust Power Design

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860M-A WIFI-CSM is designed to meet the needs of high-core-count CPUs. It features 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability, and performance for both current and future Intel® processors.

  • Six-layer PCB design: The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
  • ProCool connector: Proprietary connectors augment the motherboard’s link to the power supply with an 8-pin connector that passes 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.
  • Power Saving: Optimize power with CPU, lighting, and fan settings.
  • Digi+ VRM control: The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory through a two-phase tuning process, optimizing the clock driver and memory frequency for peak performance and stability at DDR5-7600 or higher.

DIMM Fit

DIMM Fit analyzes memory modules to optimize performance and pinpoint potential issues, ensuring peak efficiency, compatibility, and system stability for overclockers, gamers, and content creators alike.

Two M.2 slots (up to 128Gbps)

The PRIME B860M-A WIFI-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, and another that supports 64Gbps via PCIe 4.0, enabling faster boot-up and app load times.

Cooler by Design

The PRIME B860M-A WIFI-CSM motherboard is engineered with multiple onboard heatsinks and hybrid fan headers for optimal cooling under intense workloads.

ASUS Fan Xpert 2+

Provides comprehensive fan control, including Auto-Tuning for parameter configuration, Extreme Quiet mode for reduced noise, and UEFI BIOS fan controls.

Empowering Connections

The PRIME B860M-A WIFI-CSM motherboard offers a versatile range of connectivity, including support for WiFi 6E, the latest version of PCI Express, and numerous USB ports with Type-C connections.

  • WiFi 6E: Built-in WiFi 6E4 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.
  • USB 20Gbps port: A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps.
  • PCIe 5.0 slot: The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Personalization

The PRIME B860M-A WIFI-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

DIY Friendly

The PRIME B860M-A WIFI-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Specifications

Model PRIME B860M-A WIFI-CSM
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the support page.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 2 x DisplayPort
1 x HDMI™ port
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots Intel® Core™ Ultra Processors (Series 2):
- 1 x PCIe 5.0 x16 slot
Intel® B860 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x1 slot
- To ensure compatibility of the installed device, please refer to the support page.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports:
Intel® Core™ Ultra Processors (Series 2):
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E:
- 2x2 Wi-Fi 6E (802.11ax), supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
** Bluetooth® version may vary. Refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 8 ports):
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports):
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port, and USB_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC:
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

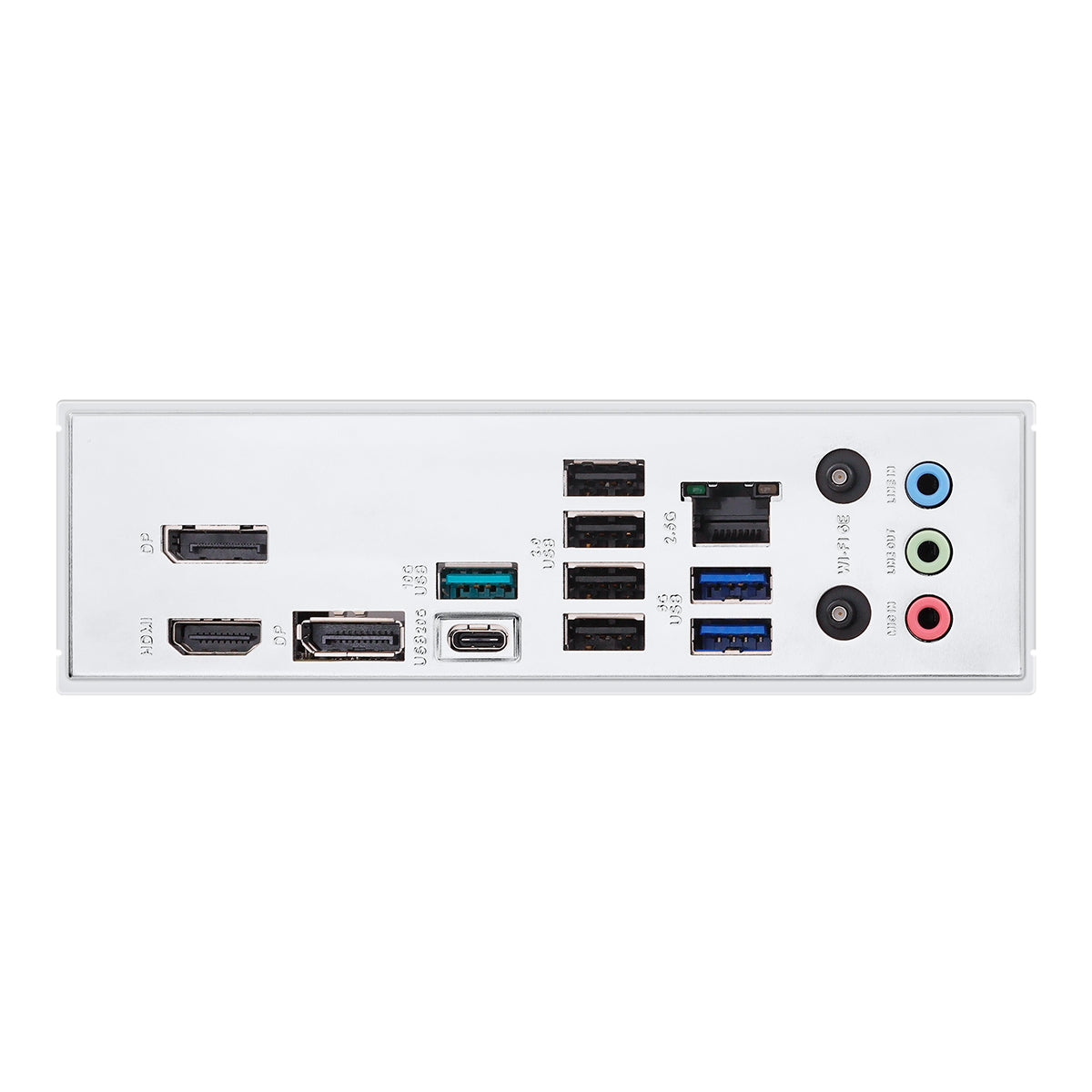

Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors Fan and Cooling Related:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
Power Related:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
Storage Related:
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
USB:
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous:
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front System Panel header
- 1 x Thunderbolt™ (USB4®) header
Special Features ASUS 5X PROTECTION III:
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design:
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution:
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY:
- ProCool
- Pre-mounted I/O shield
Aura Sync:
- Aura RGB header
- Addressable Gen2 headers
BIOS 1 x 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
ASUS EZ Flash 3
ASUS CrashFree BIOS 3
F11 EZ Mode
F6 Qfan Control
My Favorites
Last Modified Log
Search Function
ASUS DRAM SPD (Serial Presence Detect) memory information
