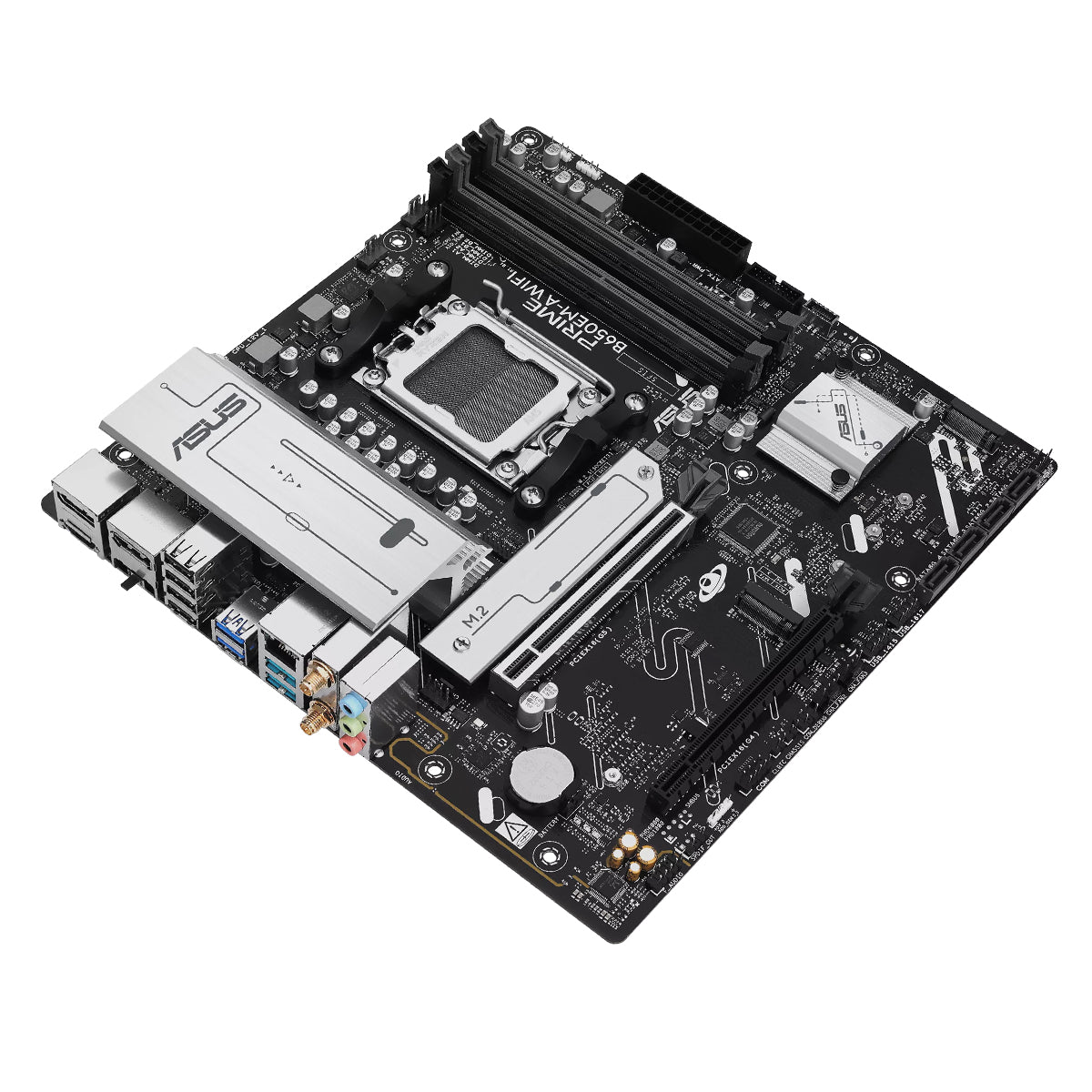

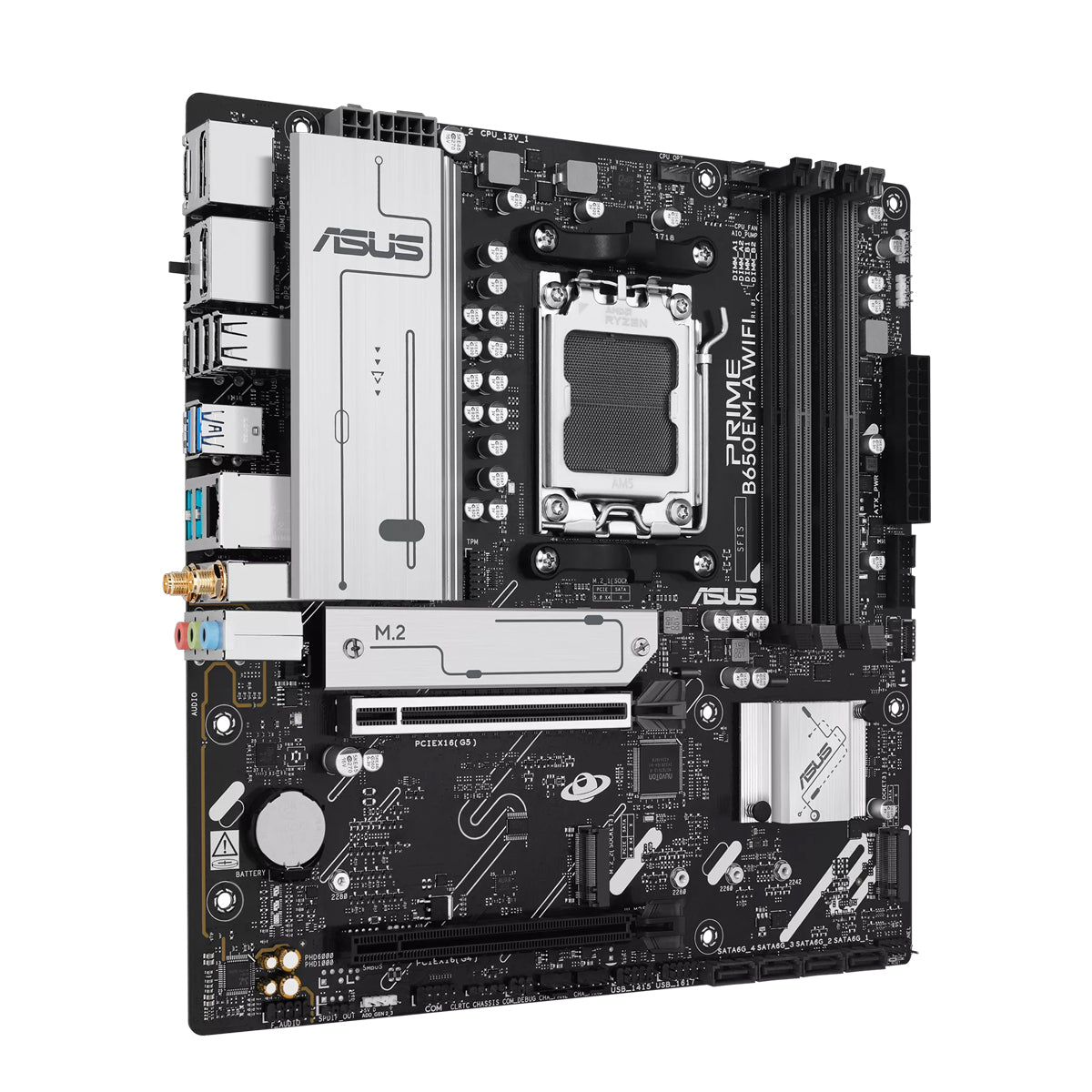

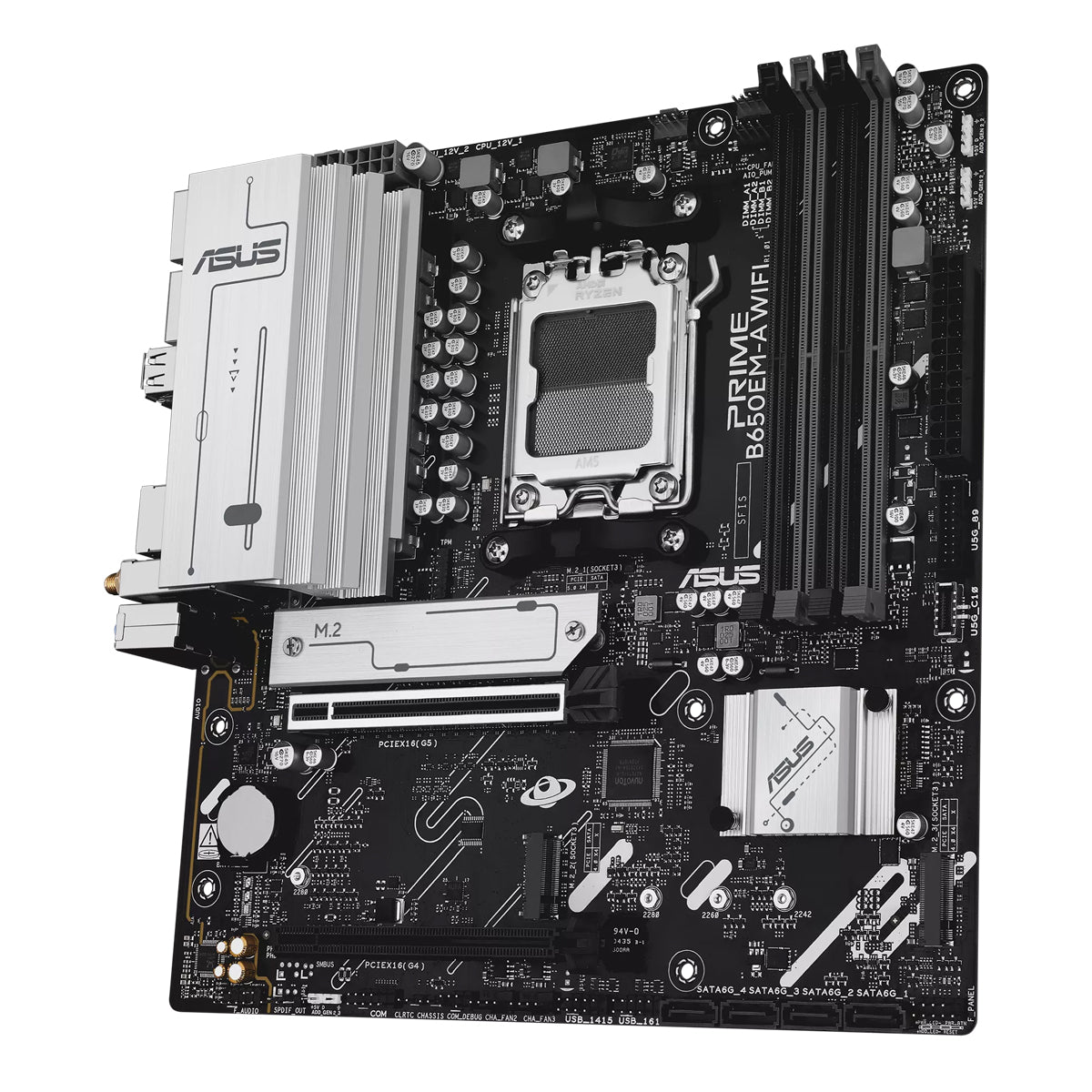

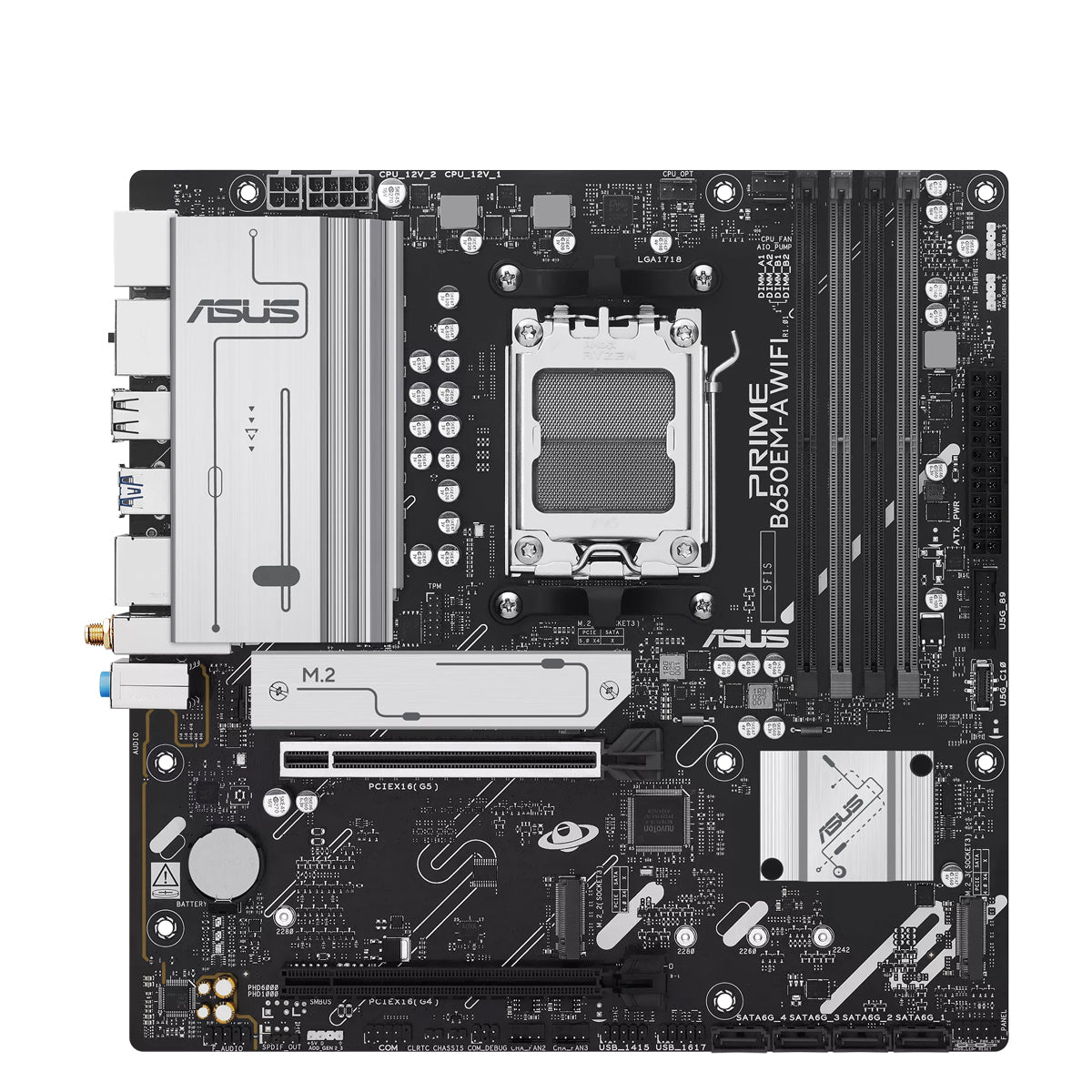

ASUS PRIME B650EM-A WIFI Motherboard
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Ready for Advanced AI PC
Designed for the future of AI computing, this motherboard provides the power, stability, and connectivity required for demanding AI applications.
AM5 Socket Support
Compatible with AMD Ryzen™ desktop processors, ensuring high performance and future upgrade flexibility.
Ultrafast Connectivity
Features Wi-Fi 6, a PCIe 5.0 x16 slot, a PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, and front USB 5Gbps Type-C® support for seamless data transfer and networking.
Comprehensive Cooling
Equipped with VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ to maintain stable temperatures and enhance long-term durability.
Unmatched Personalization
Includes three Addressable RGB Gen 2 headers, fully customizable through ASUS-exclusive Aura Sync RGB lighting software.
Additional Features
AMD B650 Micro-ATX motherboard with DDR5 support, PCIe 5.0 readiness, three M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, dual DisplayPort, HDMI™, and BIOS FlashBack™ functionality.
Specifications
Specifications
| Model | PRIME B650EM-A WIFI |
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on CPU Refer to CPU/Memory Support list or ASUS Support * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary by CPU. Refer to AMD CPU specifications. ** Supports max. 8K@30Hz as per DisplayPort 1.4 *** Supports 4K@60Hz as per HDMI 2.1 |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode) Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x1 mode) * Check PCIe bifurcation table on ASUS support ** Specifications vary by CPU types. Refer to ASUS support for peripheral compatibility |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: M.2_1 Key M 2280 PCIe 5.0 x4, M.2_2 Key M 2280 PCIe 4.0 x4 Ryzen™ 8000: M.2_1 Key M 2280 PCIe 4.0 x4, M.2_2 Key M 2280 PCIe 4.0 x4/x2 B650 Chipset: M.2_3 Key M 2242/2260/2280 PCIe 4.0 x4 4 x SATA 6Gb/s ports * Specifications vary by CPU types |
| RAID Support | AMD RAIDXpert2 Technology Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2.4/5GHz Bluetooth® v5.4* * Version may vary; check Wi-Fi module manufacturer's website |
| USB | Rear (8 ports): 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front (7 ports): 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 additional ports), 2 x USB 2.0 headers (4 additional ports) * USB Type-C® power delivery max 5V/3A |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC* - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers * Requires HD audio module in front panel |

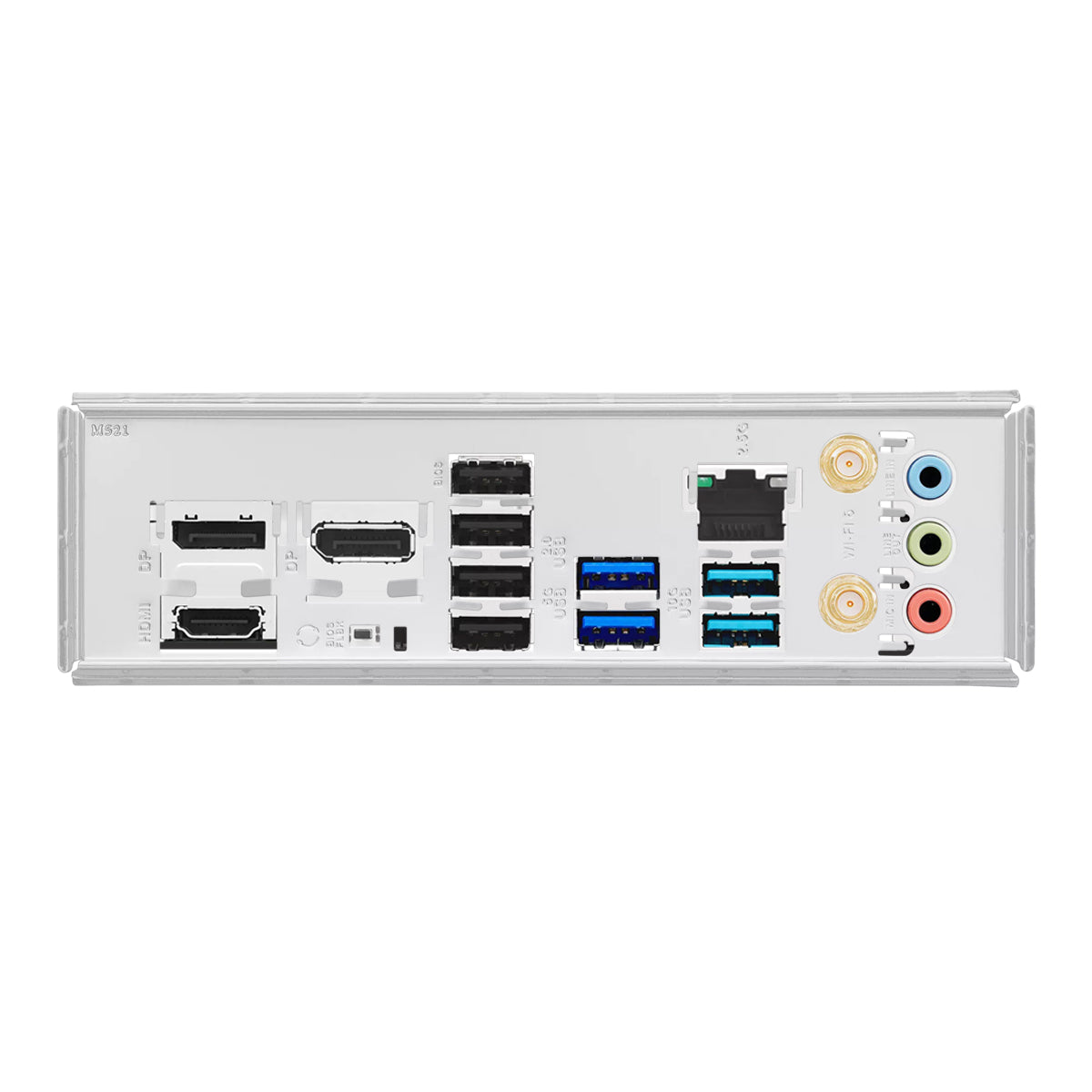

| Back Panel I/O | 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) 2 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O | Fan & Cooling: 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan headers Power: 1 x 24-pin Main, 1 x 8-pin +12V CPU, 1 x 4-pin +12V CPU Storage: 3 x M.2 slots, 4 x SATA ports USB: 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 headers Misc: 3 x Addressable RGB Gen2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM Port, 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x SPI TPM, 1 x Front Panel System header |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal Solution: M.2 heatsink, VRM heatsink design ASUS EZ DIY: BIOS FlashBack™ button & LED Aura Sync, Addressable RGB Gen2 headers |
| Software Features | ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation) AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner ASUS DriverHub, ASUS CPU-Z, Adobe Creative Cloud (Trial), Norton 360 Deluxe (60 Days), WinRAR (40 Days) UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, EZ Mode * See ASUS Support for more info |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables |
| Miscellaneous | 1 x ASUS Wi-Fi moving antenna, 1 x I/O Shield, 1 x M.2 rubber package, 1 x Screw package for M.2 SSD |
| Documentation | 1 x Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
