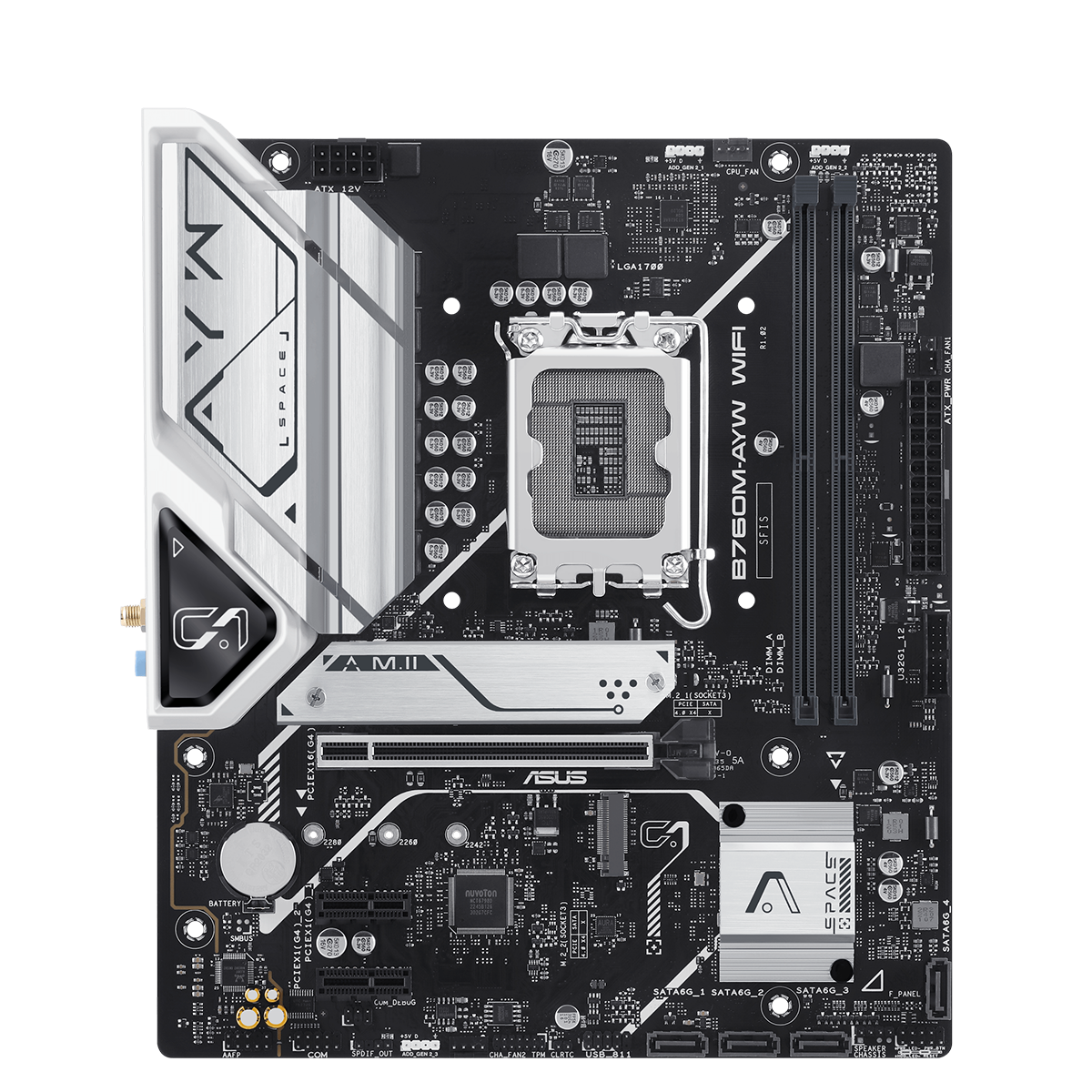

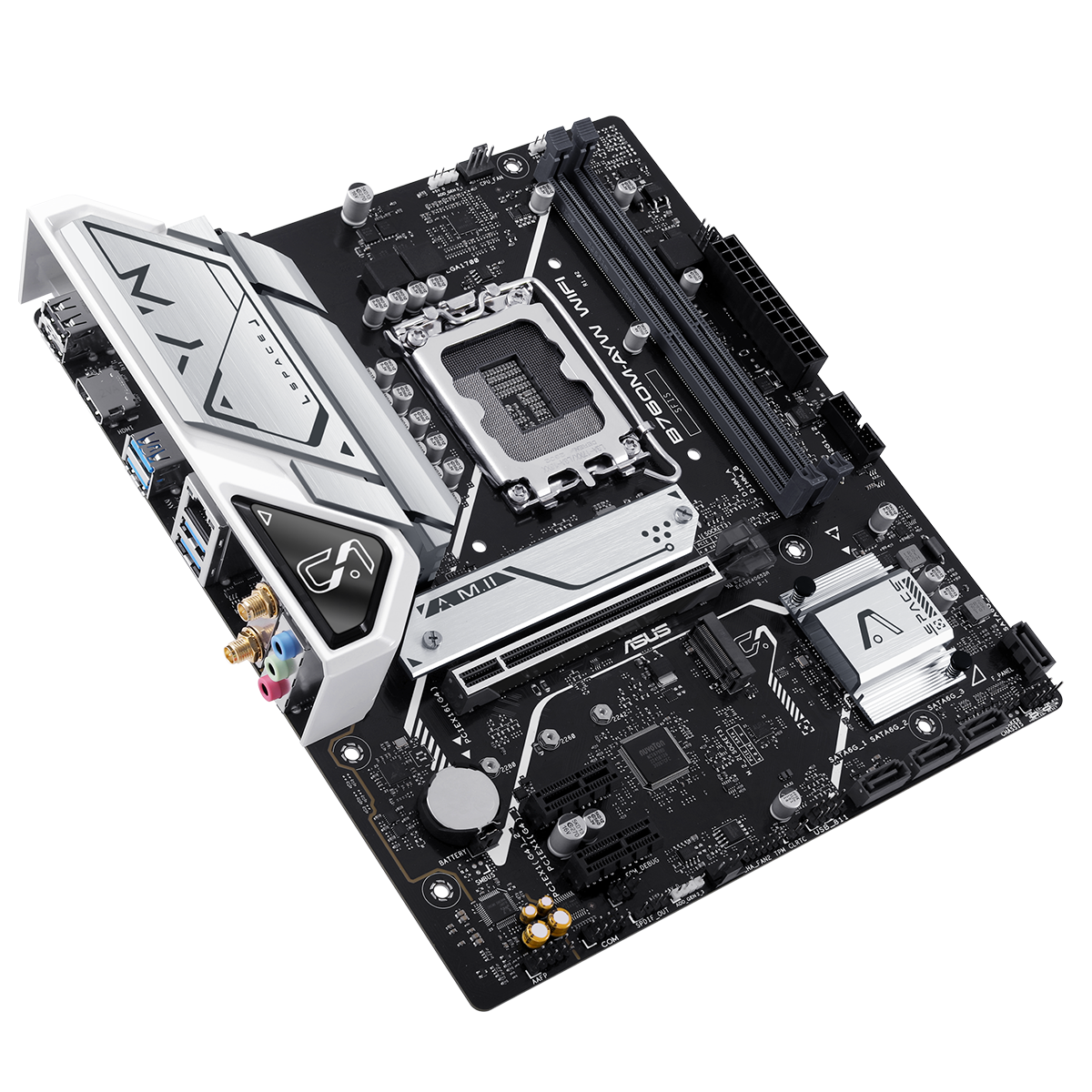

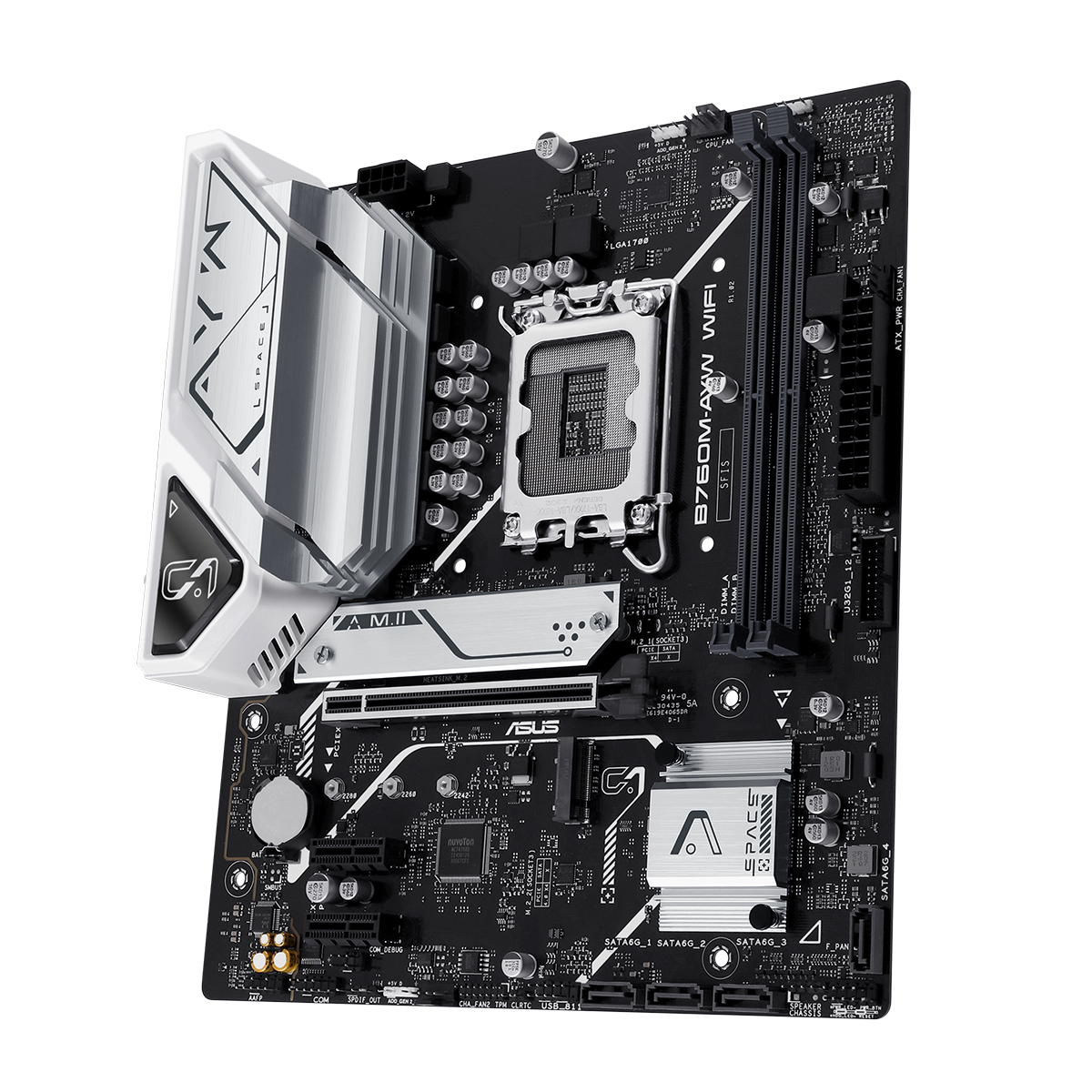

ASUS B760M-AWY WIFI DDR5 mATX Motherboard

ASUS B760M-AYW WIFI

An Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, WiFi 6, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, and Aura Sync.

Ready for Advanced AI PC

Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.

Intel® LGA 1700 Socket

Ready for 14th, 13th, and 12th Gen Intel® processors.

Ultrafast Connectivity

• PCIe 4.0
• Two PCIe 4.0 M.2 slots
• Realtek 2.5Gb Ethernet
• WiFi 6
• Front USB 3.2 Gen 1 support

Comprehensive Cooling

• VRM heatsink
• M.2 heatsink
• PCH heatsink
• Hybrid fan headers and Fan Xpert 2+

Aura Sync RGB Lighting

Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

Flexibility

Comprehensive controls form the foundation of the ASUS B760 series. The B760M-AYW WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match your needs.

Intelligent Control

• All-Around Energy Efficiency: Optimize power consumption with CPU power limits, Aura lighting adjustments, and fan profiles.
• Flexible Air-Cooling Controls: ASUS Fan Xpert 2+ offers Extreme Quiet mode and fan control via UEFI BIOS.
• Precise Digital Power Control: Digi+ VRM provides real-time voltage control, frequency switching, and power-efficiency settings.

UEFI BIOS

The renowned ASUS UEFI BIOS provides options for configuring, tweaking, and tuning your system with features for both beginners and experienced users.

Cooling

• M.2 Heatsink: Prevents throttling during sustained transfers, with removable captive screws to reduce risk of loss.
• VRM Heatsink and Thermal Pad: Improves heat transfer from MOSFETs and chokes for better cooling performance.

Performance

• Robust Power Design: Ensures stable power for high-core-count CPUs.
• AEMP II for Ultimate DDR5 Performance: Optimizes memory clock speeds and maintains stability with ASUS Enhanced Memory Profile II.
• Two M.2 Slots (up to 64 Gbps): Supports high-speed data transfer for quicker boot-up and app load times.

Connectivity

• PCIe 4.0 Slot: Designed for the latest GPUs.
• WiFi 6: Offers peak bandwidth up to 1.2Gbps and optimized performance on crowded networks.
• Realtek 2.5 Gb Ethernet: Provides high TCP and UDP throughput for faster data transfers.
• LANGuard: Advanced network protection with improved throughput and reliability.

Audio Shielding

• Audio Shielding: Ensures precision analog/digital separation and reduced interference.
• Dedicated Audio PCB Layers: Separate layers for left and right tracks ensure consistent audio quality.
• Premium Audio Capacitors: Provides warm, natural, and immersive sound with exceptional clarity.

Overvoltage Protection

• Overvoltage Protection: Circuit design with built-in regulators to protect against high-level voltages.
• Stainless-Steel Back I/O: Corrosion-resistant panels for greater durability.

Q-Latch

The Q-Latch design makes installing or removing an M.2 SSD easy with a simple locking mechanism, eliminating traditional screws.

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
