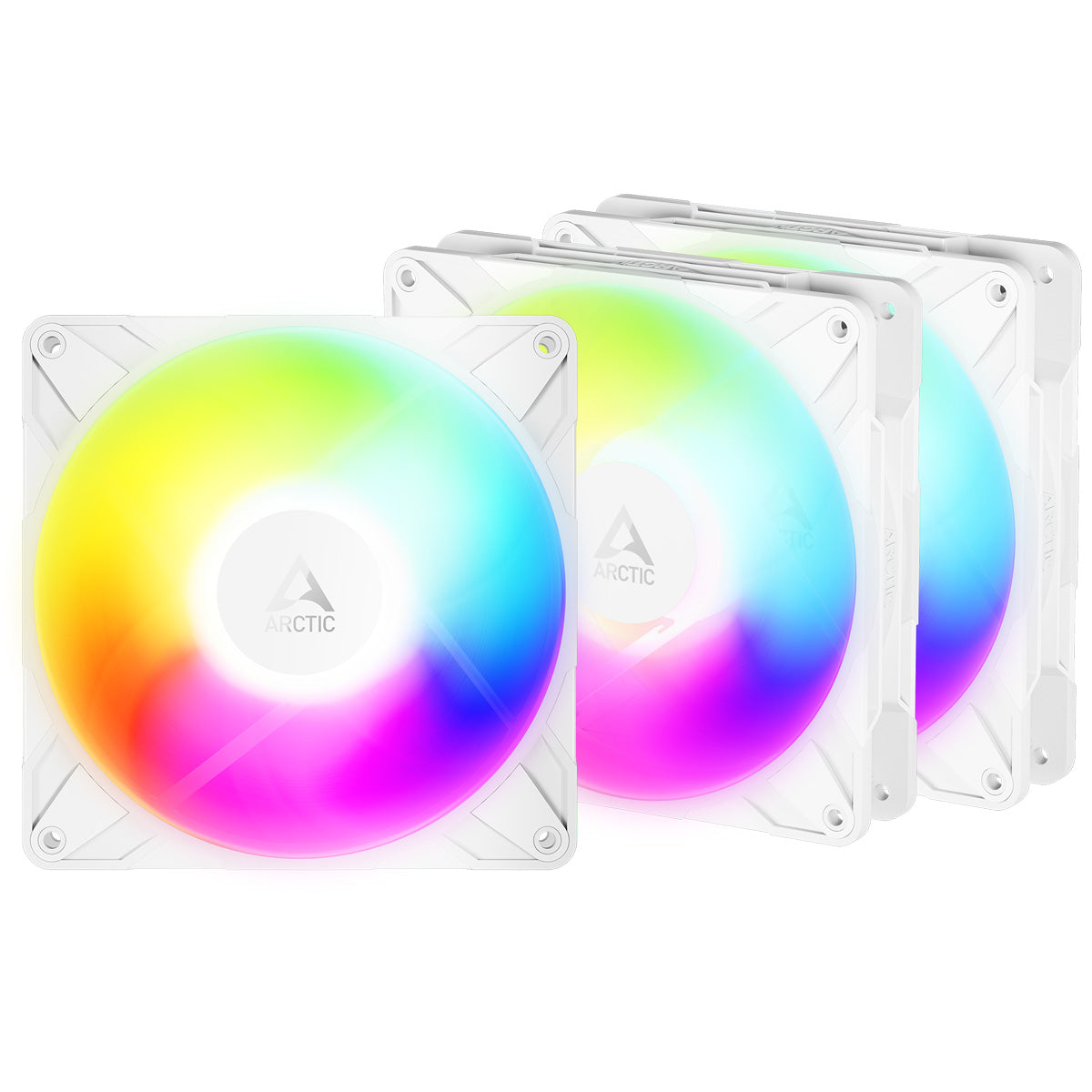

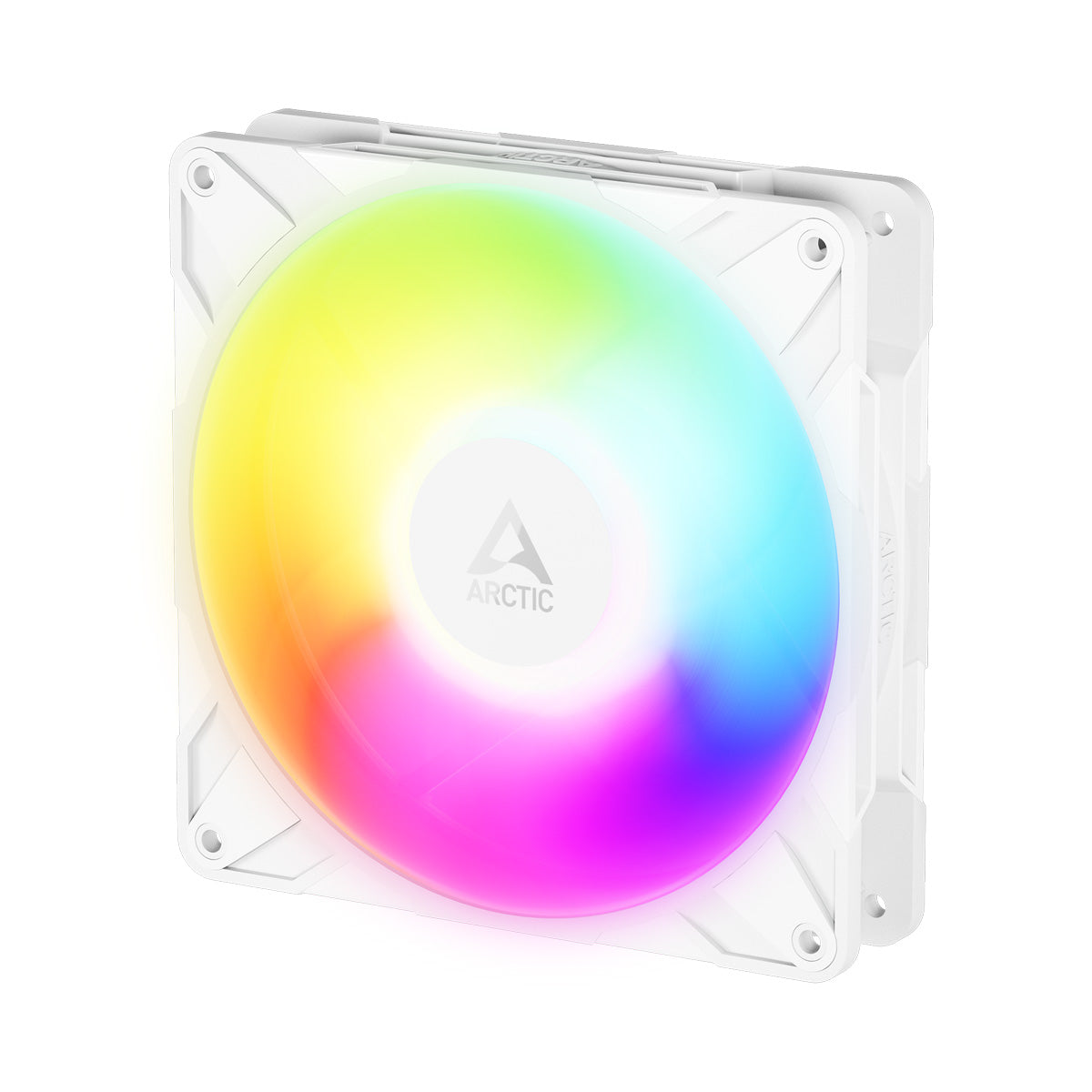

Arctic P14 PRO Reverse A-RGB 140mm Premium Cooling Fan White - 3 Pack
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Reversed Airflow
The P14 Pro Reverse is specifically designed for air intake from the back side, making it ideal for builds where conventional fans would compromise aesthetics.
Optimized Airflow Design

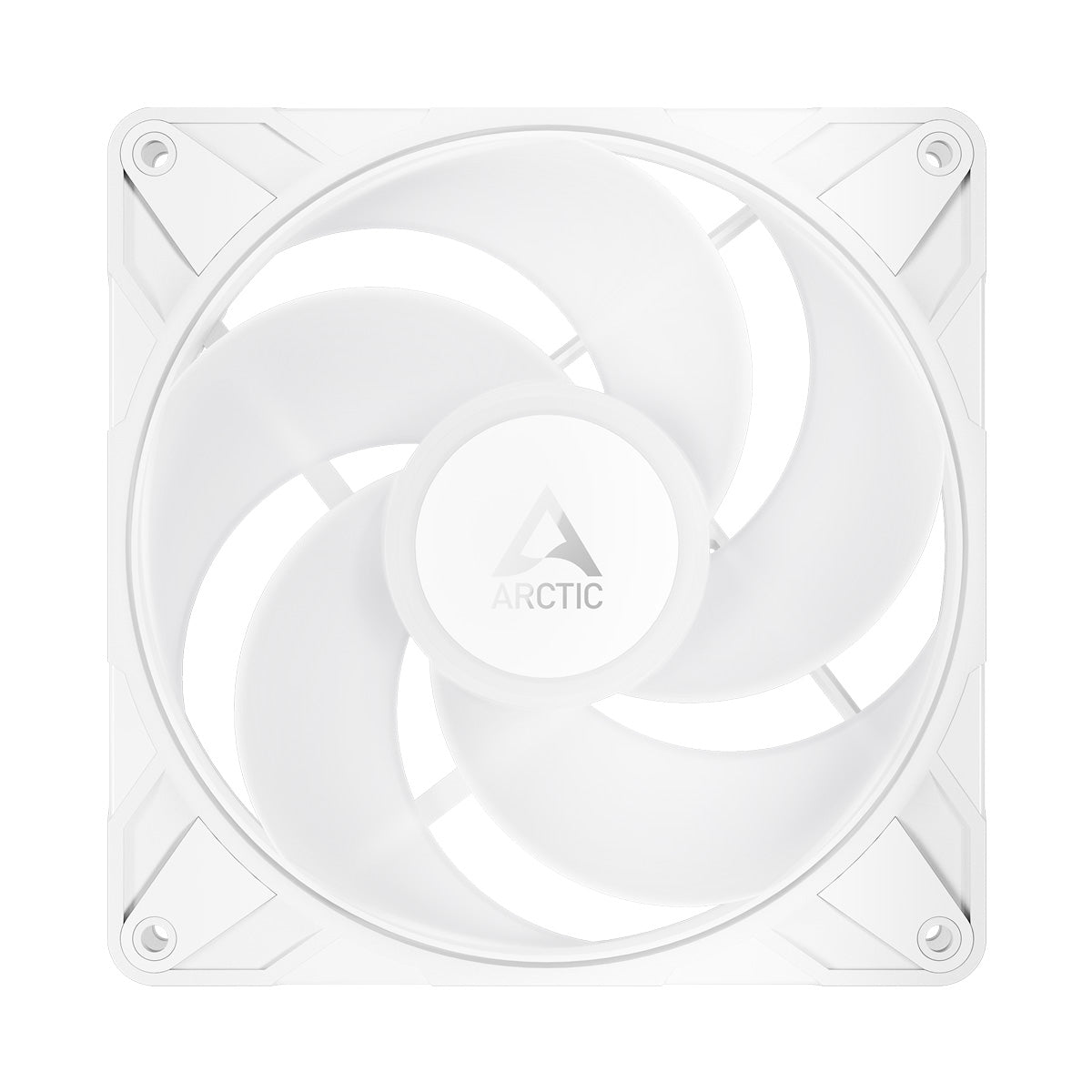

The trumpet-shaped intake and teardrop-shaped spokes guide airflow with reduced flow losses, lowering air resistance and minimizing turbulence and aerodynamic noise.
P12 Series | New IC | Black
Equipped with a state-of-the-art microcontroller that reduces motor noise, balances load fluctuations, and protects against inrush current peaks and reverse polarity.
P14 Pro Reverse Series | Better Balance – Less Vibration
An automated measuring and balancing process ensures optimal smooth operation through precisely injected balancing mass, significantly reducing vibrations.
Minimal Gap Design for Maximum Efficiency
Extremely small clearances allow for higher static pressure and improved airflow efficiency.
PST – Easy Cable Management and Synchronized PWM Control
Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously via a single motherboard header.
Optimized FDB Bearing-Shaft Design
A hydrodynamic bearing combined with an extended shaft improves pressure distribution, reduces vibrations, and ensures quieter, smoother operation.
Specifications
Specifications
| Operating Temp | 0–40 °C |

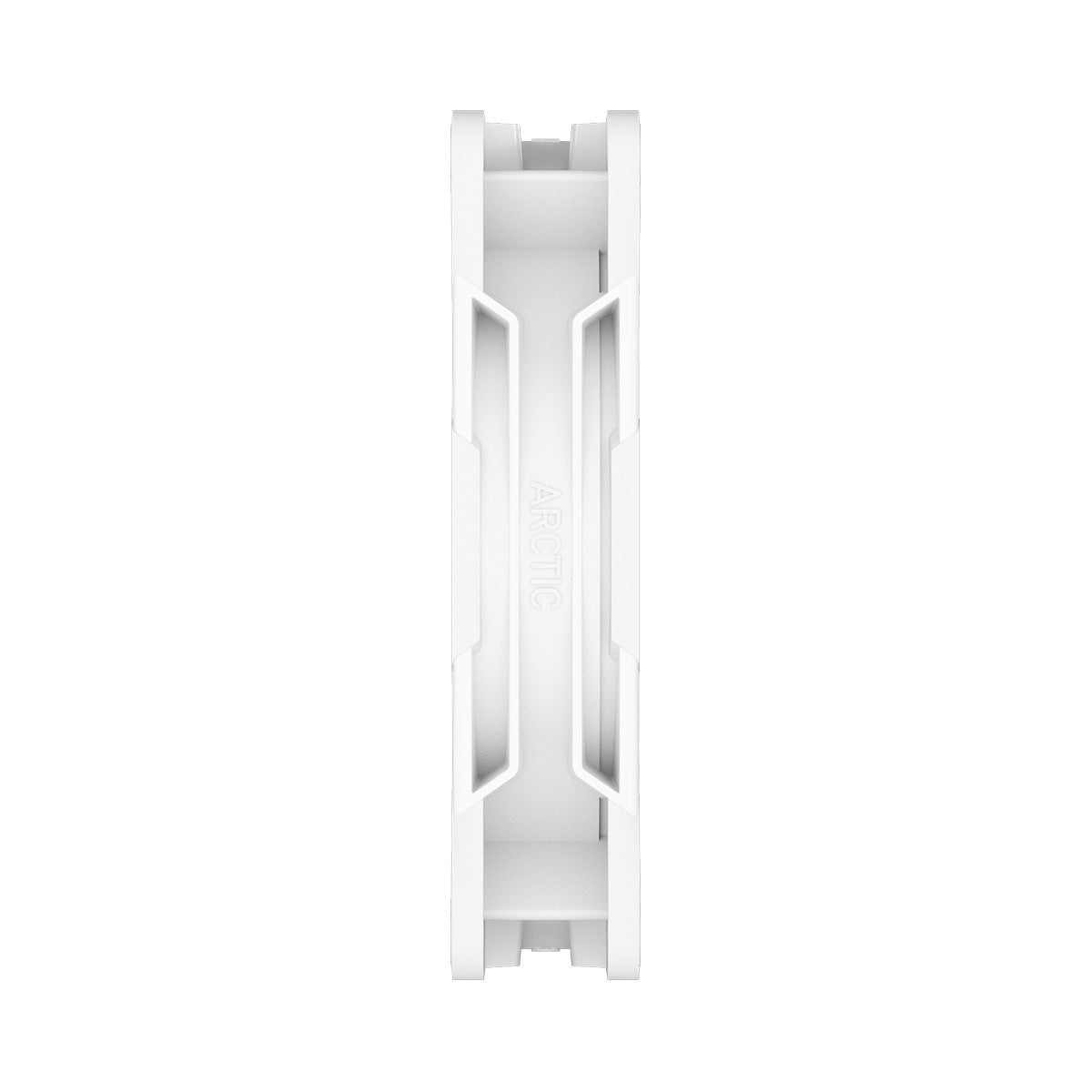

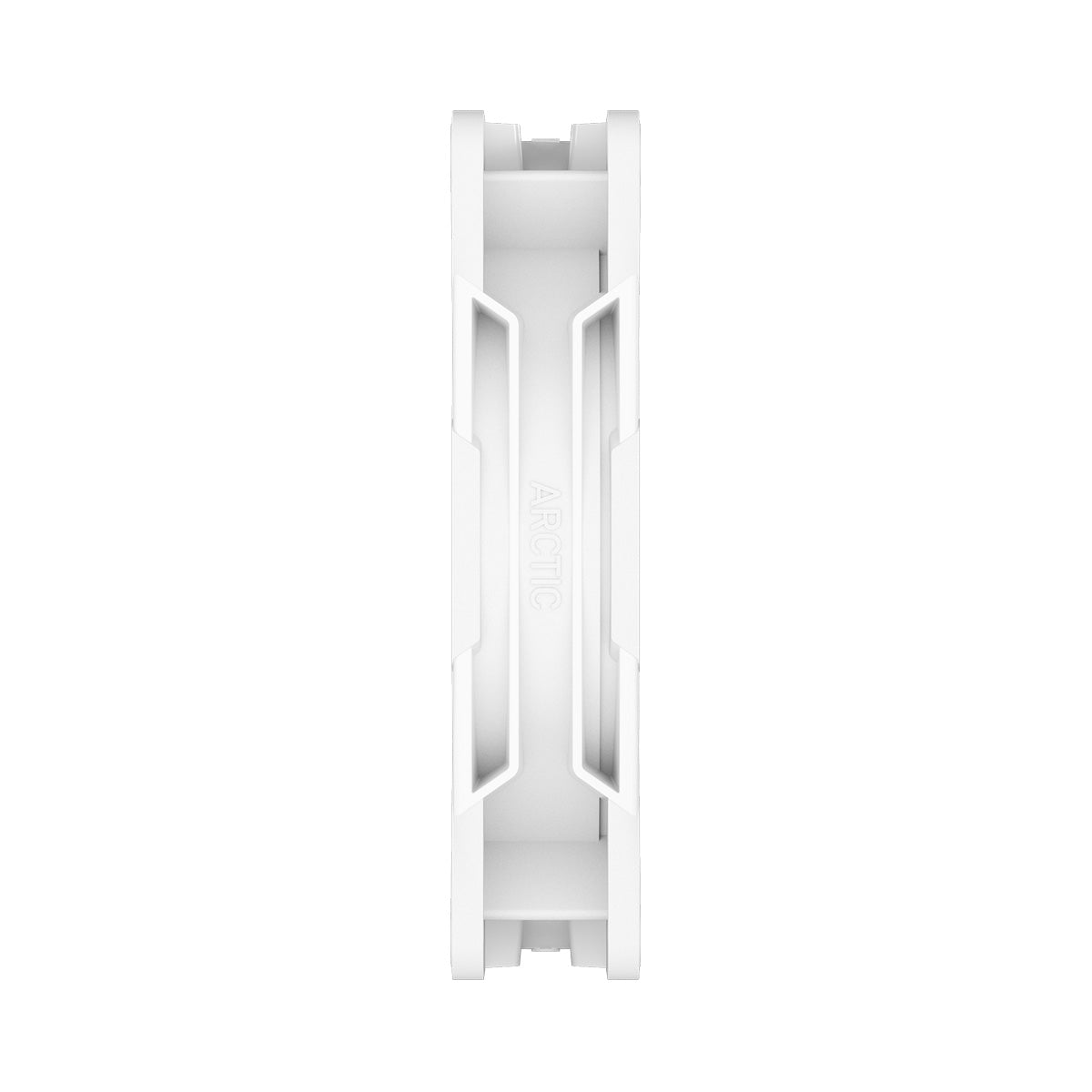

| Dimensions | 140 (L) × 140 (W) × 30 (H) mm |
| Net Weight | 253 g |
| Fan Speed |
400–2650 rpm (PWM controlled) 0 rpm below 5% PWM |
| Airflow | 98 cfm | 166.5 m³/h |
| Static Pressure | 5.1 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Voltage |
Typical: 12 V DC Start-up: 4 V DC |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm daisy-chain cable |
| Fan Connector | 4-Pin fan plug + 4-Pin socket |

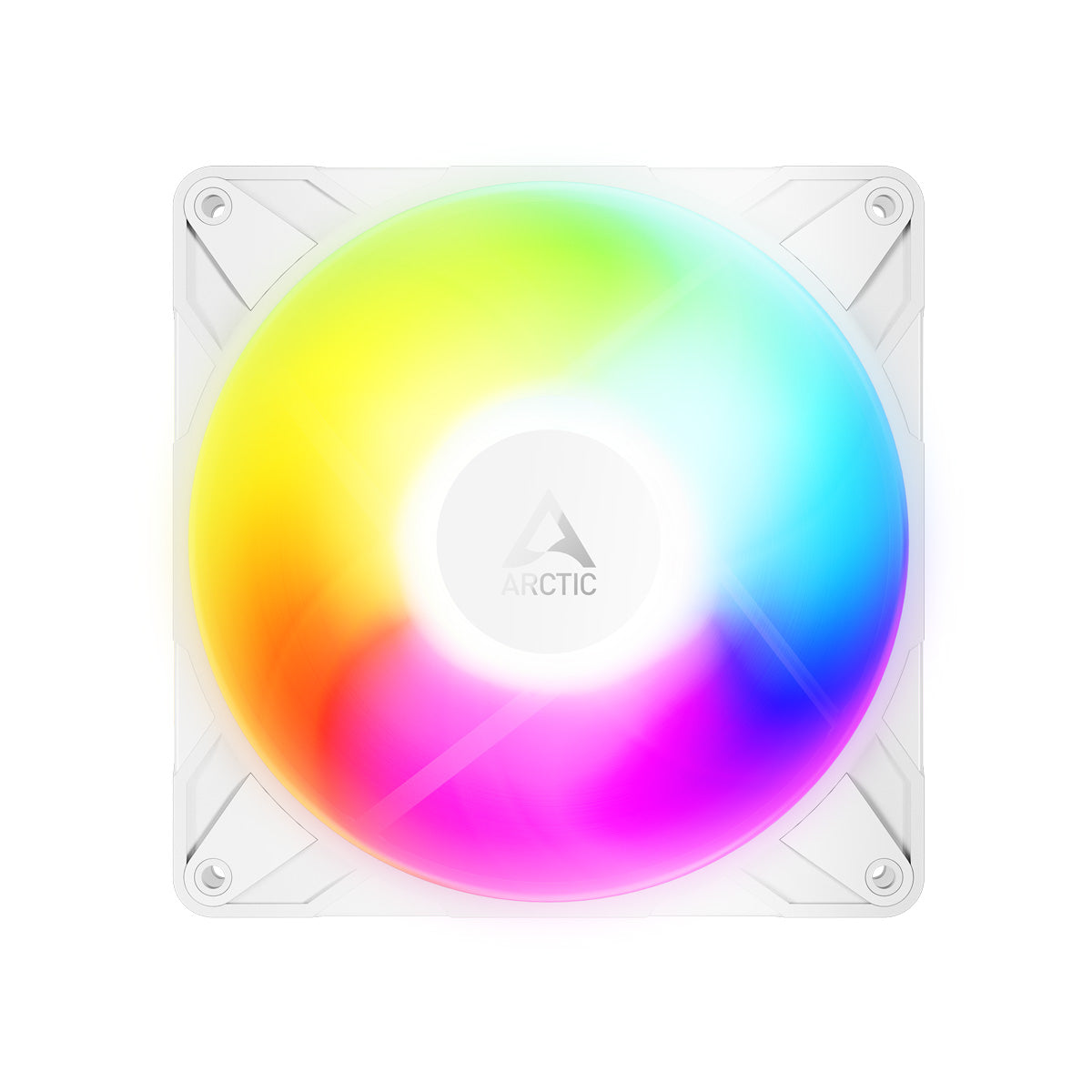

| RGB LEDs | 12× A-RGB Gen2 LEDs |
| RGB Power | 0.40 A | 5 V DC |
| RGB Connector | 3-Pin A-RGB plug + 3-Pin socket |
| Packaging Size |
Width: 144 mm Height: 100 mm Length: 148 mm |
| Packaging Weight | 0.84 kg |
