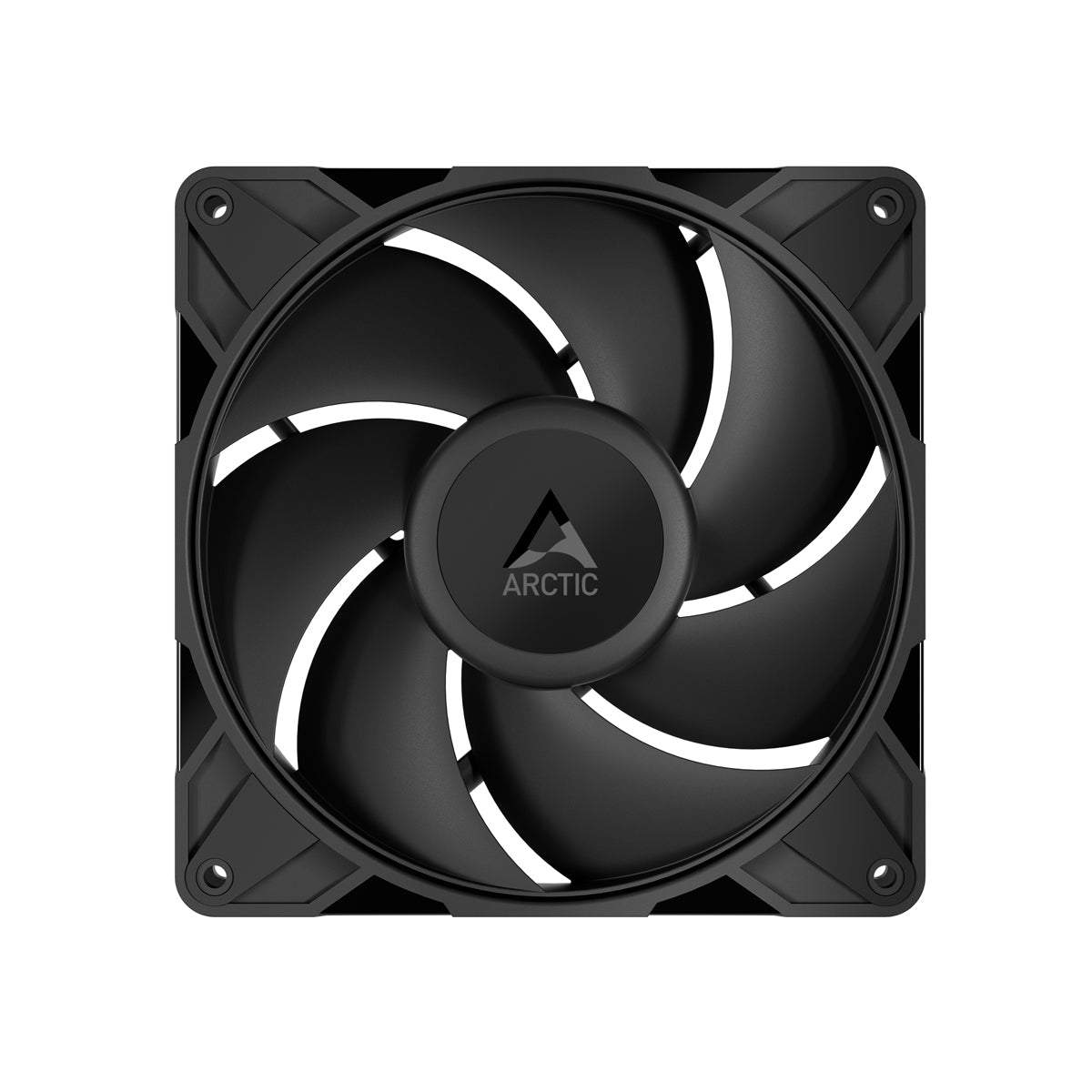

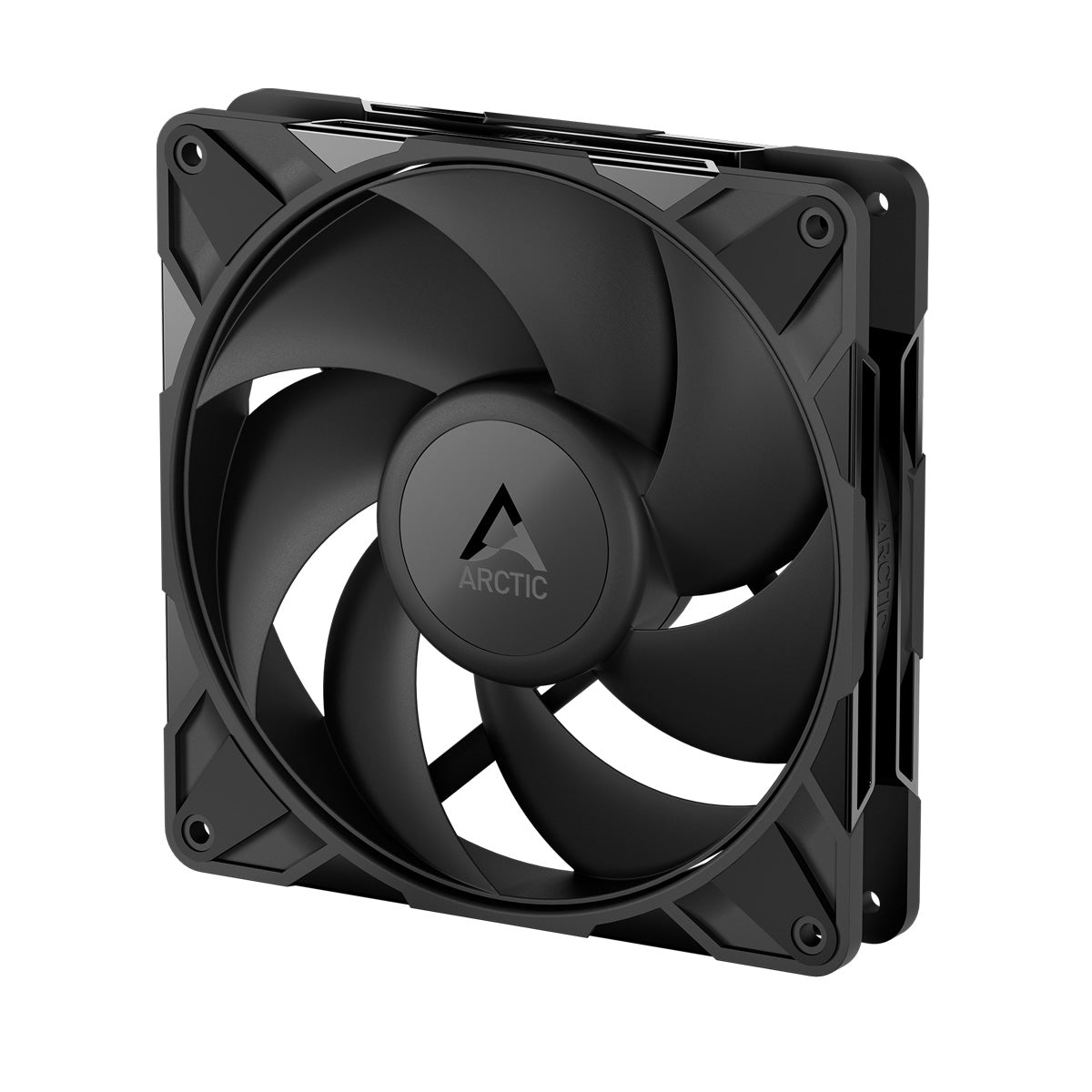

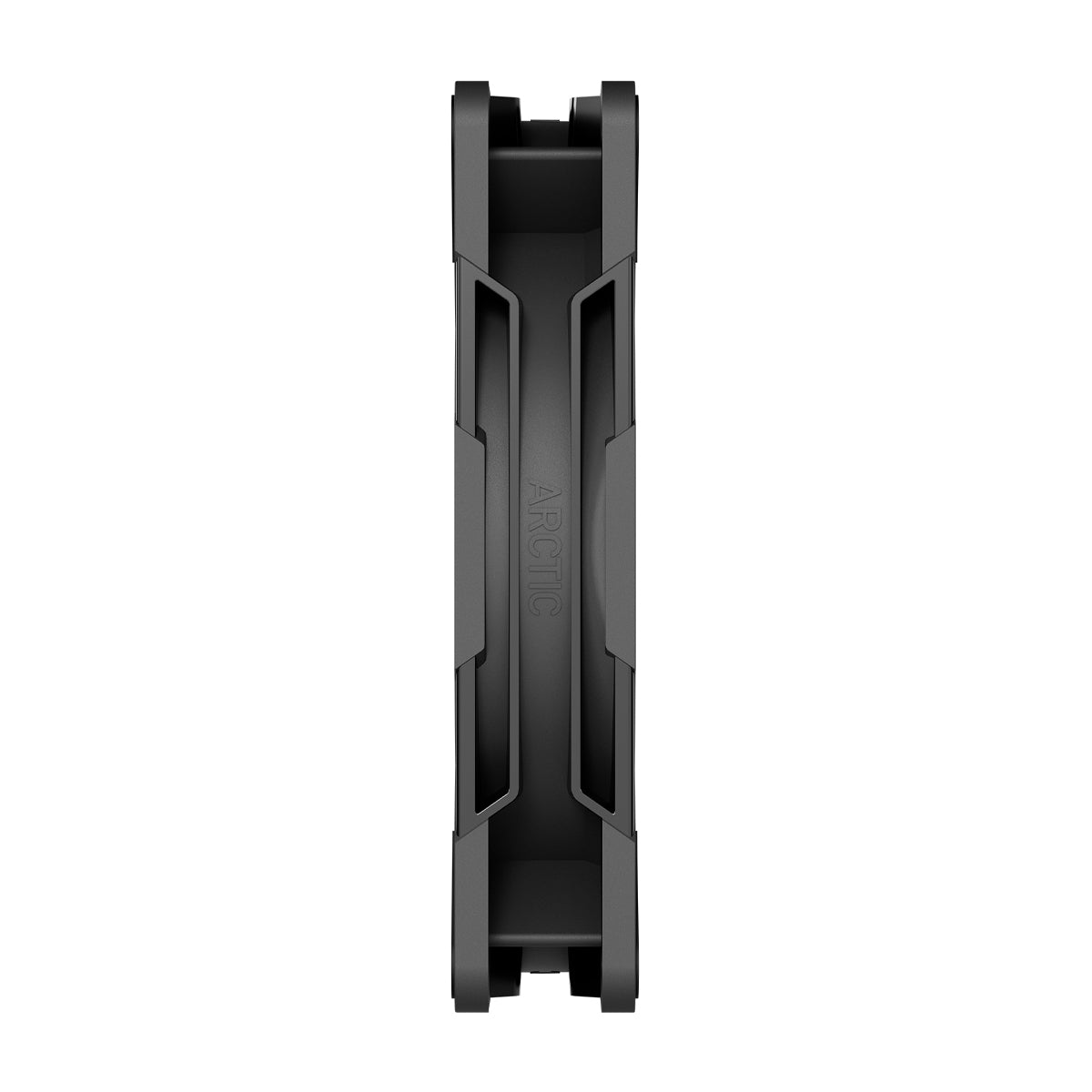

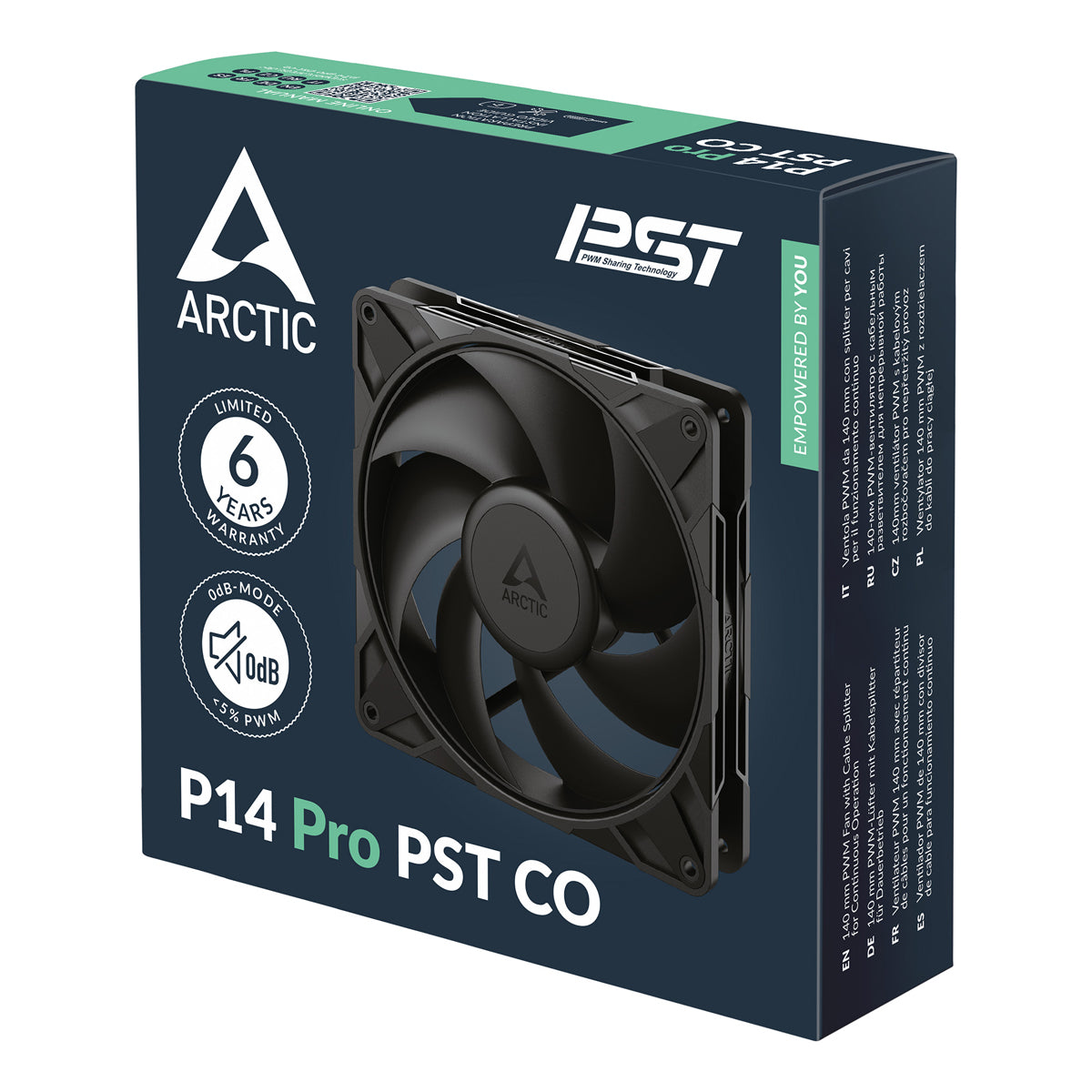

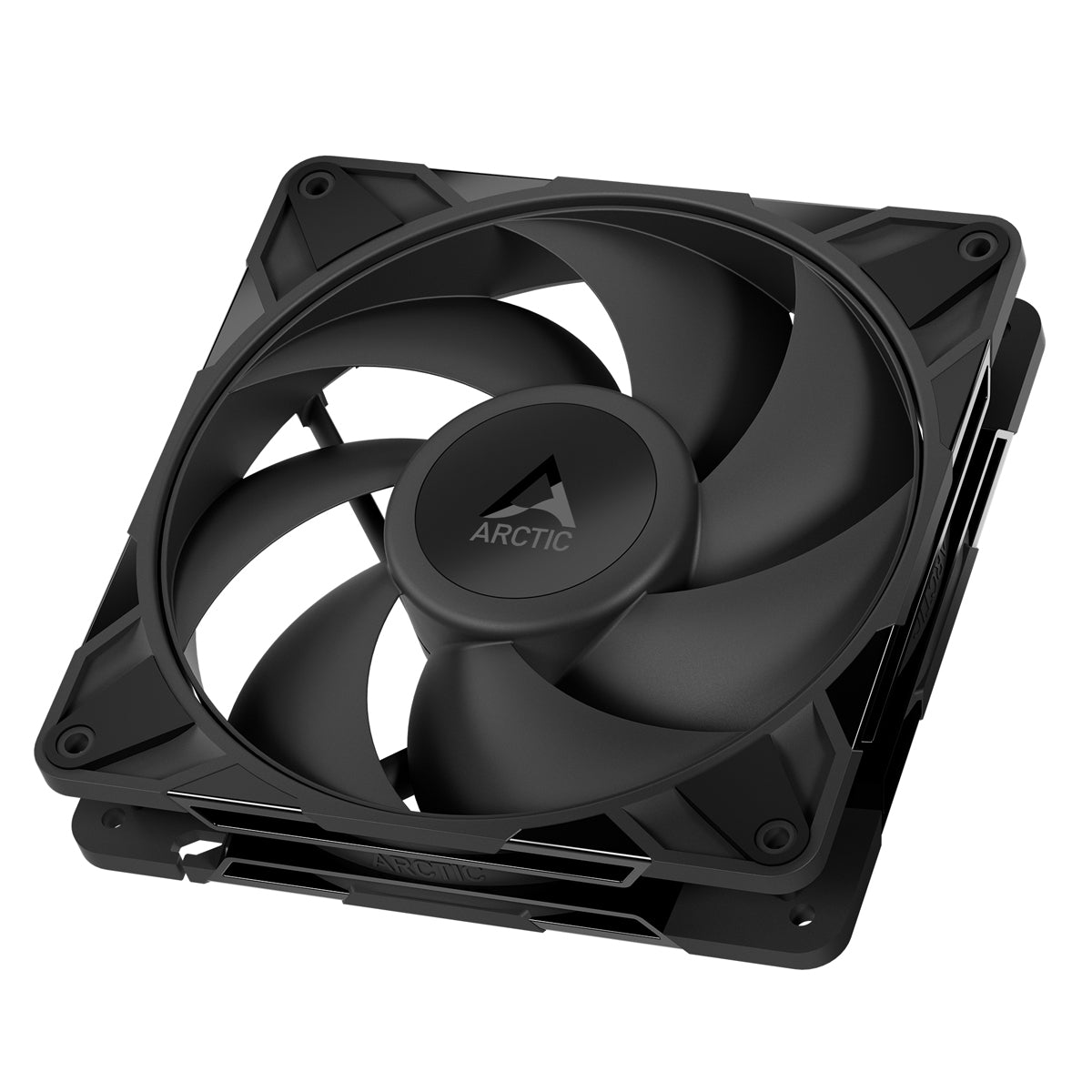

Arctic P14 PRO PST CO 140mm Premium Cooling Fan - Black
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces, making them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design provides an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (DBB)
Dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.
Automated Two-Plane Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
Delivers higher airflow and static pressure at just 25 dB(A), ideal for quiet yet powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Specifications
Specifications
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 140 (L) x 140 (W) x 27 (H) mm |
| Net Weight | 242 g |
| Fan Speed | 400–2500 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 110 cfm | 186 m³/h |
| Static Pressure | 5.2 mmH2O |
| Fan Bearing | Dual Ball Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.35 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
