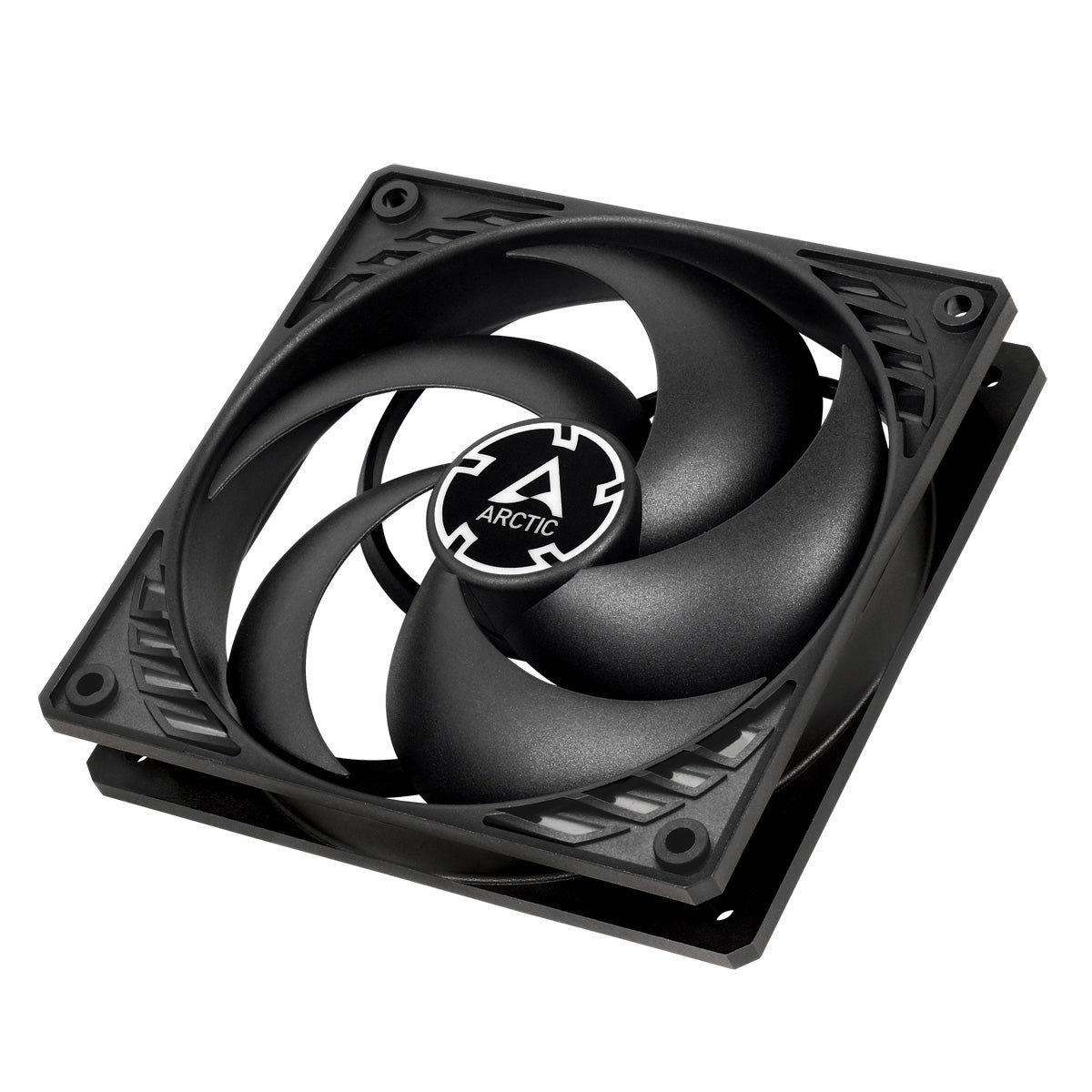

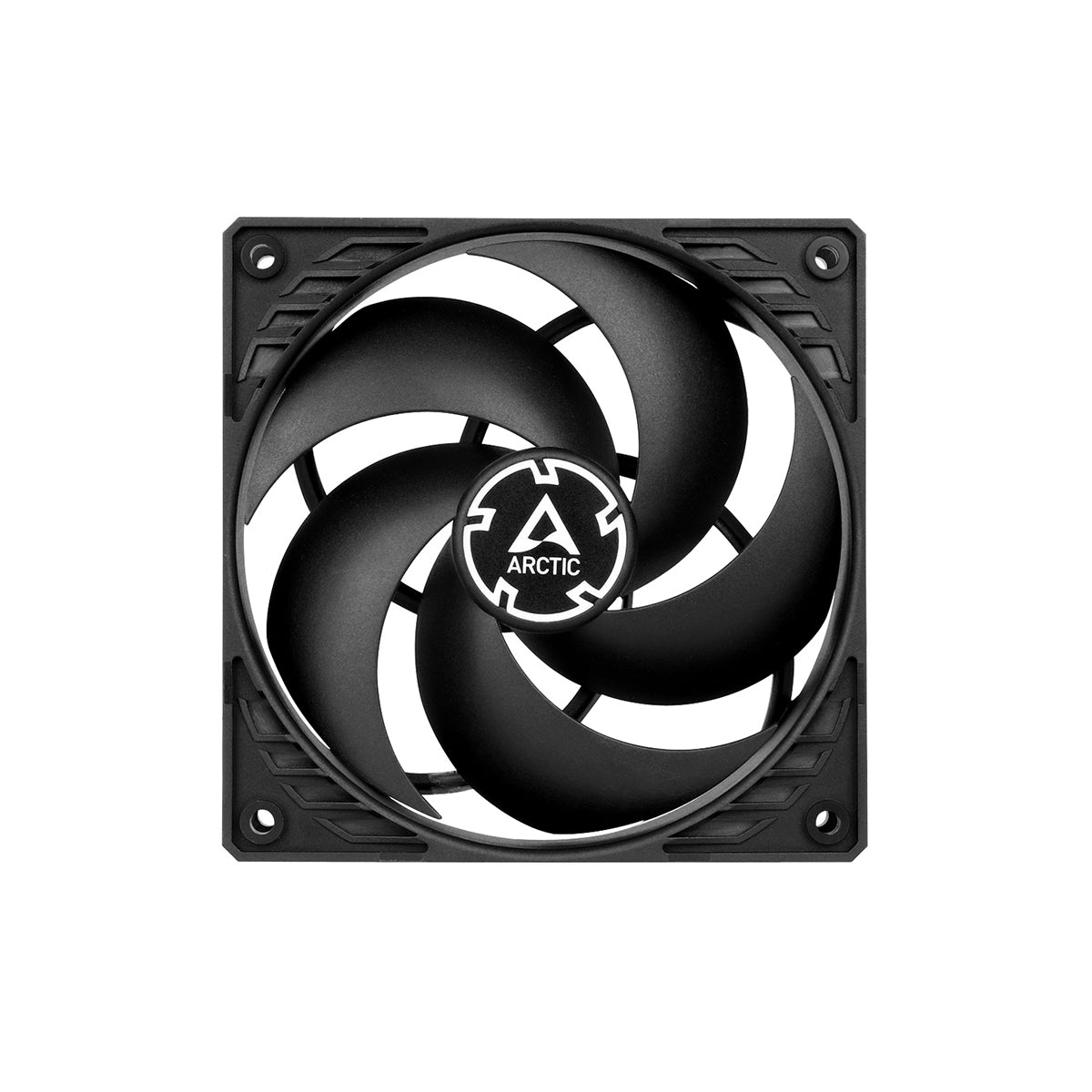

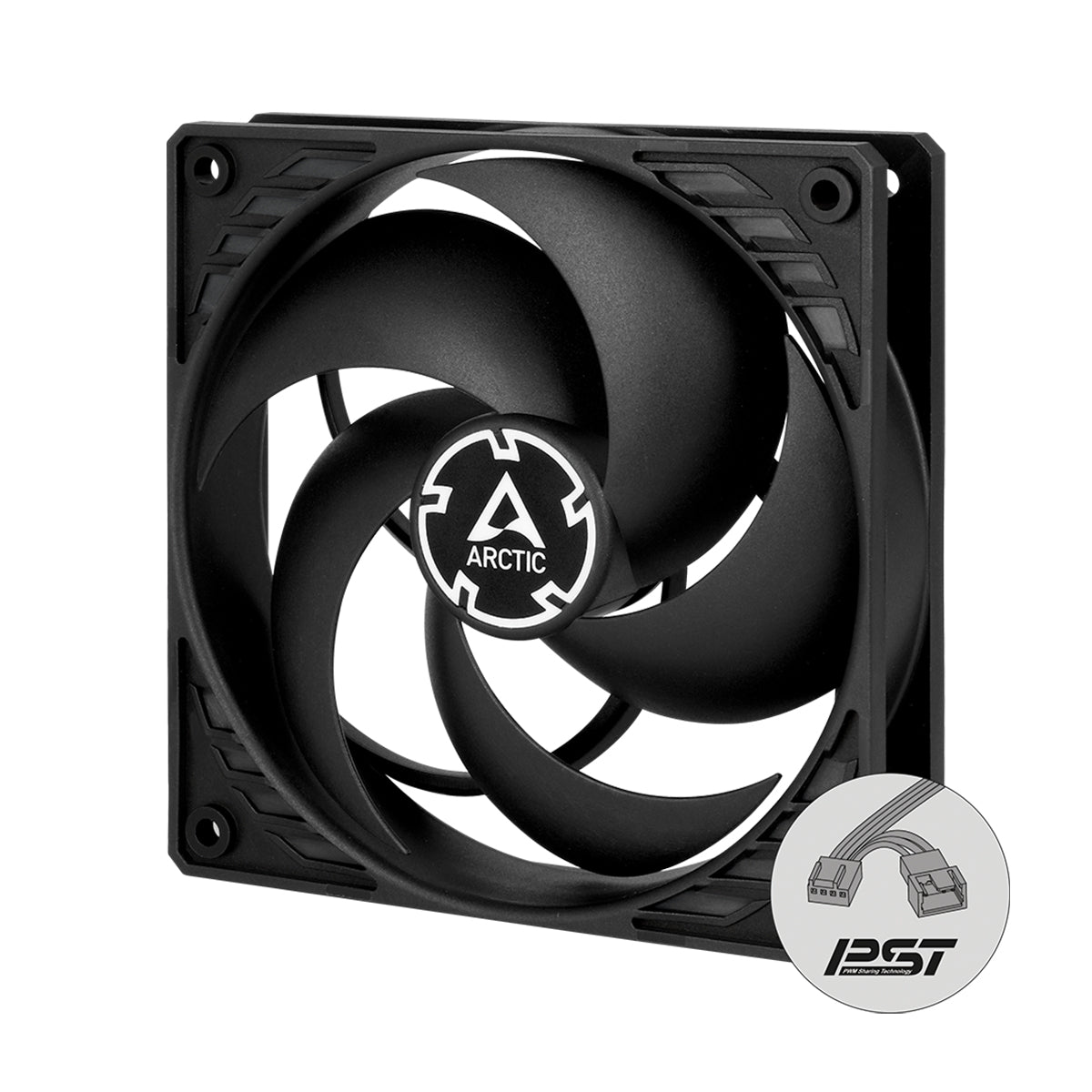

Arctic P12 PWM PST CO 120mm High Performance Fan - Black
Strong Cooling Performance | High-Quality Bearing Designed for Continuous Operation | Optimised for Airflow and Static Pressure | Daisy Chain PWM Connector
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Optimized for Static Pressure
During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators.
0 dB Mode — Zero RPM
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE while guaranteeing maximum performance when required.
Strong Cooling Performance
Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans outperformed many competitors.
More Efficient Technology
The motor is powered by a next-generation PWM IC, allowing the P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy without compromising performance.
For Continuous Operation
The premium dual ball bearing enables 24/7 continuous operation without performance loss. Contamination and high temperatures affect this bearing far less than ordinary sleeve or ball bearings, making it ideal for maximum-speed operation. Please note that ball bearings have a naturally higher bearing noise compared to conventional sleeve bearings.
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing, the new motor produces only about 5% of the vibration from the commutation of a regular DC motor without a filter. Consequently, rubber spacers are unnecessary due to the steady and smooth torque of the new motor.
Extended Life Span
A 10°C lower motor temperature roughly doubles the lifespan of a fan. The new ARCTIC motor achieves four times longer service life through its low coil temperature.
200 to 1800 RPM Regulated via PWM
With a wide range of regulation and PWM Sharing Technology (PST), the P12 PWM PST CO fan speed can be controlled synchronously with all other fans. This minimizes noise while ensuring maximum cooling performance when needed.
Two-Way Installation
- Push warm air out of the case
- Pull cool air into the case
Specifications
Specifications
Fan Speed | 200—1800 rpm PWM Controlled (0 rpm below 5% PWM) |
Airflow | 56.30 cfm | 95.70 m³/h |
Static Pressure | 2.20 mmH2O |
Noise Level | 0.3 Sone |
Operating Ambient Temperature | 0—40 °C |
Fan Frame | Standard |
Control Type | PWM PST |
Connector | 4-Pin Connector + 4-Pin Socket |
Fan Bearing | Dual Ball Bearing |
Typical Voltage | 12 V DC |
Starting Voltage | 3.9 V |
Current | Voltage | 0.1 A | 12 V DC |
Cable Length | 400 mm |
Length | 120 mm |
Width | 120 mm |
Height | 25 mm |
Weight | 145 g |
