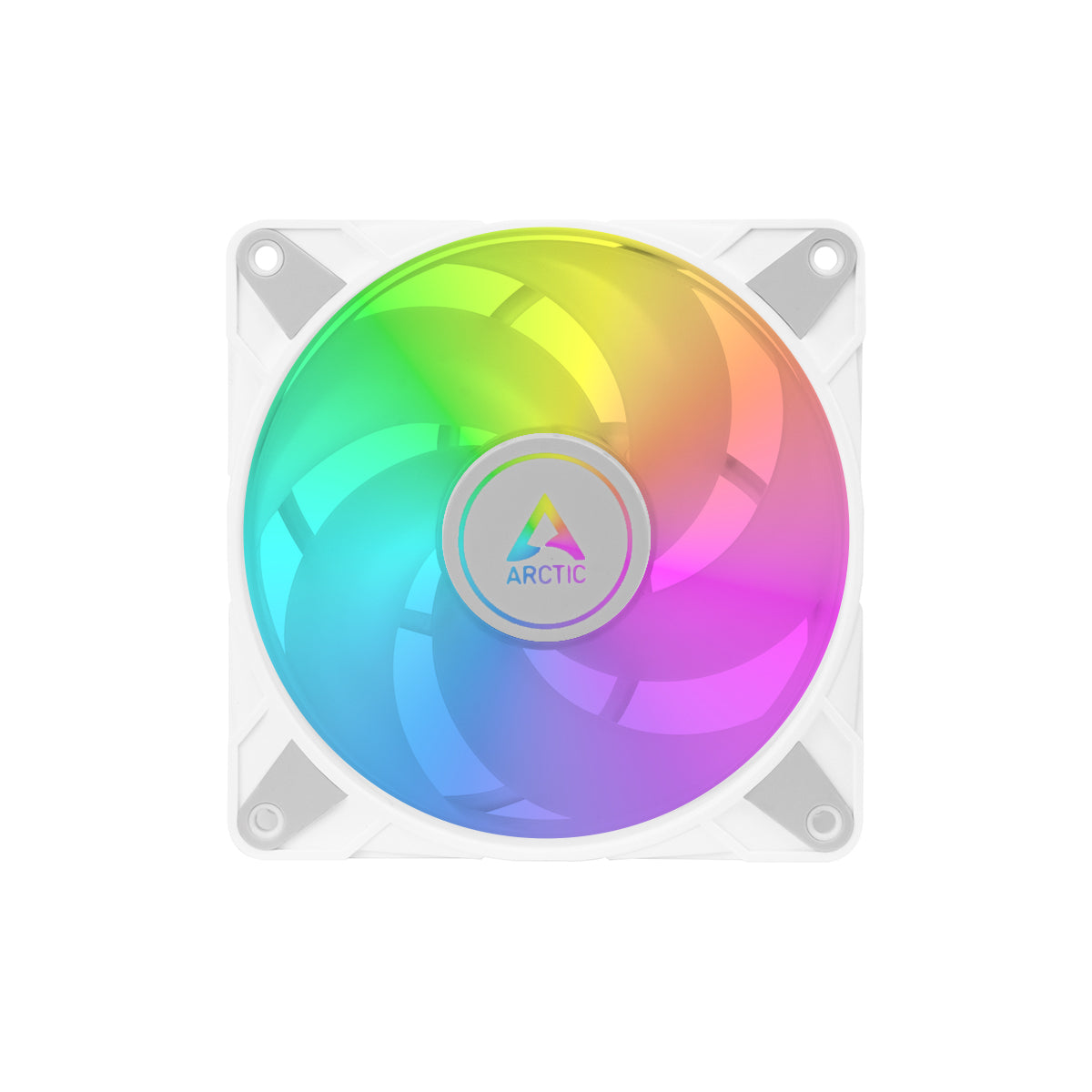

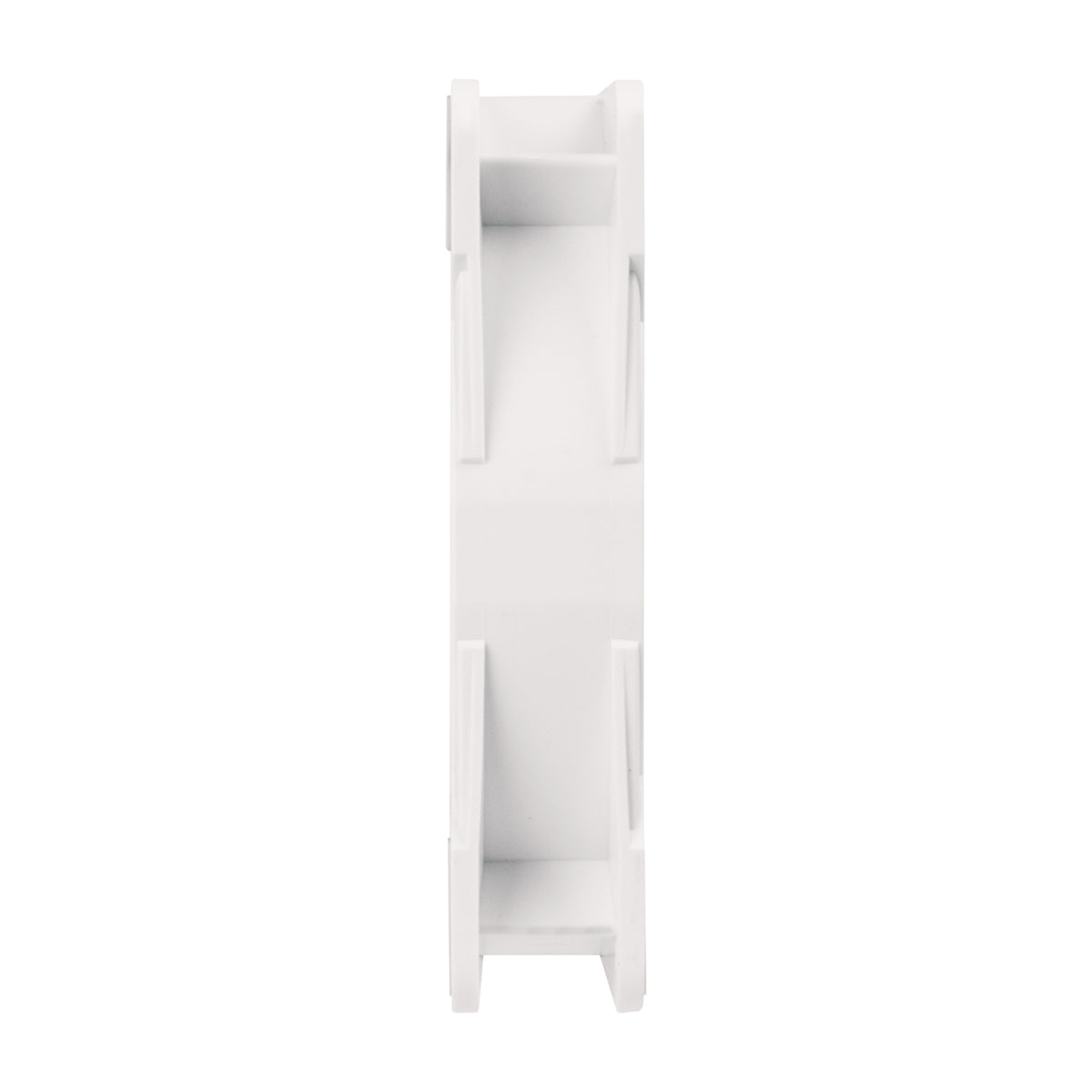

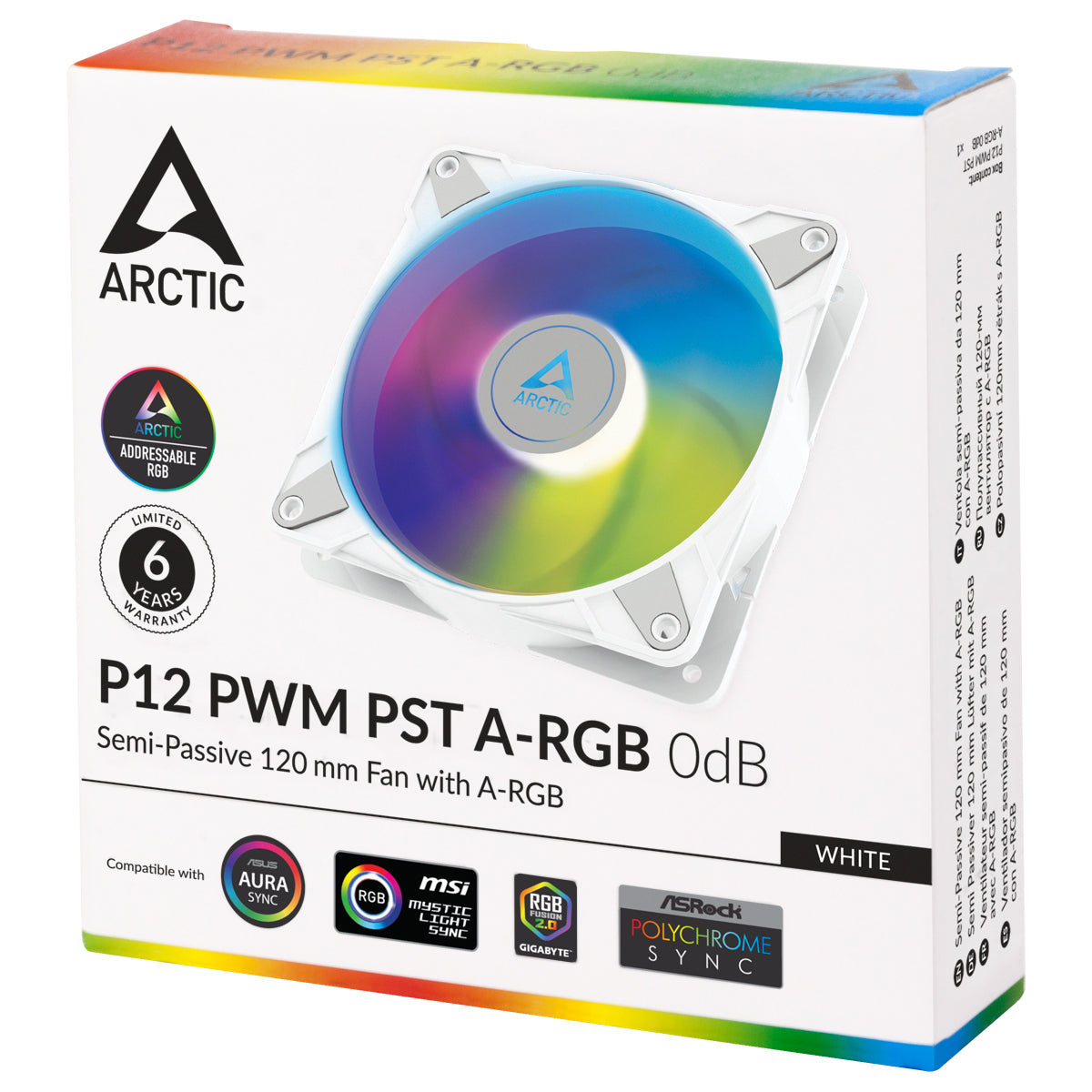

Arctic P12 PWM PST A-RGB 120mm High Performance Fan - White

Strong Cooling Performance | High-Quality Bearing | Optimised for Airflow and Static Pressure | Daisy Chain PWM Connector

Arctic  |  SKU 61295  |  MPN ACFAN00254A
$25.00

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description


Addressable RGB for Full Colour Control

The P12 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or an external controller and synchronized with the illumination of other hardware.

ARCTIC's partner SignalRGB offers a comprehensive solution for synchronization and individual configuration of the illumination.

0 dB Mode — Zero RPM

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE while guaranteeing maximum performance when required.

Maximum Smoothness, Minimum Vibration

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. Additionally, the P12 PWM PST A-RGB has rubberized contact surfaces, reducing audible vibrations to a minimum.

Optimized for High Static Pressure

The P12 PWM PST A-RGB operates with a focused airflow and high static pressure. This ensures extremely efficient cooling, even with increased air resistance, making it suitable for use on heat sinks, radiators, and filters.

200 to 2000 RPM Controlled via PWM PST

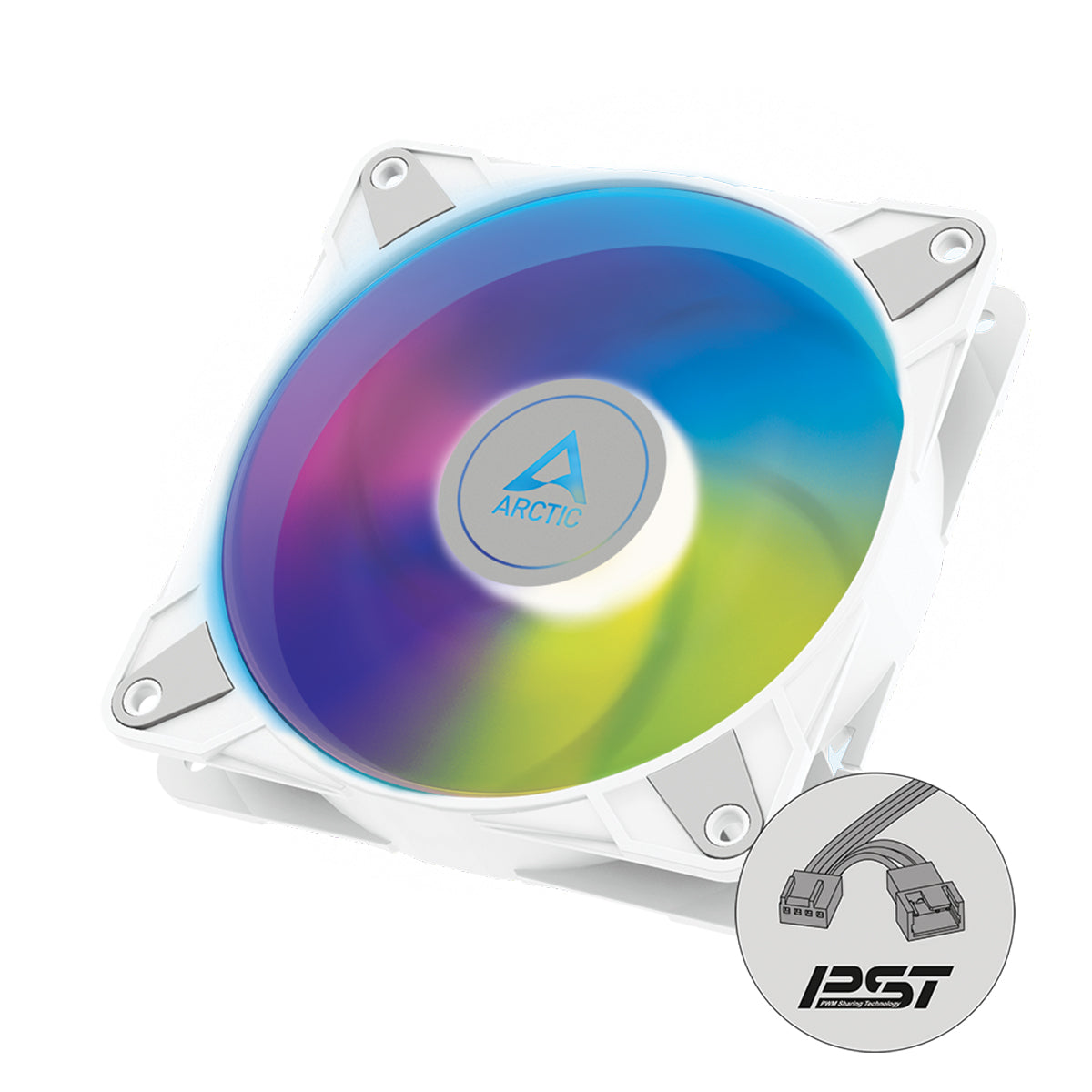

With a wide speed range and innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced, leading to greater efficiency. As a result, less heat develops, bearing noise is minimized, and the service life of the fan is extended.

Specifications

Fan Speed200—2000 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow48.80 cfm | 82.91 m³/h
Static Pressure1.85 mmH2O
Noise Level0.3 Sone
Operating Ambient Temperature0—40 °C
Fan
Fan FrameStandard
Control TypePWM PST
Connector4-Pin Connector + 4-Pin Socket
Fan BearingFluid Dynamic Bearing
Electric Characteristics
Typical Voltage12 V DC
Starting Voltage5 V
Current | Voltage0.11 A | 12 V DC
Cable Length400 mm
RGB Specifications
LEDs12 A-RGB LEDs
Connector3-Pin 5 V-DI-GND Connector
Current/Voltage0.4 A | 5 V
Cable400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
Length120 mm
Width120 mm
Height25 mm
Weight131 g
