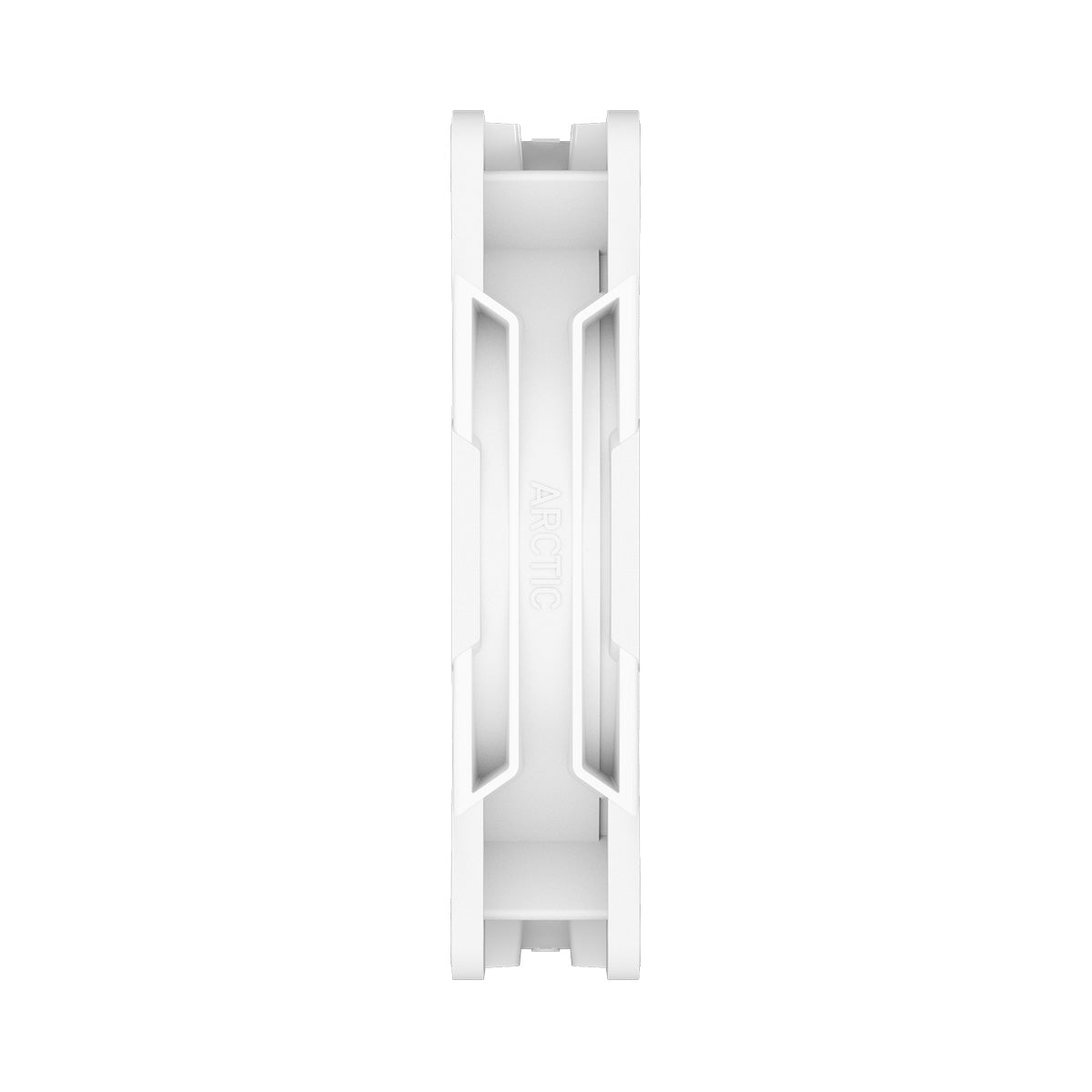

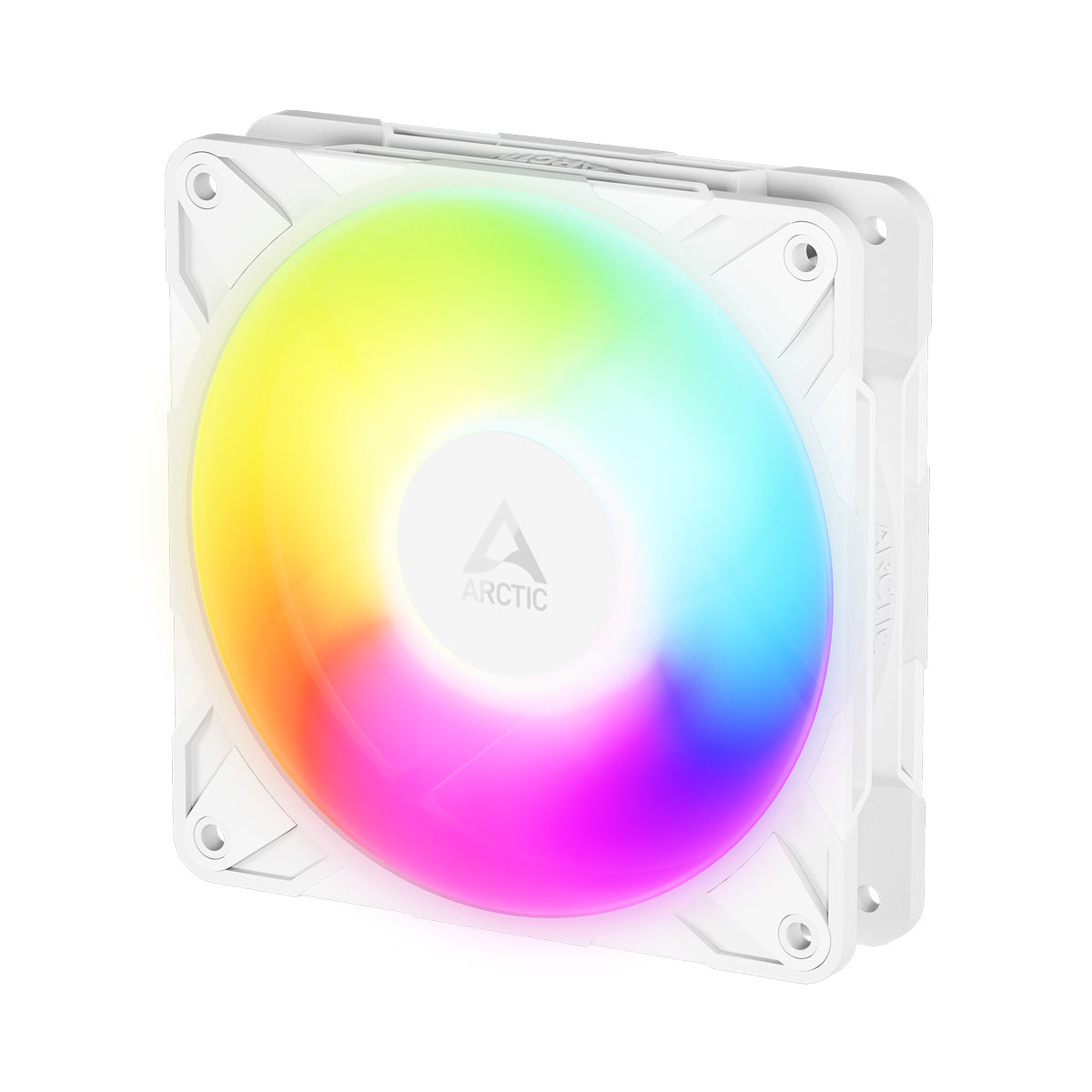

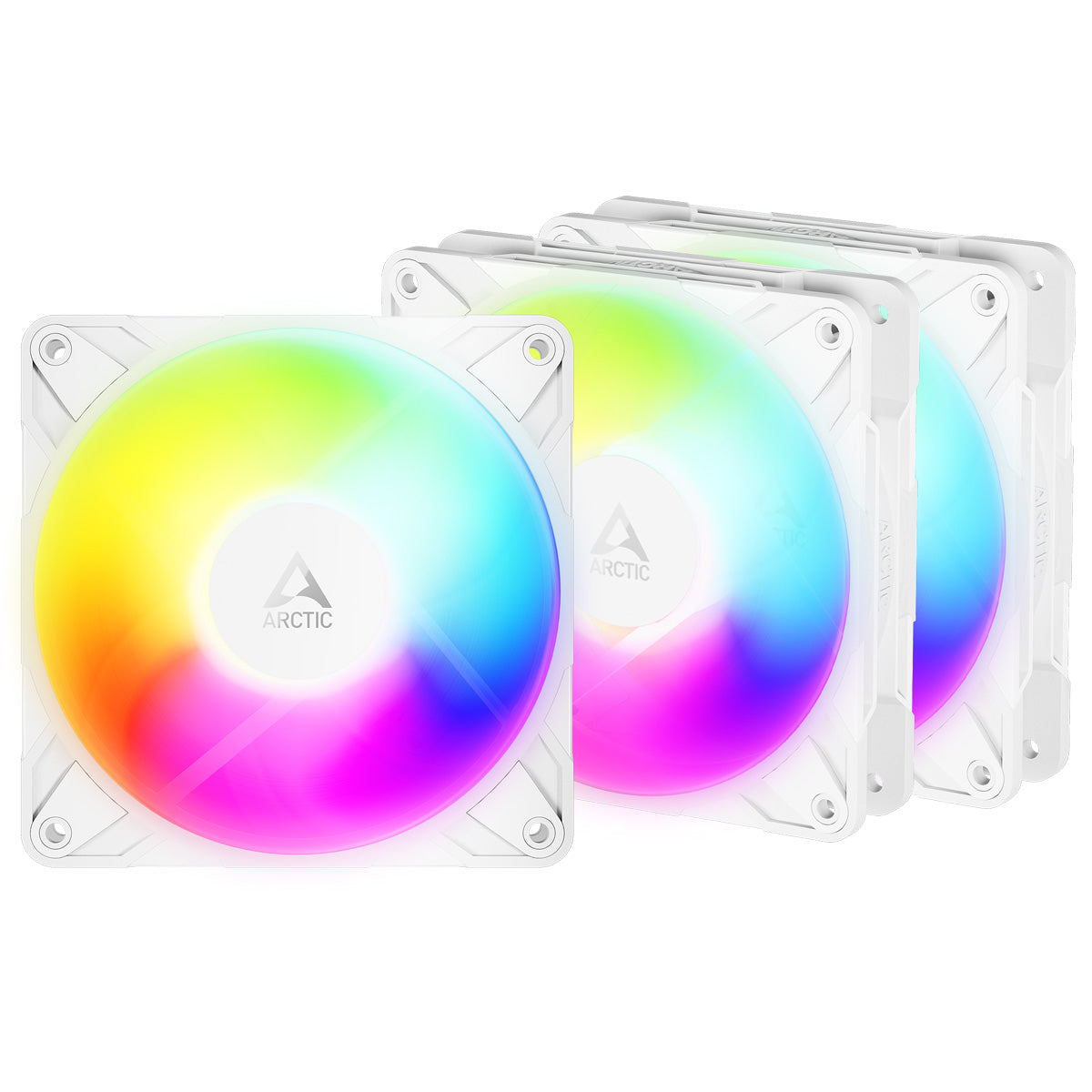

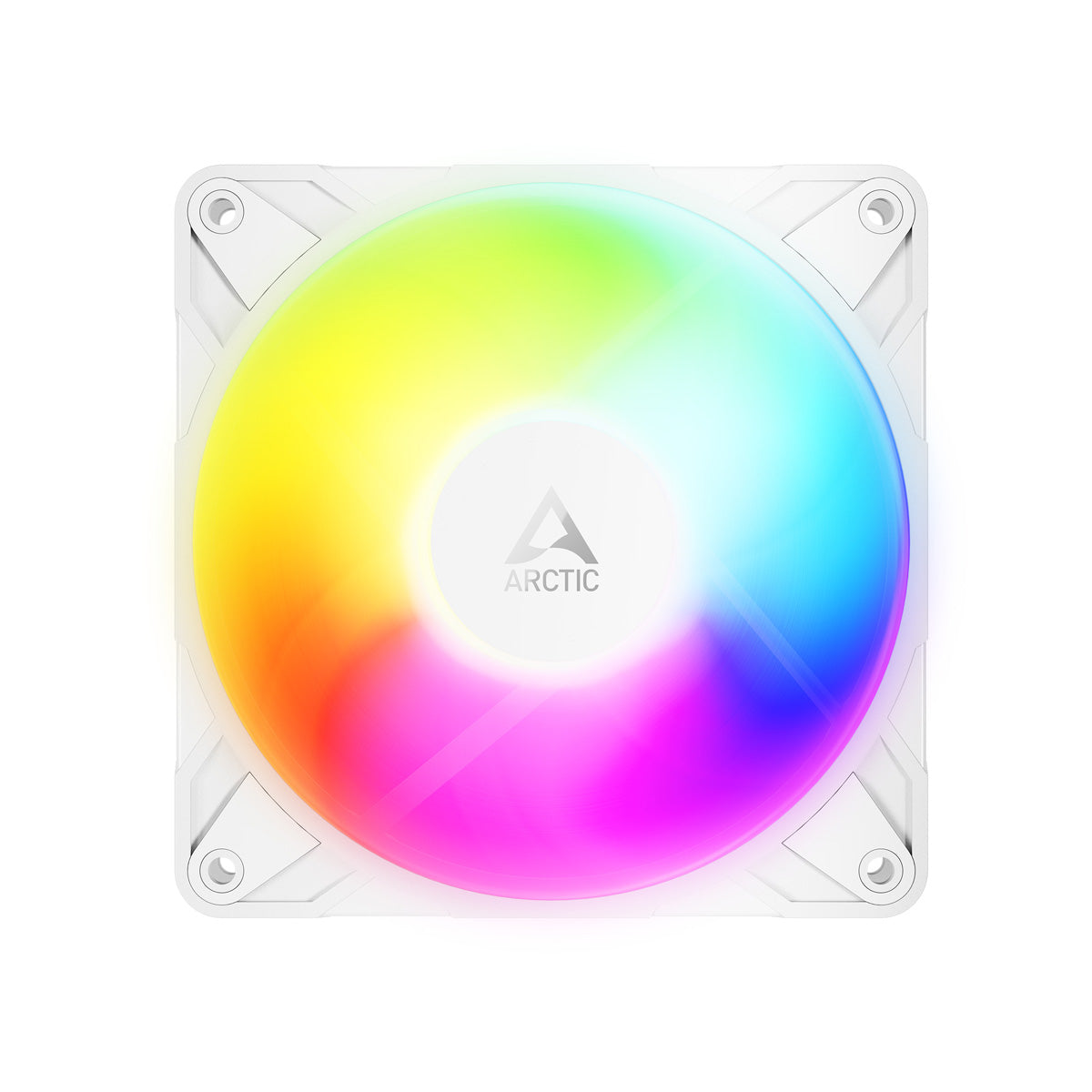

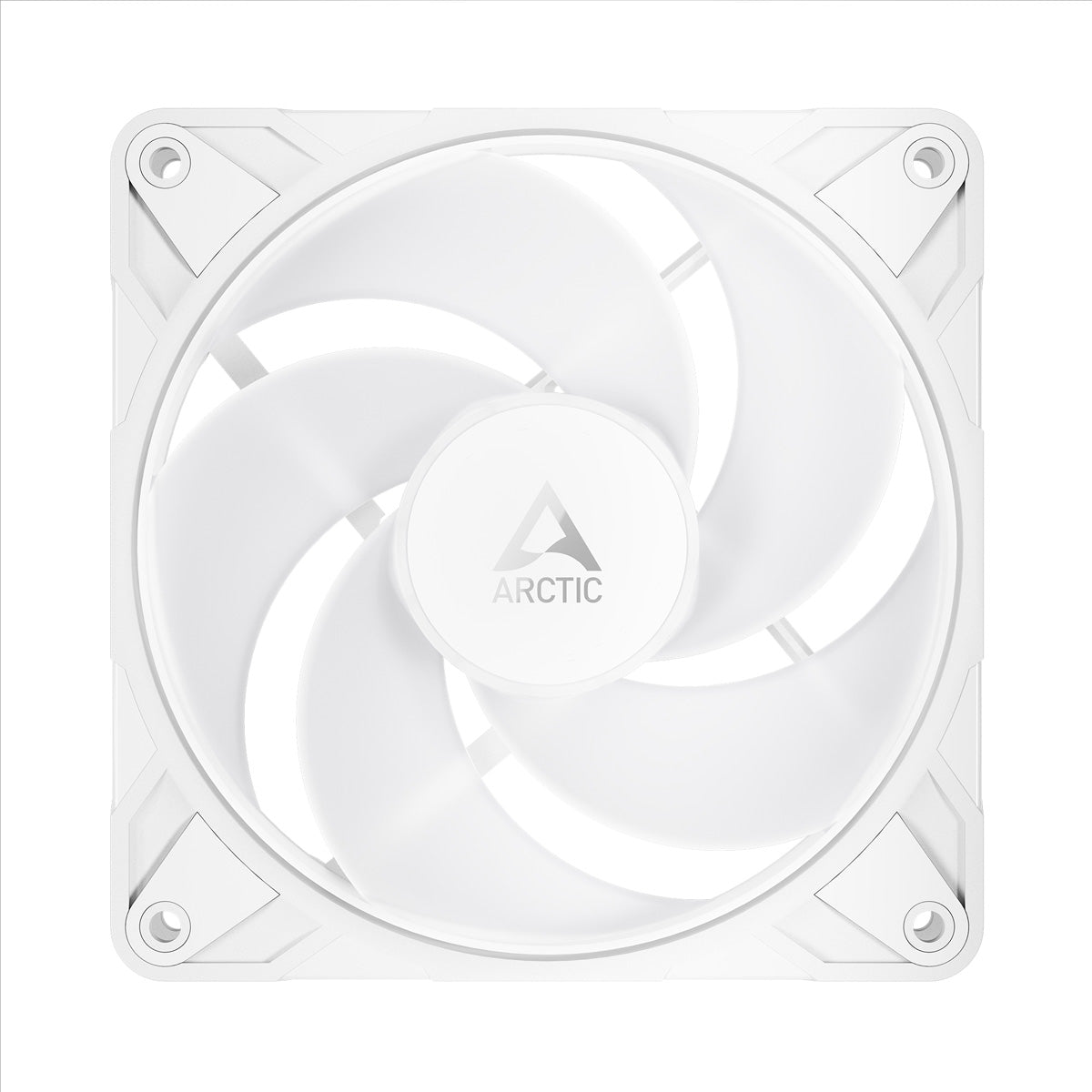

Arctic P12 PRO Reverse A-RGB 120mm Premium Cooling Fan White - 3 Pack
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Reversed Airflow
The P12 Pro Reverse is specifically designed for air intake from the back side, making it ideal for builds where conventional fans would compromise aesthetics.
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes guide airflow with reduced flow losses, lowering air resistance while minimizing turbulence and aerodynamic noise.
P12 Series | New IC | Black
Powered by a state-of-the-art microcontroller that reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
P12 Pro Reverse Series | More Power – Less Noise
An automated measuring and balancing process ensures smooth, powerful performance by applying balancing compound with pinpoint accuracy.
Minimum Gap Dimensions for Maximum Efficiency
Extremely small gap dimensions enable higher static pressure and maximize airflow efficiency.
PST – Easy Cable Management and Synchronized PWM Control
With the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single motherboard header.
Optimized FDB Bearing-Shaft Design
A hydrodynamic bearing combined with an extended shaft improves pressure distribution, minimizes vibrations, and ensures quieter, more stable operation.
Specifications
Specifications
| Operating Temp | 0–40 °C |
| Dimensions | 120 (L) × 120 (W) × 27 (H) mm |
| Net Weight | 172 g |
| Fan Speed |
500–3000 rpm (PWM controlled) 0 rpm below 5% PWM |
| Airflow | 73 cfm | 124 m³/h |
| Static Pressure | 4.5 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Voltage |
Typical: 12 V DC Start-up: 3.5 V DC |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm daisy-chain cable |
| Fan Connector | 4-Pin fan plug + 4-Pin socket |
| RGB LEDs | 12× A-RGB Gen2 LEDs |
| RGB Power | 0.40 A | 5 V DC |
| RGB Connector | 3-Pin A-RGB plug + 3-Pin socket |
| Packaging Size |
Width: 124 mm Height: 92 mm Length: 128 mm |
| Packaging Weight | 0.6 kg |
