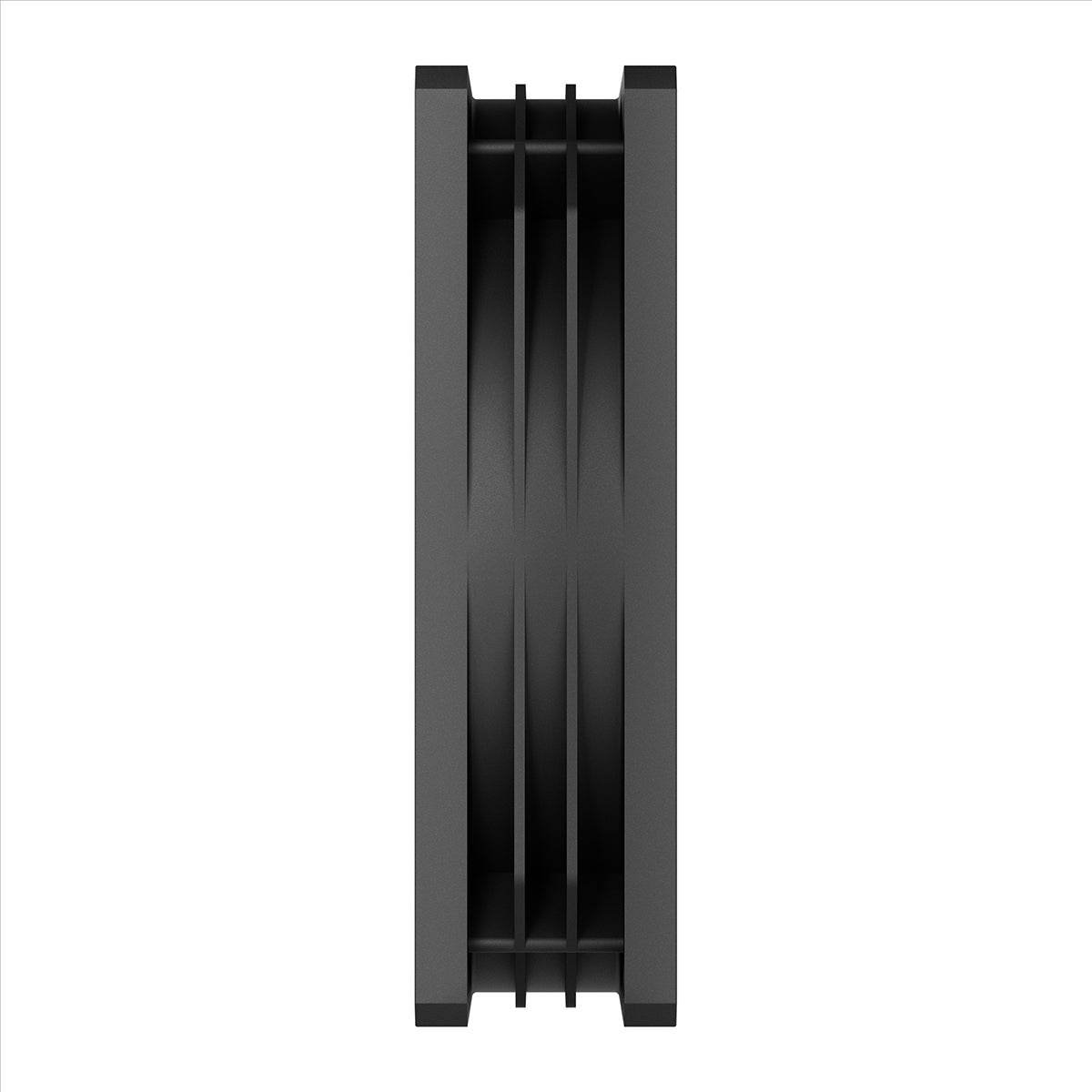

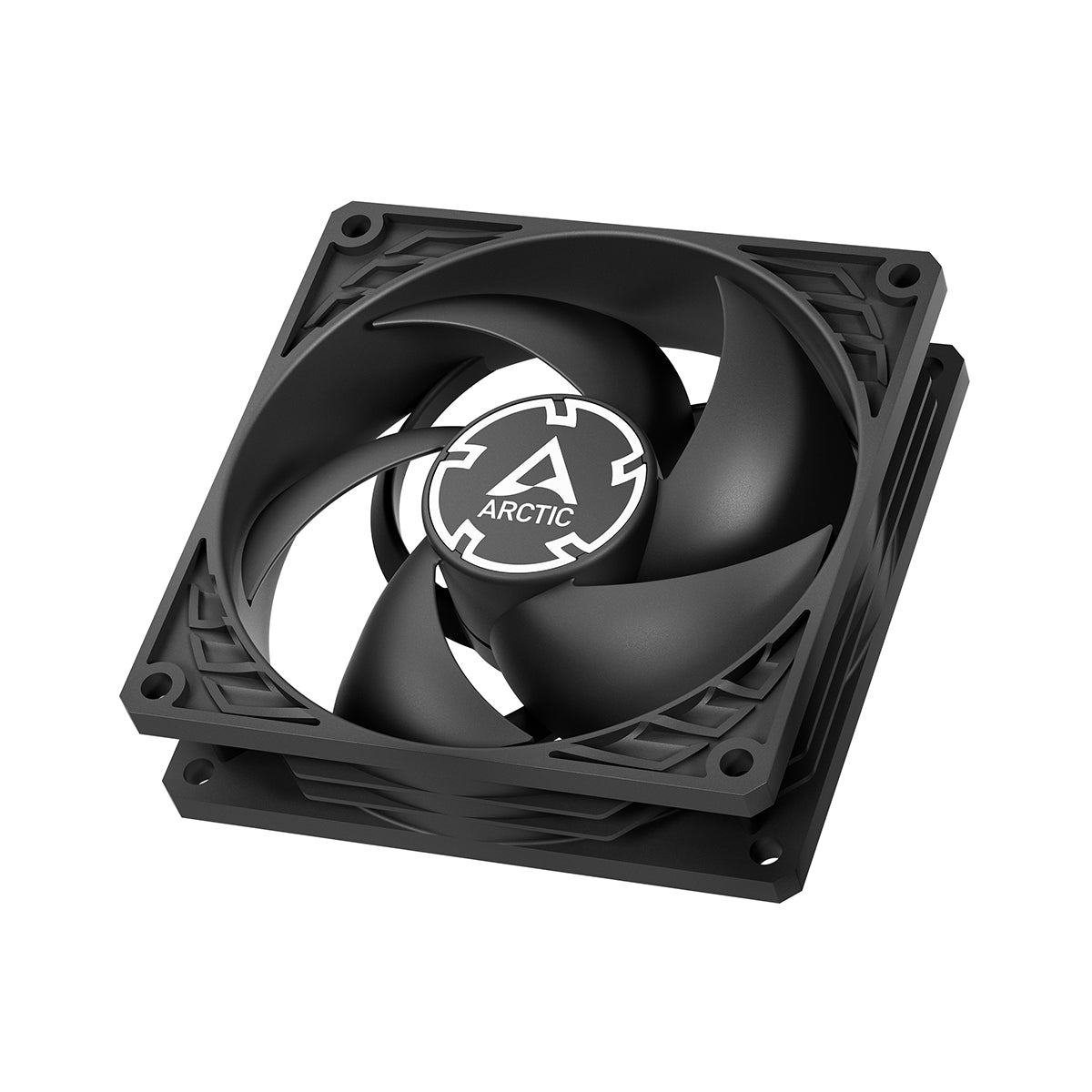

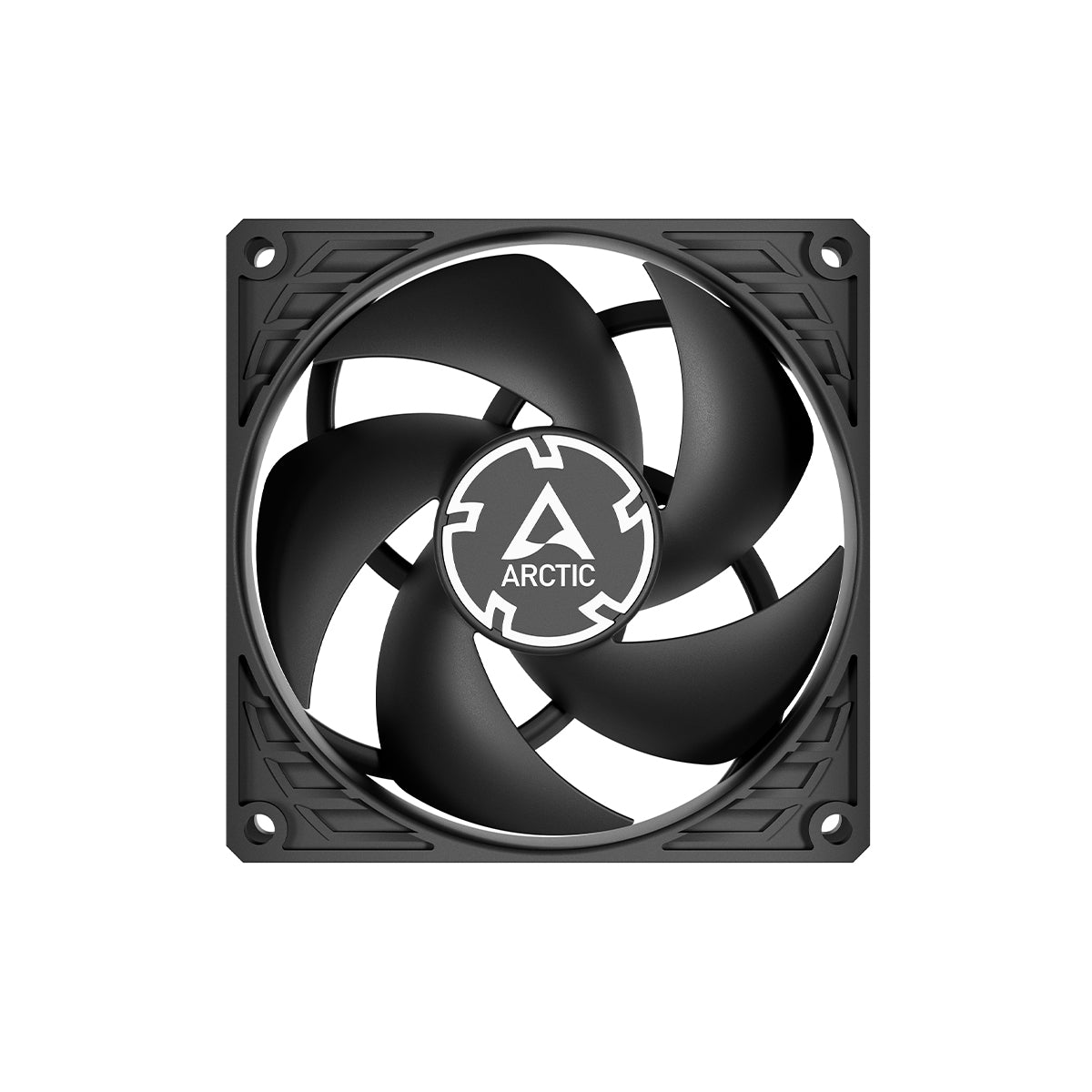

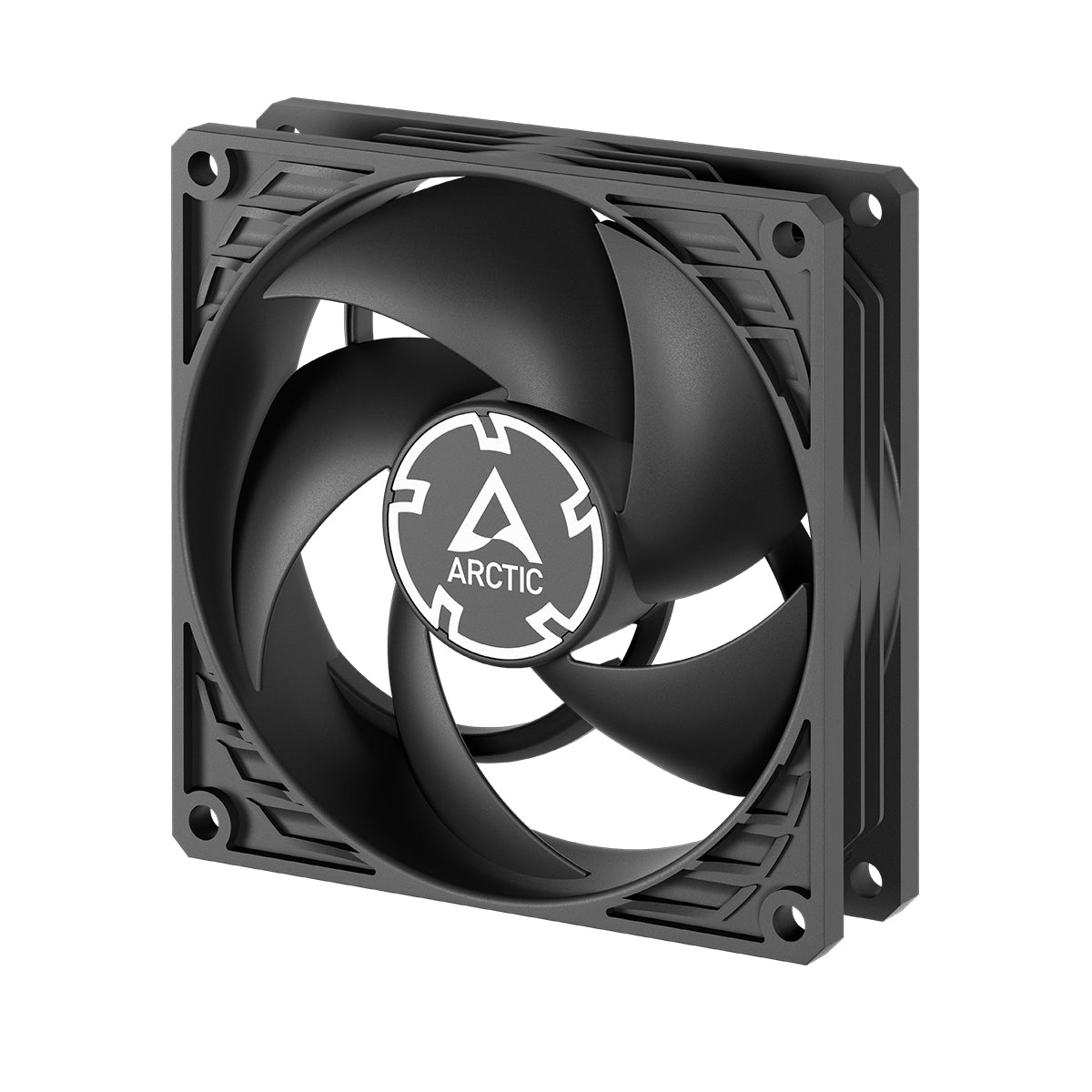

Arctic P12 120mm High Performance 3-Pin Fan - Black
Strong Cooling Performance | High-Quality Bearing | Optimised for Airflow and Static Pressure
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
Push warm air out of the case
Pull cool air into your case
Specifications
Specifications
| Fan Speed | 1800 rpm |
| Airflow | 56.3 cfm | 95.7 m³/h |
| Static Pressure | 2.20 mmH2O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0—40 °C |
| Warranty | 6 Years |
| Fan Frame | Standard |
| Control Type | Fixed Speed |
| Connector | 3-Pin Connector |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Starting Voltage | 2.8 V |
| Current | Voltage | 0.16 A | 12 V DC |
| Cable Length | 400 mm |
| Length | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 139 g |
