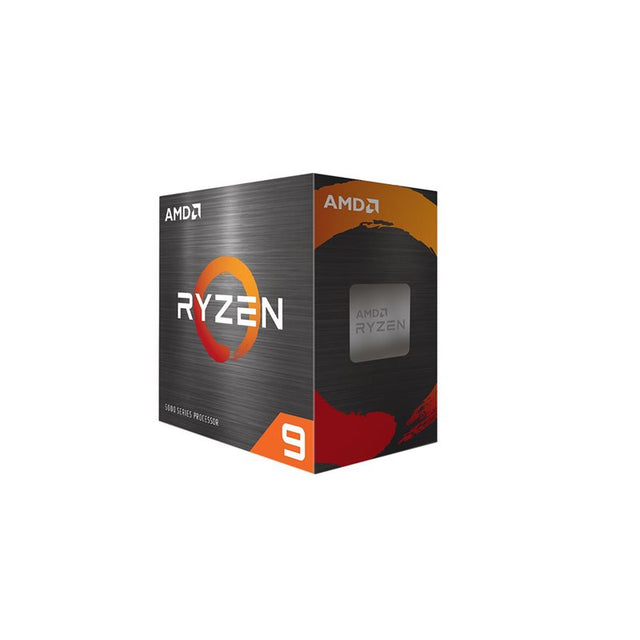

AMD Ryzen 9 5900XT Processor
AMD
| SKU
63012
$679.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
SHOP STORE:
Description
Description
Specifications
Specifications
| Name | AMD Ryzen™ 9 5900XT |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Boxed Processor , Desktops |
| Market Segment | Enthusiast Desktop |
| Consumer Use | Yes |
| Commercial Use | No |
| Regional Availability | Global |
| Former Codename | Vermeer |
| Architecture | Zen 3 |
| # of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| # of Threads | 32 |
| Max. Boost Clock | Up to 4.8 GHz |
| Base Clock | 3.3 GHz |
| L1 Cache | 1024 KB |
| L2 Cache | 8 MB |
| L3 Cache | 64 MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Supporting Chipsets | X570 , B550 , A520 , X470 , B450 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 90°C |
| Launch Date | 07/31/2024 |
| *OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24 , 20 |
| Additional Usable PCIe Lanes from Motherboard | amd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Model | Discrete Graphics Card Required |
| Supported Technologies | AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium |
