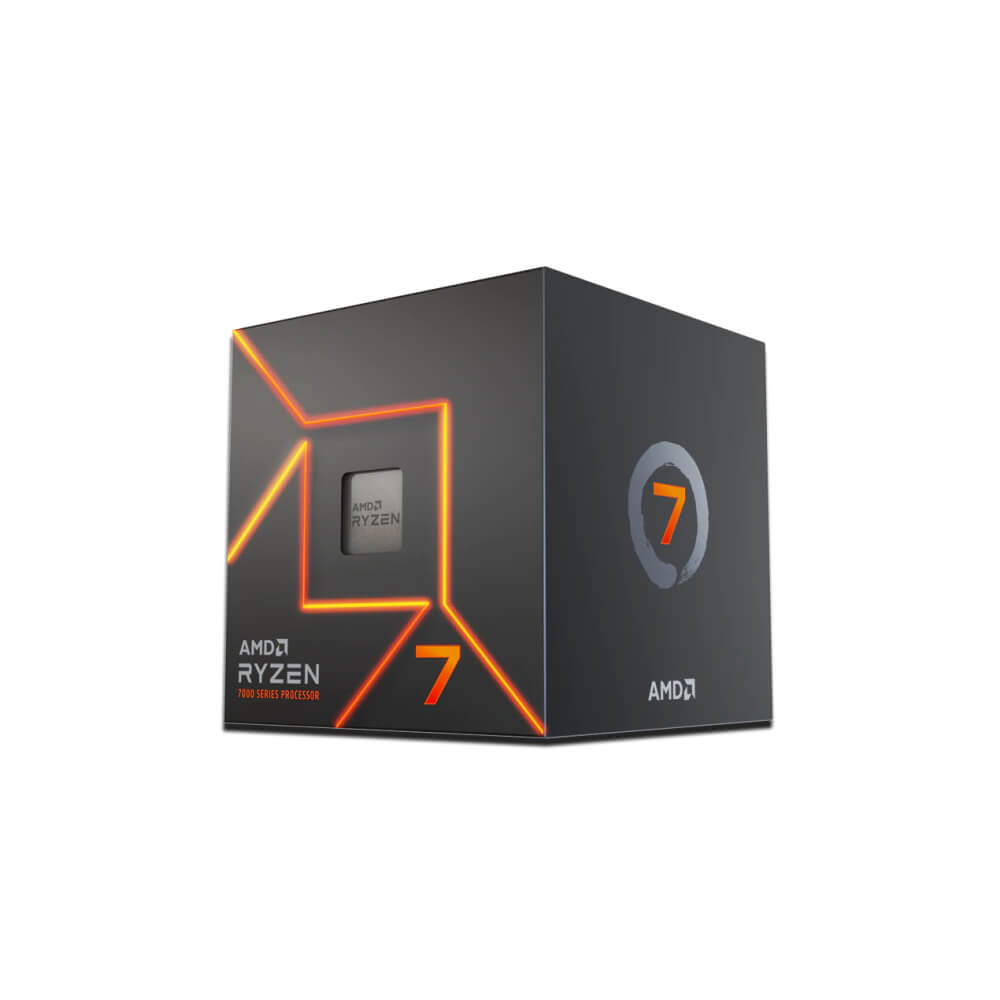

AMD Ryzen 7 7700 Processor

AMD  |  SKU 44046  |  MPN 100-100000592BOX
$589.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

SHOP STORE:

Description

The Exceptional Gaming Processor

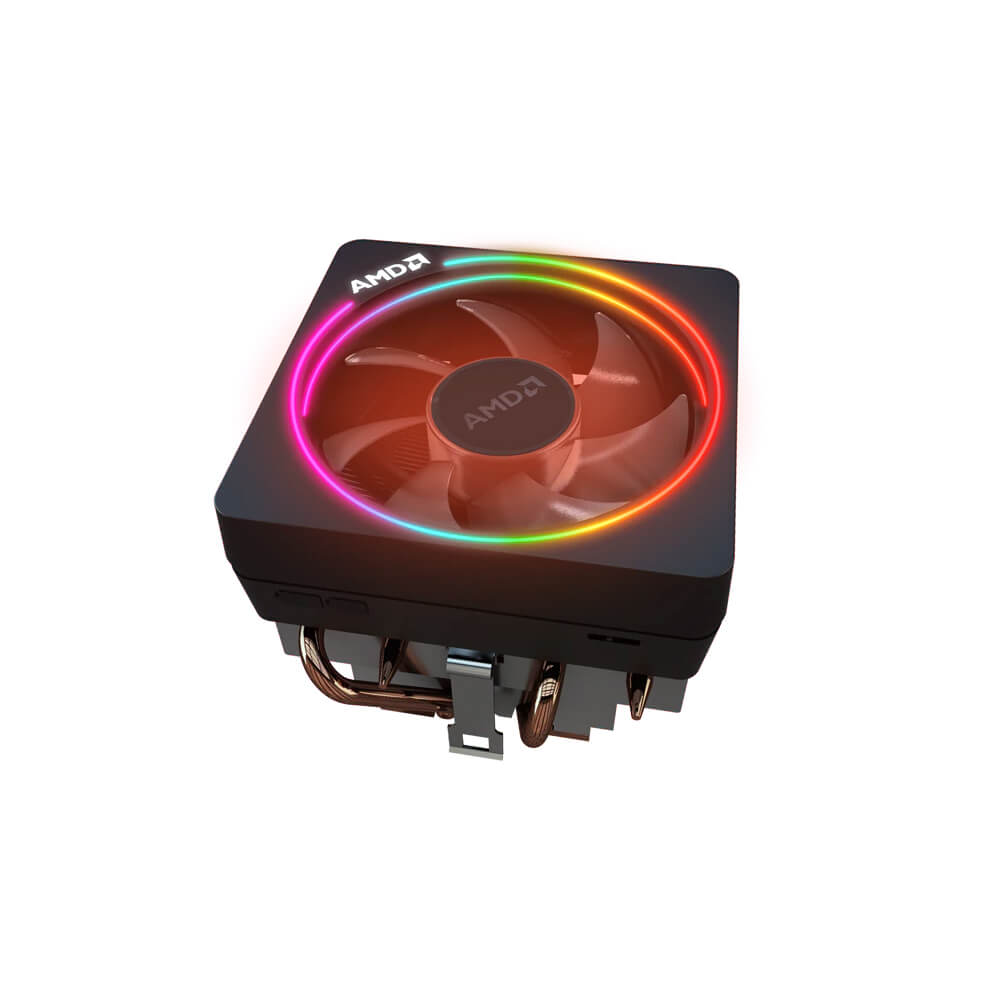

Leading your team to victory shouldn’t cost a fortune. This processor brings exceptional value, overclocking, and includes the AMD Wraith Prism cooler with RBG LED lighting.


Technology That Saves You Time

Whether you are 3D rendering a high poly scene, exporting massive video files, or visualizing an architectural dream, AMD Ryzen™ 7000 Series processors are built to beat the clock. With time-saving connectivity like PCIe® 5.0 storage support, ultra-fast WiFi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen 7000 Series processors.


Easy Overclocking, Game On

Accelerate your gaming with AMD EXPO™ technology. Higher memory frequencies and more aggressive settings can unlock higher and smoother frame rates in your favorite games.


Leadership Efficiency

AMD Ryzen™ 7000 series processors can deliver up to 49% more performance at the same power as last gen. Use even less power with AMD’s exclusive Eco-Mode, or choose one of the new low-power 65W models in the lineup.


Unlocked for Overclocking

Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive, or do it manually with the robust AMD Ryzen Master utility.

Specifications

NameAMD Ryzen™ 7 7700
FamilyRyzen
SeriesRyzen 7000 Series
Form FactorDesktops , Boxed Processor
Market SegmentEnthusiast Desktop
AMD PRO TechnologiesNo
Consumer UseYes
Regional AvailabilityGlobal
Former CodenameRaphael AM5
ArchitectureZen 4
# of CPU Cores8
Multithreading (SMT)Yes
# of Threads16
Max. Boost ClockUp to 5.3 GHz
Base Clock3.8 GHz
L1 Cache512 KB
L2 Cache8 MB
L3 Cache32 MB
Default TDP65W
Processor Technology for CPU CoresTSMC 5nm FinFET
Processor Technology for I/O DieTSMC 6nm FinFET
CPU Compute Die (CCD) Size71mm²
I/O Die (IOD) Size122mm²
Package Die Count2
Unlocked for OverclockingYes
AMD EXPO™ Memory Overclocking TechnologyYes
Precision Boost OverdriveYes
Curve Optimizer Voltage OffsetsYes
AMD Ryzen™ Master SupportYes
CPU SocketAM5
Supporting ChipsetsA620 , X670E , X670 , B650E , B650
CPU Boost TechnologyPrecision Boost 2
Instruction Setx86-64
Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)AMD Wraith Prism
Max. Operating Temperature (Tjmax)95°C
Launch Date01/14/2023
*OS SupportWindows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps) Ports4
Native USB 3.2 Gen 1 (5Gbps) Ports0
Native USB 2.0 (480Mbps) Ports1
Native SATA Ports0
PCI Express® VersionPCIe® 5.0
Native PCIe® Lanes (Total/Usable)28 , 24
Additional Usable PCIe Lanes from MotherboardX670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4
NVMe SupportBoot , RAID0 , RAID1 , RAID10
System Memory TypeDDR5
Memory Channels2
Max. Memory128 GB
System Memory SubtypeUDIMM
Max Memory Speed2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600
ECC SupportYes (Requires mobo support)
Graphics ModelAMD Radeon™ Graphics
Graphics Core Count2
Graphics Frequency2200 MHz
USB Type-C® DisplayPort™ Alternate ModeYes
Supported TechnologiesAMD EXPO™ Technology , AMD Ryzen™ Technologies
