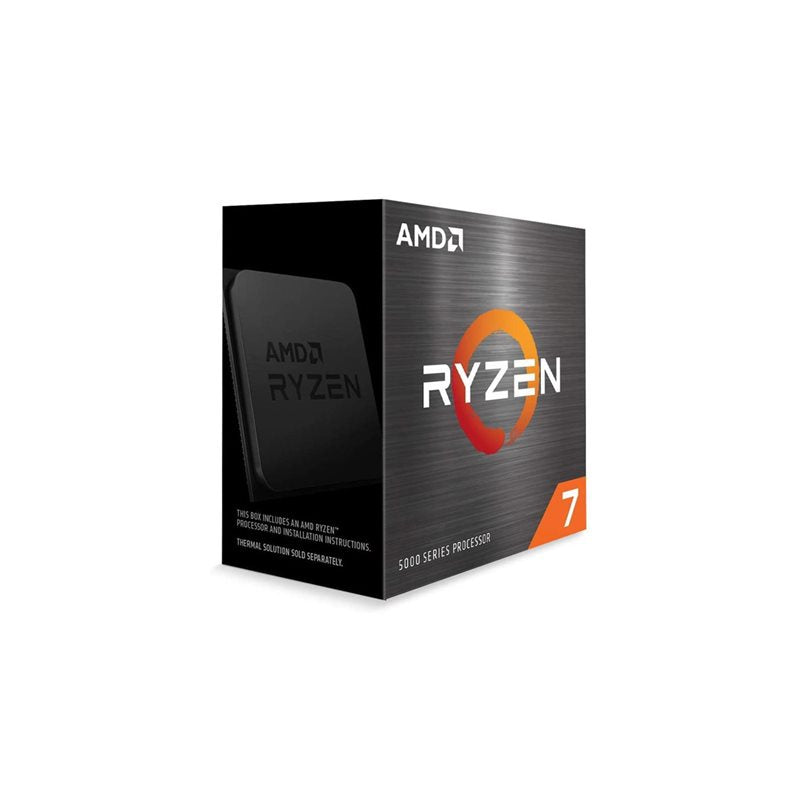

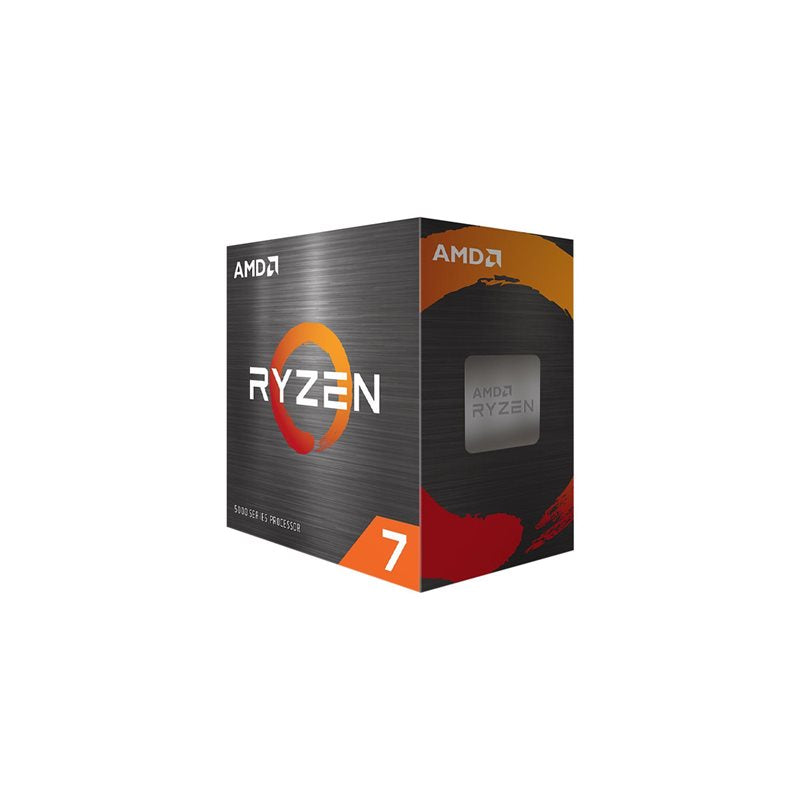

AMD Ryzen 7 5800XT Processor

AMD  |  SKU 63013  |  MPN 100-100001582BOX
$469.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

SHOP STORE:

Description

Name AMD Ryzen™ 7 5800XT
Family Ryzen
Series Ryzen 5000 Series
Form Factor Boxed Processor , Desktops
Market Segment Enthusiast Desktop
Consumer Use Yes
Commercial Use No
Regional Availability Global
Former Codename Vermeer
Architecture Zen 3
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 4.8 GHz
Base Clock 3.8 GHz
L1 Cache 512 KB
L2 Cache 4 MB
L3 Cache 32 MB
Default TDP 105W
Processor Technology for CPU Cores TSMC 7nm FinFET
Processor Technology for I/O Die 12nm (Globalfoundries)
CPU Compute Die (CCD) Size 74mm²
I/O Die (IOD) Size 125mm²
Package Die Count 2
Unlocked for Overclocking Yes
CPU Socket AM4
Supporting Chipsets X570 , B550 , A520 , X470 , B450
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) AMD Wraith Prism
Max. Operating Temperature (Tjmax) 90°C
Launch Date 07/31/2024
*OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 0
Native SATA Ports 2
PCI Express® Version PCIe® 4.0
Native PCIe® Lanes (Total/Usable) 24 , 20
Additional Usable PCIe Lanes from Motherboard amd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2
NVMe Support Boot , RAID0 , RAID1 , RAID10
System Memory Type DDR4
Memory Channels 2
Max. Memory 128 GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667
ECC Support Yes (Requires mobo support)
Graphics Model Discrete Graphics Card Required
Supported Technologies AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

Specifications

NameAMD Ryzen™ 7 5800XT
FamilyRyzen
SeriesRyzen 5000 Series
Form FactorBoxed Processor , Desktops
Market SegmentEnthusiast Desktop
Consumer UseYes
Commercial UseNo
Regional AvailabilityGlobal
Former CodenameVermeer
ArchitectureZen 3
# of CPU Cores8
Multithreading (SMT)Yes
# of Threads16
Max. Boost ClockUp to 4.8 GHz
Base Clock3.8 GHz
L1 Cache512 KB
L2 Cache4 MB
L3 Cache32 MB
Default TDP105W
Processor Technology for CPU CoresTSMC 7nm FinFET
Processor Technology for I/O Die12nm (Globalfoundries)
CPU Compute Die (CCD) Size74mm²
I/O Die (IOD) Size125mm²
Package Die Count2
Unlocked for OverclockingYes
CPU SocketAM4
Supporting ChipsetsX570 , B550 , A520 , X470 , B450
CPU Boost TechnologyPrecision Boost 2
Instruction Setx86-64
Supported ExtensionsAES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)AMD Wraith Prism
Max. Operating Temperature (Tjmax)90°C
Launch Date07/31/2024
*OS SupportWindows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps) Ports4
Native USB 3.2 Gen 1 (5Gbps) Ports0
Native USB 2.0 (480Mbps) Ports0
Native SATA Ports2
PCI Express® VersionPCIe® 4.0
Native PCIe® Lanes (Total/Usable)24 , 20
Additional Usable PCIe Lanes from Motherboardamd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2
NVMe SupportBoot , RAID0 , RAID1 , RAID10
System Memory TypeDDR4
Memory Channels2
Max. Memory128 GB
System Memory SubtypeUDIMM
Max Memory Speed2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667
ECC SupportYes (Requires mobo support)
Graphics ModelDiscrete Graphics Card Required
Supported TechnologiesAMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
