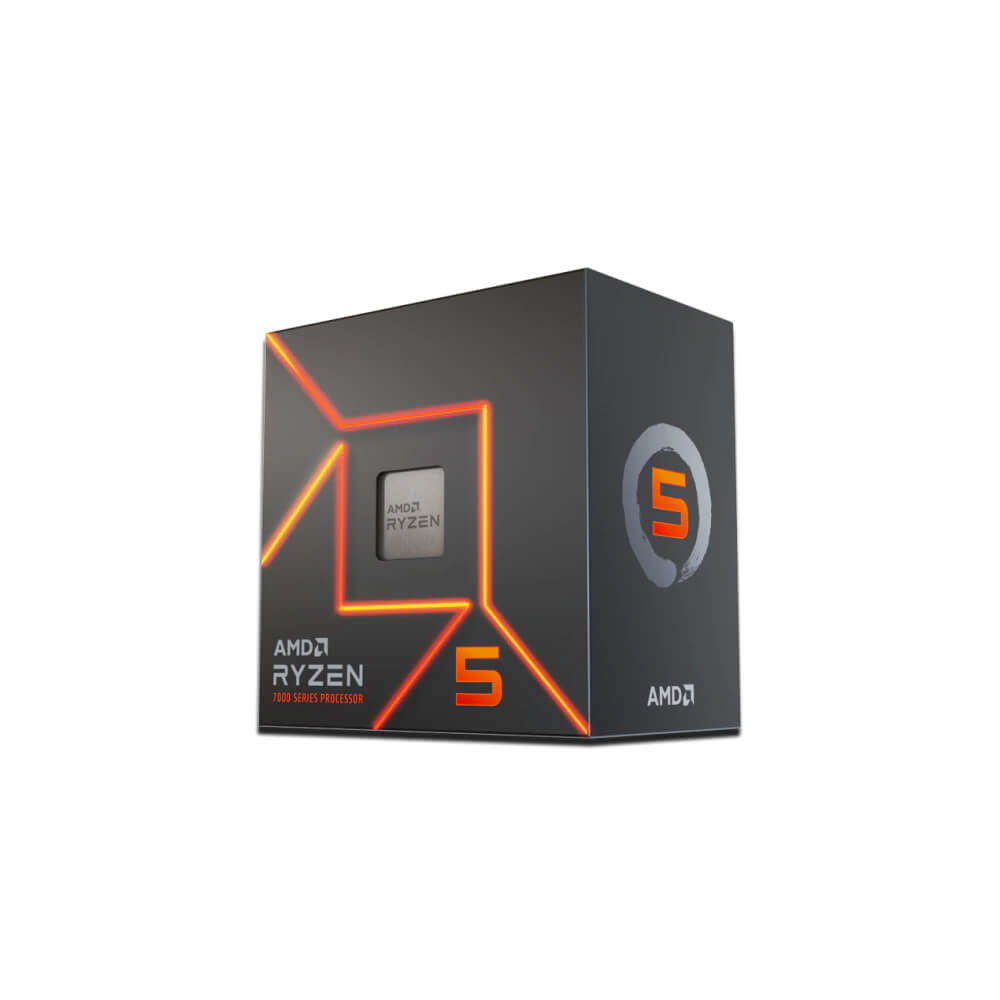

AMD Ryzen 5 7600 Processor
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Powerful Gaming Starts Here

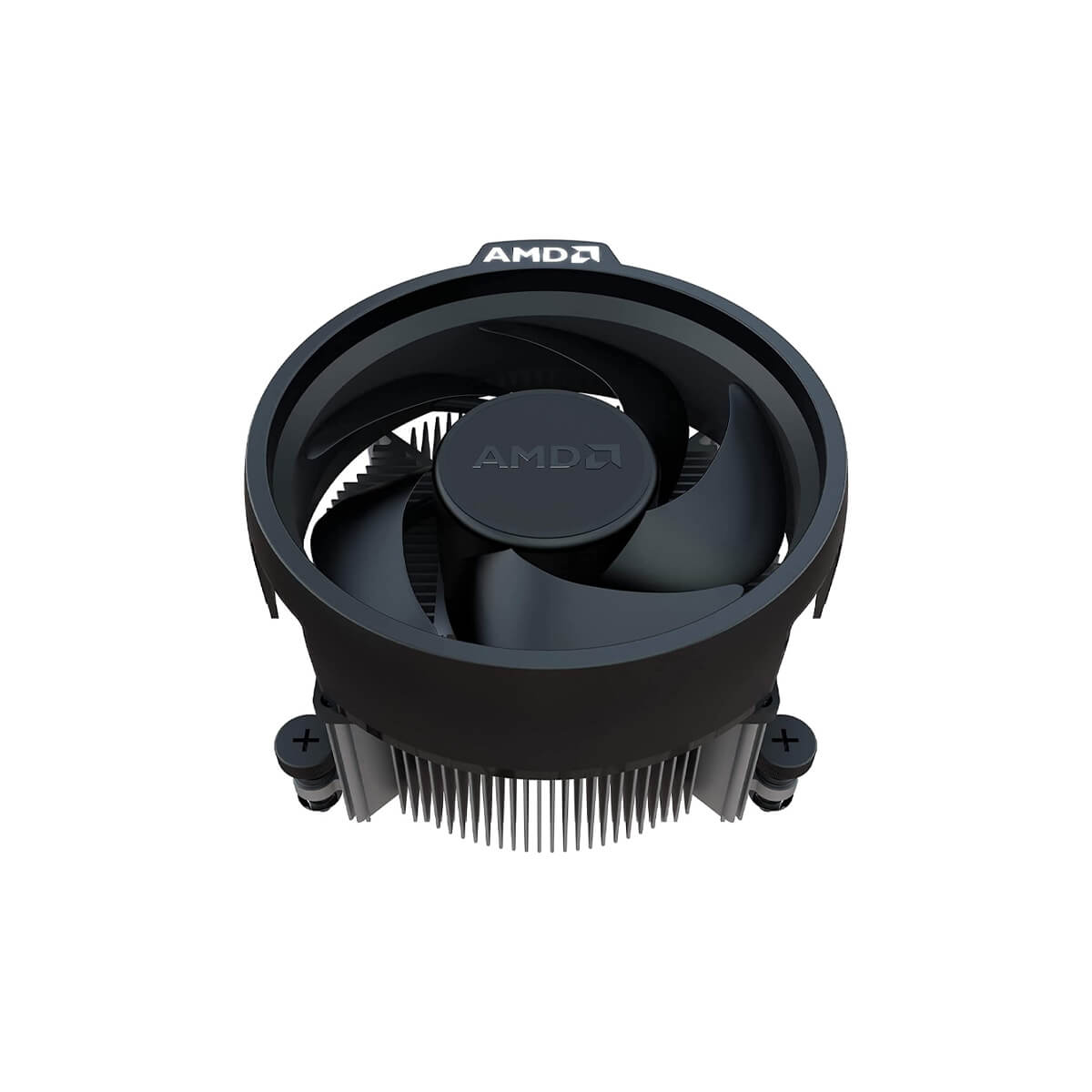

This overclockable processor is built for intense gaming, and comes bundled with a low-profile AMD Wraith Stealth cooler.
Technology That Saves You Time
Whether you are 3D rendering a high poly scene, exporting massive video files, or visualizing an architectural dream, AMD Ryzen™ 7000 Series processors are built to beat the clock. With time-saving connectivity like PCIe® 5.0 storage support, ultra-fast WiFi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen 7000 Series processors.
Easy Overclocking, Game On
Accelerate your gaming with AMD EXPO™ technology. Higher memory frequencies and more aggressive settings can unlock higher and smoother frame rates in your favorite games.
Leadership Efficiency
AMD Ryzen™ 7000 series processors can deliver up to 49% more performance at the same power as last gen. Use even less power with AMD’s exclusive Eco-Mode, or choose one of the new low-power 65W models in the lineup.
Unlocked for Overclocking
Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive, or do it manually with the robust AMD Ryzen Master utility.
Specifications
Specifications
| Name | AMD Ryzen™ 5 7600 |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops , Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.1 GHz |
| Base Clock | 3.8 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 01/14/2023 |
| *OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 , 24 |
| Additional Usable PCIe Lanes from Motherboard | X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
