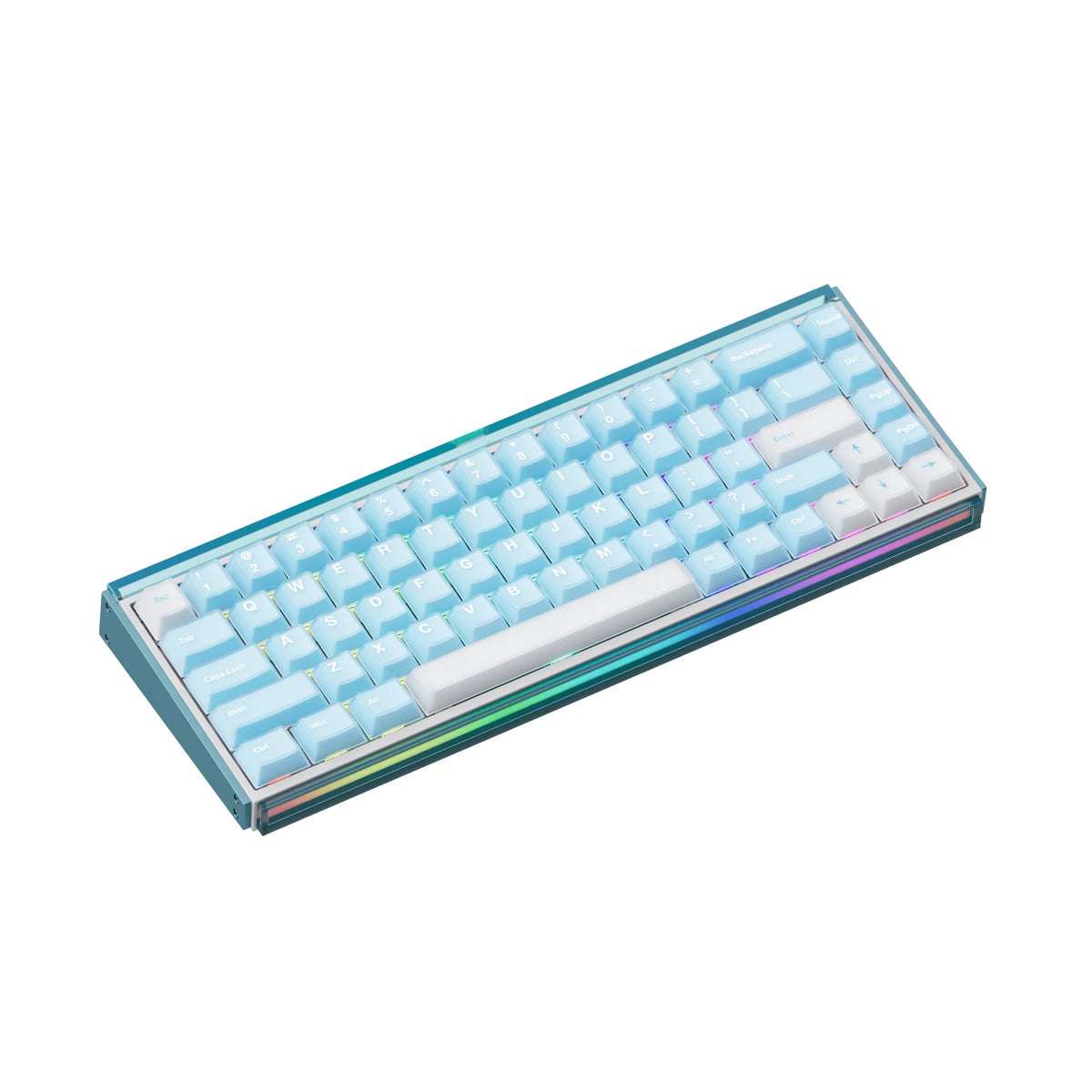

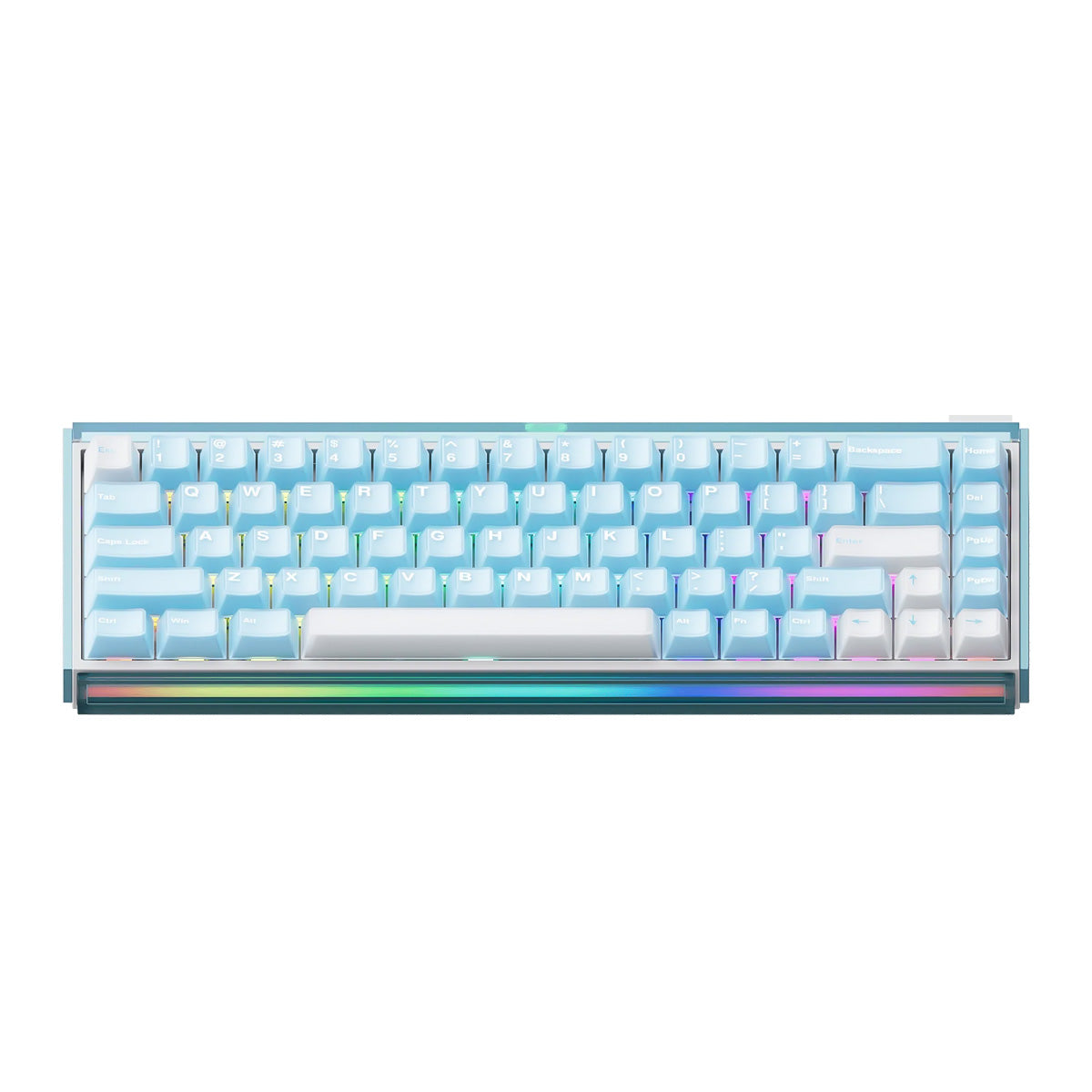

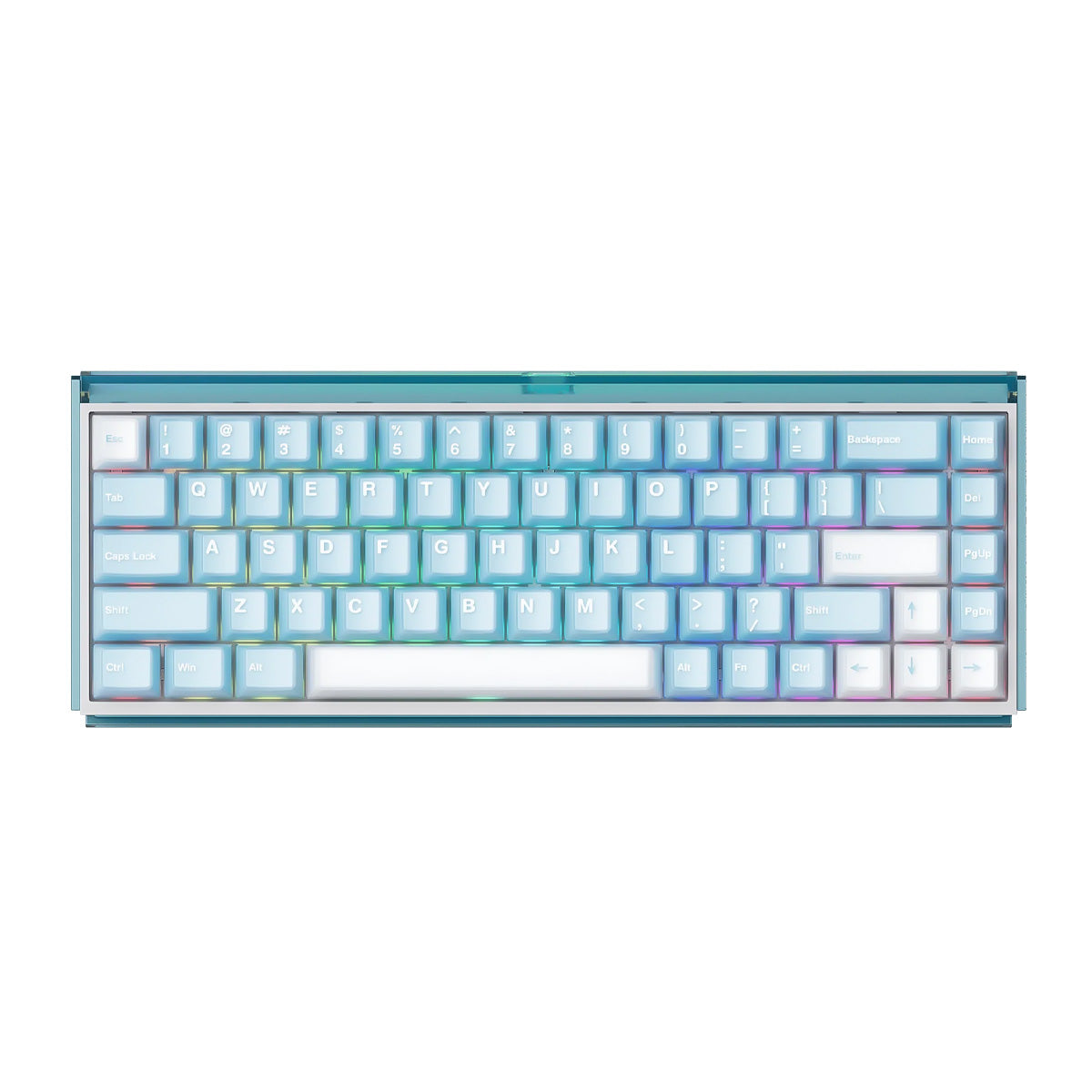

Akko RAY68-HE Blue & White 68% Wireless Hall-Effect Gaming Keyboard - AstroAim Switch

DIY Lightbox Design

The Ray68 HE Magnetic Keyboard features a built-in DIY Lightbox that allows users to personalize the keyboard’s appearance. It offers a unique platform for creative expression while maintaining high-performance functionality.

Full Range Rapid Trigger 0.01mm

Achieve ultra-accurate 0.01mm Rapid Trigger with adjustable actuation distance in 0.01mm steps. This enables users to fine-tune their typing or gaming experience for faster response times and improved precision, making it ideal for competitive gaming.

Cross-Compatible with Magnetic Switches

The Ray68 HE Magnetic Keyboard supports compatibility with several third-party magnetic switches. Users can select the appropriate switch in the Akko Driver and calibrate the keyboard after replacement. Different switches can also be mixed across keys for a customized typing experience.

ARM Cortex-M4 CPU

The keyboard is powered by an ARM Cortex-M4 CPU that delivers enhanced processing performance with low energy consumption. It features automatic calibration between -20°C and 80°C to ensure stable operation and efficient performance.

8,000Hz Polling Rate

Enjoy ultra-fast response times and smoother inputs with an 8000Hz polling rate. The wired version supports a full 8000Hz polling rate, while the wireless tri-mode version supports 8000Hz polling in wired or 2.4GHz wireless modes for responsive gaming performance.

RT Stabilizer

The RT Stabilizer mode helps reduce unintended inputs caused by slight hand tremors when using extremely precise Rapid Trigger settings. This improves stability and consistency during fast-paced gaming sessions.

ARGB Lighting with 500Hz Refresh Rate

The Ray68 HE Magnetic Keyboard features addressable RGB lighting with individually controlled LEDs. With a 500Hz refresh rate and Alpha channel integration, it delivers smooth, dynamic lighting effects while reducing visual flicker and fatigue.

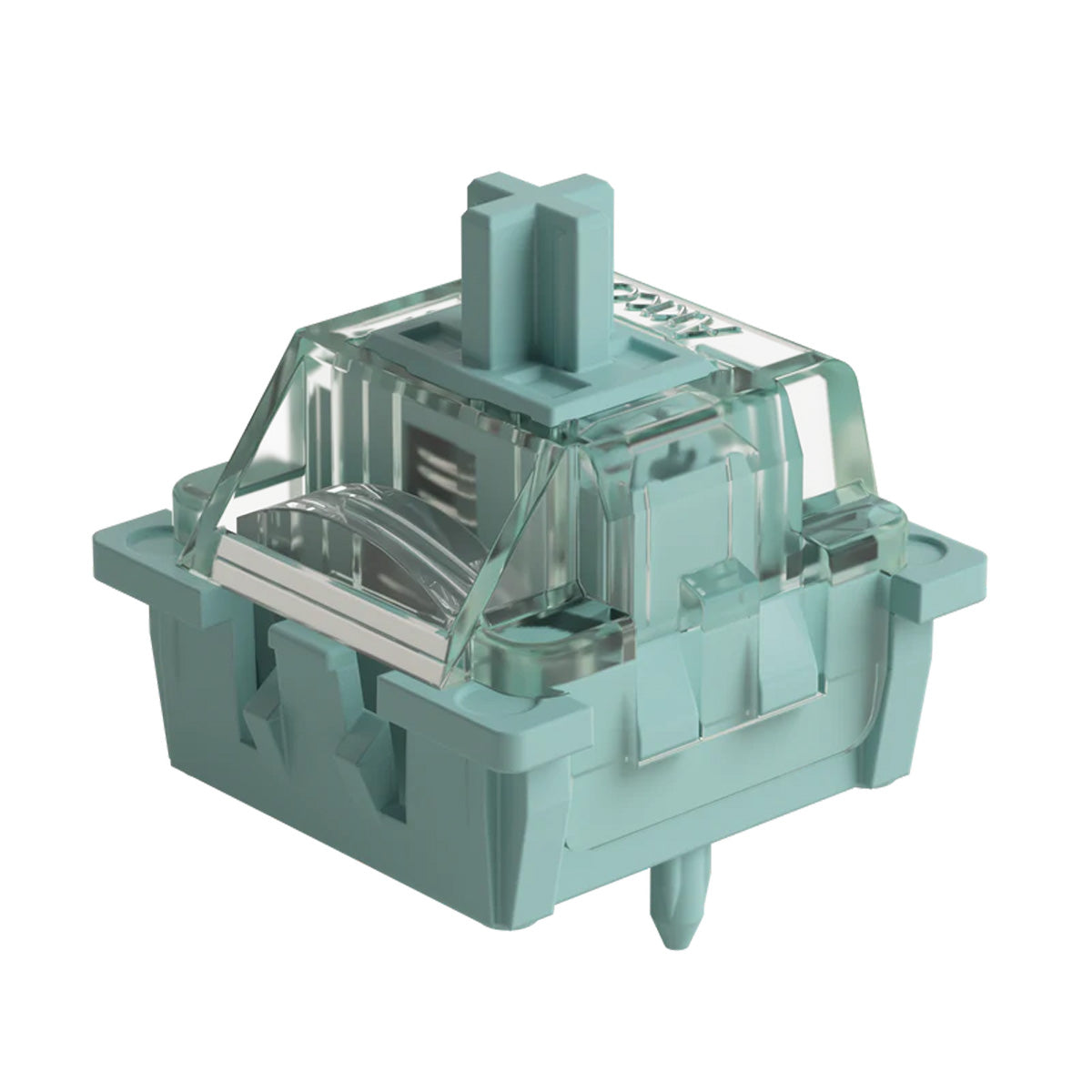

Akko AstroAim Magnetic Switch

The keyboard comes equipped with Akko AstroAim Magnetic Switches featuring a linear design, 3.5±0.1mm total travel, 35gf initial force, and 55gf end force. The PC/POM/PA66 construction and LED diffuser provide a smooth keystroke and enhanced lighting effects.

Snap Key

Snap Key is Akko’s SOCD implementation that prioritizes the latest input for faster directional shifts, ensuring smooth and responsive movement in FPS games.

Adjustable Actuation Distance

Magnetic switches allow users to adjust each key’s actuation point from 0.1mm to 3.4mm, offering flexible control for both gaming and typing preferences.

Rapid Trigger

Rapid Trigger technology removes actuation delay by activating and deactivating keys instantly with minimal movement, delivering faster input response in competitive gameplay.

Dynamic Keystrokes

Dynamic Keystrokes enable a single key to perform up to four actions. Different commands can be triggered based on press depth and release stages for advanced control.

Toggle Key

The Toggle Key function turns a key into a switch that can either hold a function or repeatedly trigger it at high speed.

Mod-Tap

Mod-Tap allows keys to perform dual functions, activating one action when tapped and another when held for greater convenience.

Built-in 8000mAh Battery

The high-capacity 8000mAh battery provides long-lasting usage for extended typing, gaming, and productivity without frequent charging.

Multi-Mode Connectivity

The Ray68 HE Magnetic Keyboard supports Bluetooth 5.0, multi-host 2.4GHz wireless (with receiver), and wired USB Type-C connections for easy switching between multiple devices.

Web & Cloud Driver

The web and cloud driver allows full customization of lighting effects, key functions, and macros, enabling users to personalize their keyboard settings easily.

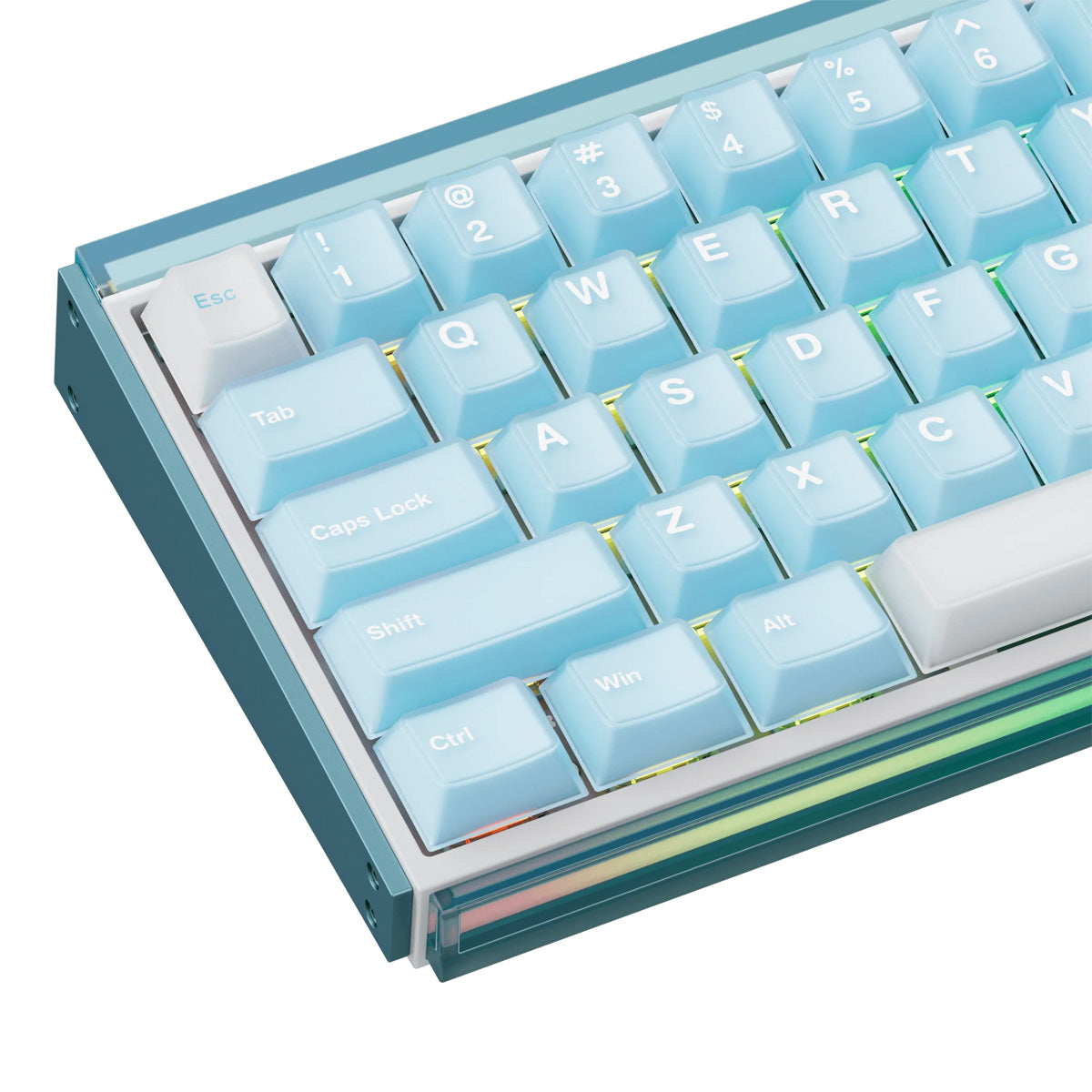

PC+ABS Keycaps

The keycaps are made from a durable blend of polycarbonate and ABS materials, combining the toughness of PC with the smooth texture of ABS for a balanced and refined typing experience.
