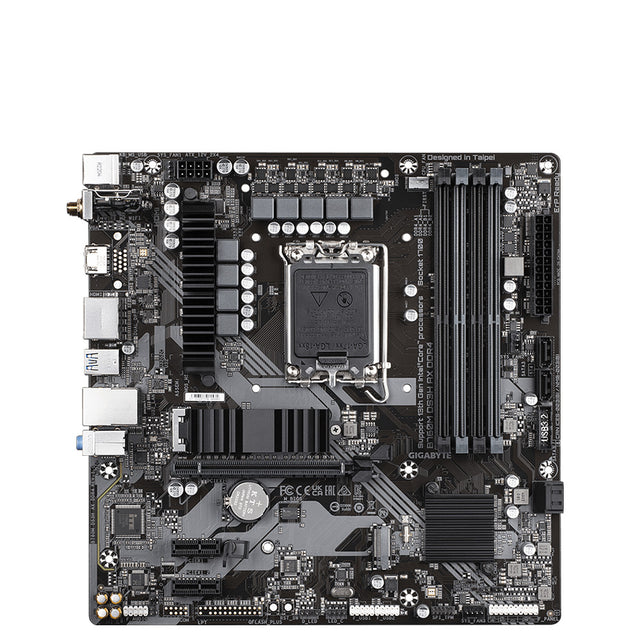

Gigabyte B760M DS3H AX DDR4 mATX Motherboard

6+2+1 Phases Hybrid Digital VRM Design

• 6+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation



PCIe 4.0 Design

GIGABYTE B760 Motherboards support PCIe 4.0 devices, offering triple the bandwidth of PCIe 3.0 devices. To achieve high speed and maintain signal integrity, GIGABYTE uses low impedance PCB for maximum performance.

• PCIe 4.0 x16 slot
• PCIe 4.0 M.2 slot
• 3.3x higher slot signal stability



Support for DDR4 XMP Up to 5333MHz and Beyond*

GIGABYTE offers a tested platform ensuring compatibility with profiles up to 5333MHz and beyond. Simply activate XMP on your GIGABYTE motherboard to unlock this performance boost.

GIGABYTE PerfDrive

PerfDrive technology integrates exclusive BIOS settings to balance performance, power consumption, and temperature easily when using 13th gen Intel® Core™ processors.

GIGABYTE Ultra-Efficient M.2 Thermal Guard

This thermal solution prevents throttling and bottlenecks by dissipating heat from high-speed M.2 SSDs, enhancing durability and performance.

Smart Fan 6

Smart Fan 6 offers unique cooling features to keep your gaming PC cool and quiet. Multiple fan headers support PWM/DC fans and pumps. Users can define fan curves based on various temperature sensors via an intuitive interface.

Cooling Features

• High Current Support: Each fan header supports PWM/DC fans and water cooling pumps up to 24W (12V x 2A) with over-current protection.
• Precision Control: Multiple temperature and fan speed control points for precise fan curves.
• Dual Curve Mode: Slope and Stair modes for different user scenarios.
• Fan Stop: Fans can stop completely below user-specified temperature points.



CONNECTIVITY

GIGABYTE motherboards deliver blazing data-transfer speeds through next-generation network, storage, and Wi-Fi connectivity.

802.11ax Wi-Fi 6E

Latest wireless solution with dedicated 6GHz band enables gigabit performance, smooth video streaming, better gaming, fewer dropped connections, and speeds up to 2.4Gbps*. Bluetooth 5 provides 4X range over BT 4.2 and faster transmission.

Benefits of Wi-Fi 6E

1. Dedicated spectrum in 6GHz band for less interference
2. 5.5X throughput compared to 802.11ac 1x1*
3. 4X better network capacity, avoiding traffic jams in dense device areas
4. Improved network efficiency for better user experience



Wi-Fi 6E Brings the Ultimate VR Experience!

Faster speeds, lower latency, and better battery life make streaming VR games wirelessly smoother and with higher video quality.

First adopter on 2.5GbE LAN onboard, 2X Faster than Ever

2.5G LAN provides up to 2.5 GbE connectivity, twice as fast as standard 1GbE, designed for ultimate online gaming. Supports Multi-Gig (10/100/1000/2500Mbps) RJ-45 Ethernet.

Connecting the Future - USB 3.2 Gen 2 Type-C®

USB Type-C® reversible connector supports USB 3.2 Gen 2 for 10Gbps data transfer. Powered by Intel® USB 3.2 Gen 2 controller for the best USB Type-C® experience.

Hi-Fi Audio

• High-End Audio Capacitors deliver high resolution and fidelity for realistic sound effects.
• Audio Noise Guard separates sensitive analog audio components from PCB noise pollution.



PERSONALIZATION

GIGABYTE motherboards include intuitive software for controlling motherboard features and customizable lighting effects to match your style.

UEFI BIOS

• Friendly User Interface: EASY MODE shows key hardware info (CPU clock, memory, storage, fan) on one page.
• My Favorites: Quickly access frequently used settings.
• Storage Information: Displays SATA, PCIe, and M.2 info.
• Changelog: Review all changes before saving and exiting BIOS.
• Intuitive Load Line Curve: Visual graph for loadline calibration.



GIGABYTE Control Center

A unified software platform with an intuitive UI to control essential motherboard functions.

• Unified software for all GIGABYTE products
• Modularized control components for installed hardware
• Auto-update to keep system current



Multi-Key

• Multi-function reset button configurable in BIOS.
• RGB Switch: Turn off all motherboard lighting.
• Direct-To-BIOS: Boot directly to BIOS menu without keyboard input.
• Safe Mode: Boot BIOS safe mode to change options without losing other settings.



ULTRA DURABLE

• PCIe EZ-Latch: Easily unlock PCIe slot latch when removing graphics card.
• Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card. Download BIOS file (rename to gigabyte.bin) to USB, press Q-Flash Plus button, and update hassle-free.
