FiiO K5PRO ESS Desktop DAC Amp

Next-Generation DAC for unrivalled internals.

The K5 Pro ESS employs the flagship portable ESS DAC, the ES9038Q2M with more outstanding performance and richer audio details. Compared to the last gen, the distortion has reduced by 50%, the crosstalk for LO has increased by 6dB with greater channel separation, and the dynamic range has increased by 3dB.

768K and native DSD512 support

The XMOS XUF208 USB decoding chip equipped with the clock matching management system, allows decoding up to a sample rate of 768kHz and native DSD512.

Both Co-axial and Digital inputs are present.

No matter what audio equipment you use, digital audio inherently has advantages in the integrity and fidelity of signals transmitted. The K5 Pro allows you to take advantage of digital audio with optical and coaxial inputs supporting up to 96kHz inputs, convenient for connecting various music players and digital interfaces.

Specially Designed Audio Architecture, True High-fidelity Sound

When it comes to amplification, the K5 Pro ESS is no slouch. The K5 Pro ESS has generous space to fit and package the necessary components for exceptional analogue amplification and packs a four-level audio circuit capable of providing extraordinary audio fidelity in its class: second-order LPF + analogue volume adjustment + voltage amplification + current drive. Each part of the amplification circuit works perfectly together in harmony for excellent dynamic range and high resolution of sound.

Safe, secure and robust external power supply

The K5 Pro ESS uses a DC 15V power supply designed to specifically minimize noise. The incoming DC power is filtered with a secondary power supply, which then independently supplies power to the amplification part of the audio circuit and the rest of the circuit. This effectively suppresses power supply ripple and minimizes power supply crosstalk between the two major sections of the circuit, for a more stable and less noisy power that is crucial for outstanding sound for such a precisely-designed high-performance audio architecture.

Accurate volume adjustment, Impeccable detail

Through reconstruction of the ADC curve, the K5 Pro ESS’s volume control allows you to smoothly adjust the volume at extremely fine increments without any undesirable noise or any channel imbalances. With the K5 Pro ESS, you can comfortably use various headphones with all kinds of sensitivities.

3 Gain levels for unlimited possibilities

Both the input selection and gain are controlled by tactile toggle switches, which are clearly labelled allowing you to easily control your music. Low, medium, and high gain levels are available allowing you to use the K5 Pro ESS with almost any headphone at comfortable volume levels. A hardware gain circuit is used at low gain, with unaffected and uncompromised dynamic range and overall music fidelity.

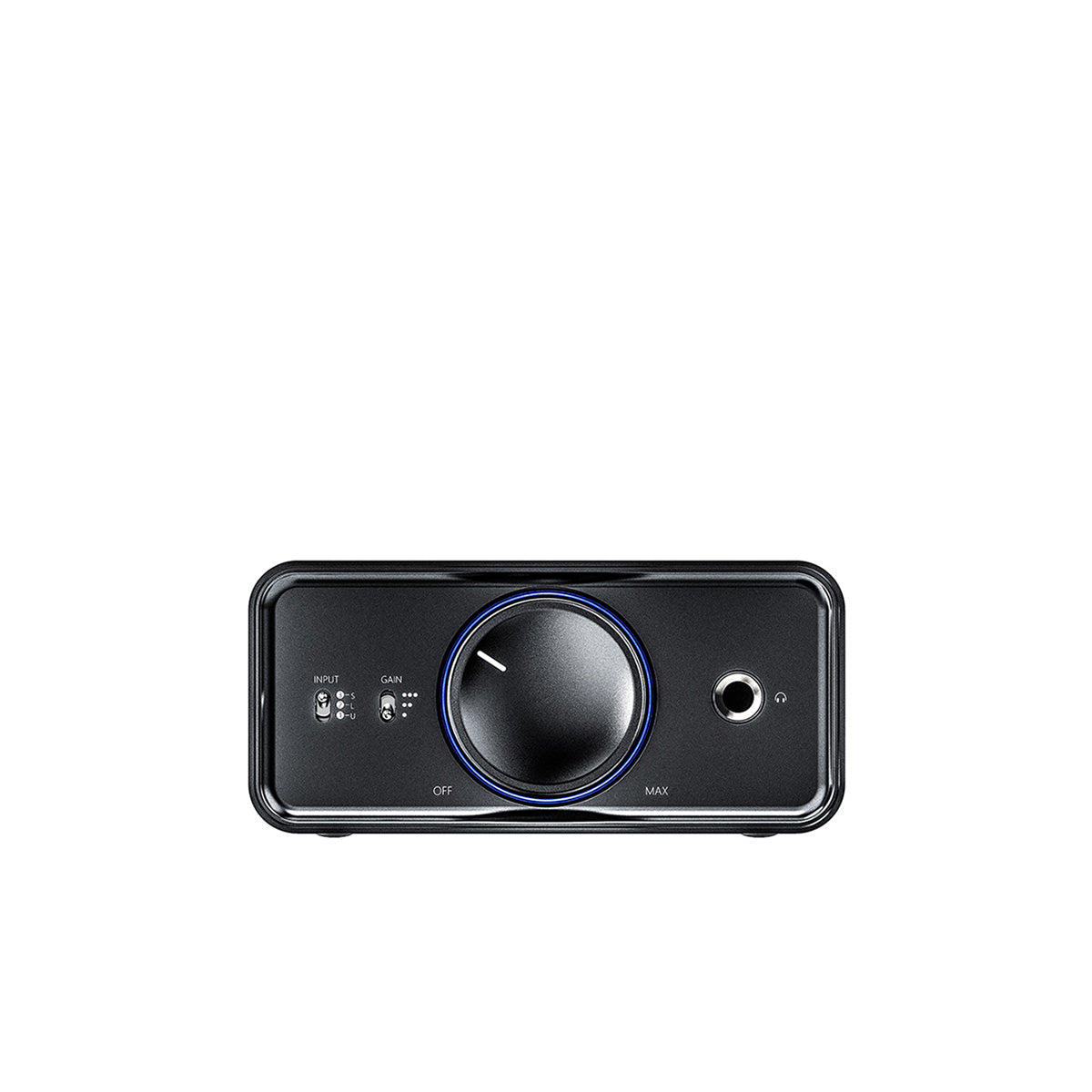

Getting precise with toggle switches

Both the input selection and gain are controlled by tactile toggle switches, which are clearly labelled allowing you to  easily control your music.

Extremely Powerful Headphone Amplification

The carefully-tuned feedforward amplifier circuit design increases the power output of the TPA6120 op-amp by more than 60%, for a total power output of up to 1.5 W under a 32Ω load, and up to 20Vpp at 300Ω. The K5 Pro ESS easily handles any low or high impedance headphones.

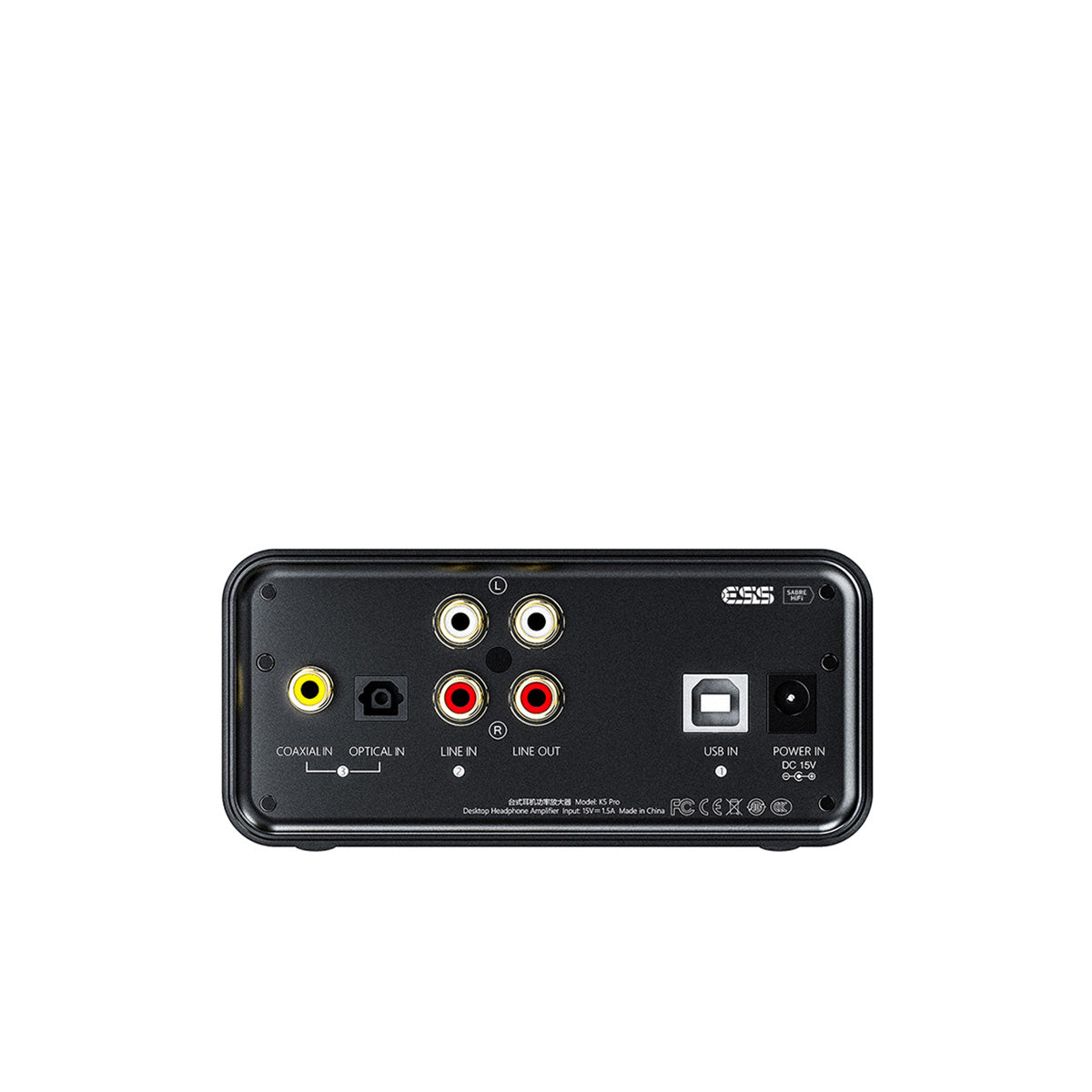

RCA Line out for high-quality output

Besides the wide variety of digital inputs, the K5 Pro also features a traditional analogue RCA line-in. RCA line-in is not only more robust and less prone to breakage than 3.5mm line-in, but it also has better resolution. The RCA line-out line signal is adjustable up to a maximum of 2Vrms, so the K5  Pro ESS can be used with a variety of active speakers and external amplifiers.
