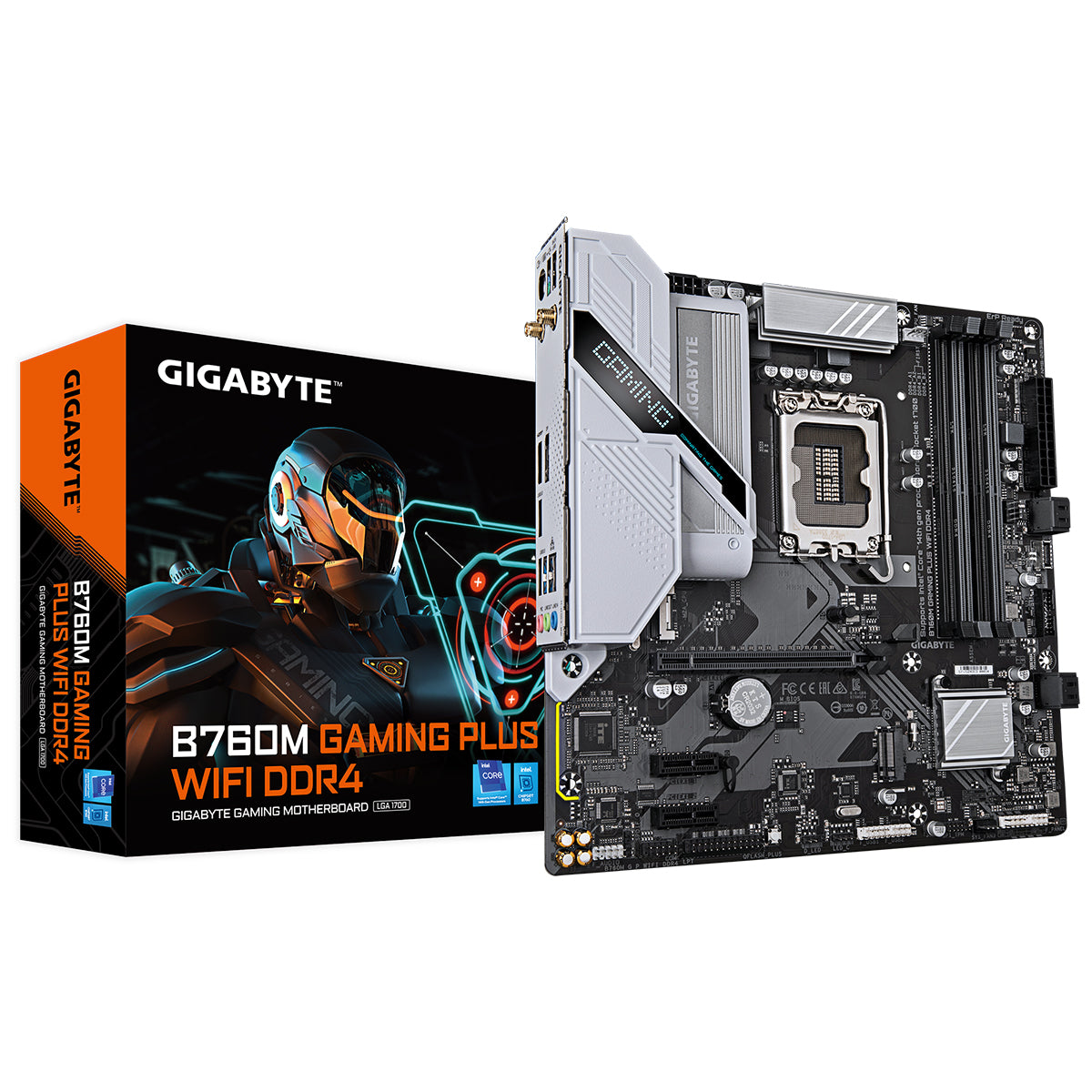

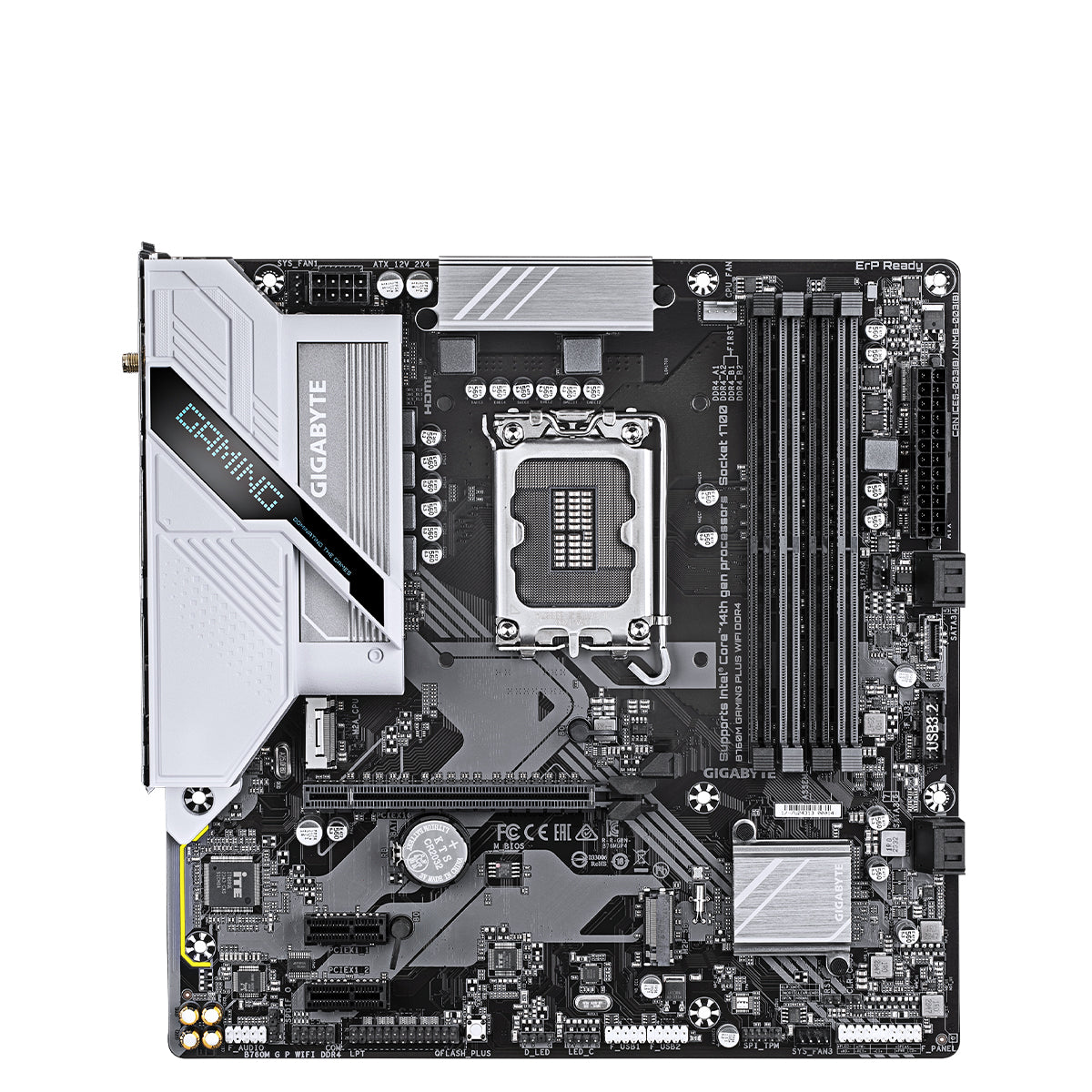

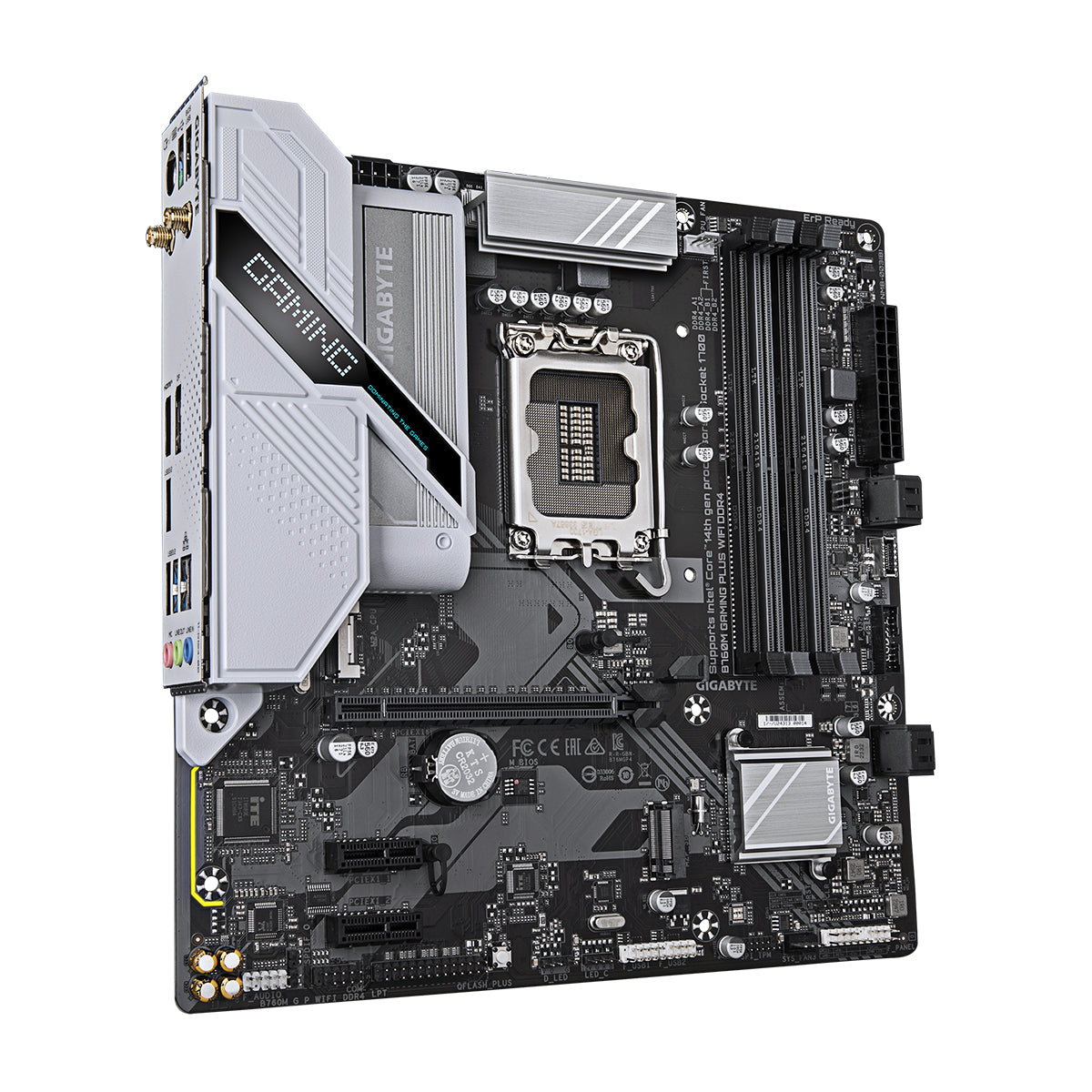

Gigabyte B760M GAMING PLUS WIFI DDR4 mATX Motherboard
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
B760M GAMING PLUS WIFI DDR4
Supports Intel® Core™ 14th/13th/12th processors
Unparalleled Performance
Hybrid 4+1+1 Phases Digital VRM Solution
Dual Channel DDR4
4 DIMMs with XMP Memory Module Support
Next Generation Storage
2 PCIe 4.0 x4 M.2 Connectors
Fast Networks
Wi-Fi 6 802.11ax, GbE LAN
Extended Connectivity
Front USB-C® 5Gb/s, DisplayPort (DP), HDMI
Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus
Update BIOS Without Installing the CPU, Memory, and Graphics Card
Specifications
Specifications
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel® B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.) to 2133 MT/s 4 x DDR4 DIMM sockets, up to 128 GB Dual channel architecture Support for ECC/Non-ECC Un-buffered DIMMs Support for Extreme Memory Profile (XMP) |
| Onboard Graphics | Intel® HD Graphics (CPU dependent) 1 x HDMI (4096x2160@60Hz) 1 x DisplayPort (4096x2304@60Hz) Supports triple-display |
| Audio | Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel Supports S/PDIF Out |
| LAN | Realtek® GbE LAN (1 Gbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE Wi-Fi a/b/g/n/ac/ax Bluetooth 5.3 Supports 11ax 160MHz |
| Expansion Slots | 1 x PCIe x16 (CPU, Gen4) 2 x PCIe x1 (Chipset, Gen3) |
| Storage | 1 x M.2 (CPU, PCIe 4.0 x4/x2) 1 x M.2 (Chipset, PCIe 4.0 x4/x2) 4 x SATA 6Gb/s RAID 0/1/5/10 support |
| USB | 1 x USB Type-C® (USB 3.2 Gen 1) 5 x USB 3.2 Gen 1 (3 rear, 2 internal) 2 x USB 2.0 (rear) 4 x USB 2.0 (internal via headers) |
| Internal I/O | 24-pin ATX + 8-pin ATX 12V 3 x system fan headers, 1 x CPU fan header 2 x M.2, 4 x SATA USB 3.2 Gen 1 header, USB-C header 2 x USB 2.0 headers RGB/Addressable LED headers Front panel, audio, TPM, serial, parallel, S/PDIF headers Q-Flash Plus, Reset, Clear CMOS jumper |

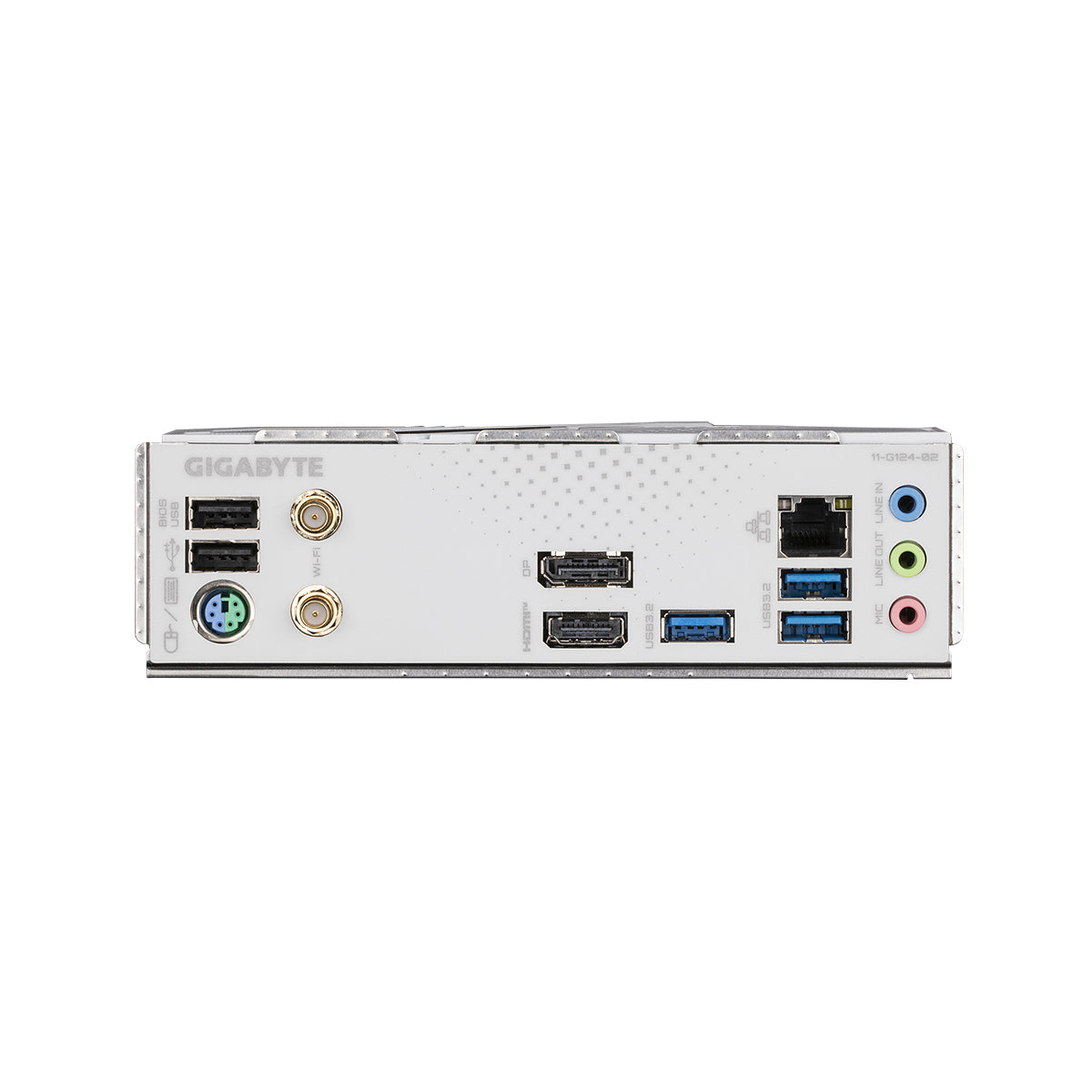

| Back Panel | 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x HDMI, 1 x DisplayPort 1 x RJ-45 LAN 3 x Audio jacks 2 x SMA antenna connectors 1 x PS/2 combo port |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, and fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (fan dependent) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
